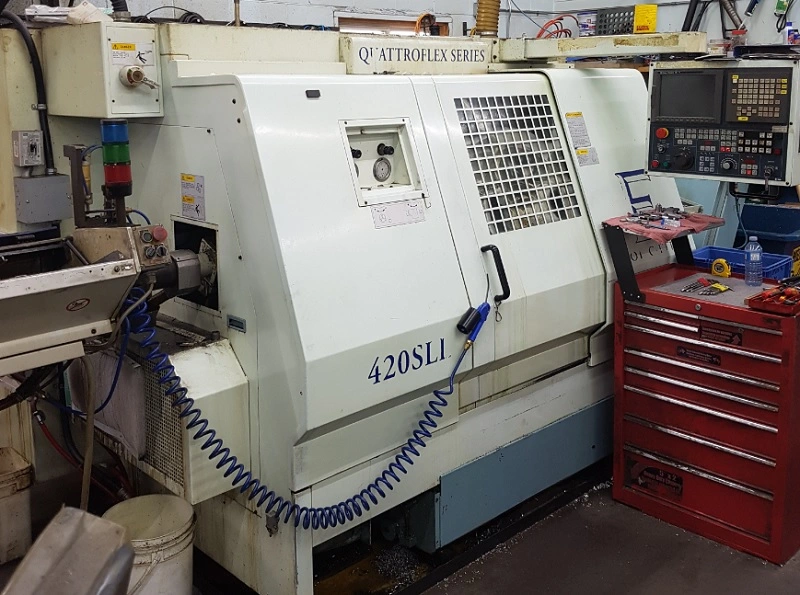

USED 1999 EUROTECH 420SLL

Control: Fanuc 18iT
Main Spindle Bar Capacity: Ø 1” 5/8
Max. Cut Diameter (Spindle 1): Ø 7.87”
Max. Cut Diameter (Spindle 2): Ø 6.3"
Max. Turn Length (Main): 11.81”
Max. Turn Length (Sub-Spindle): 7.87"
Spindle Speeds (Main & Sub-Spindle): 5,000 RPM
Max. Live Tool Speed: 4,000 RPM
Spindle Motor / Sub-Spindle / Rotary: 20HP / 10 HP / 5 HP
Spindle Indexing (Main & Sub): 0.001 Deg.
Number of Tool Positions (Upper/Lower): 6/12
Number of Live Positions (Upper/Lower): 6 /12

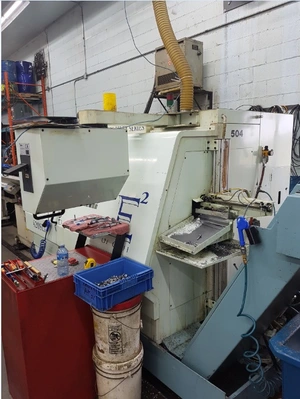

Lemca Boss-542, 12’ Magazine Bar Feeder
Parts Ejector

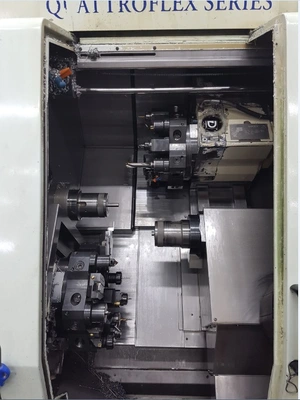

Twin Spindle

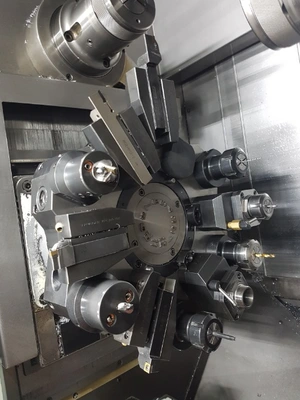

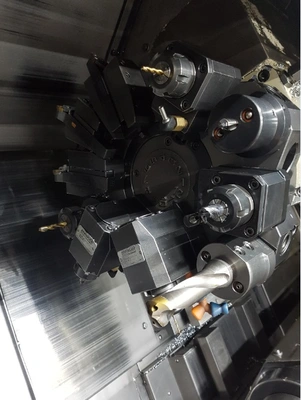

Live Tooling
B42 collet system Main and Sub-Spindles
Sub-Spindle Air Blast

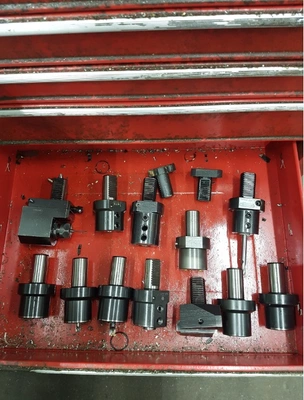

Tooling: 3no. X-axis Live Tool Holders and 4no. Z-axis Live Tool Holders
