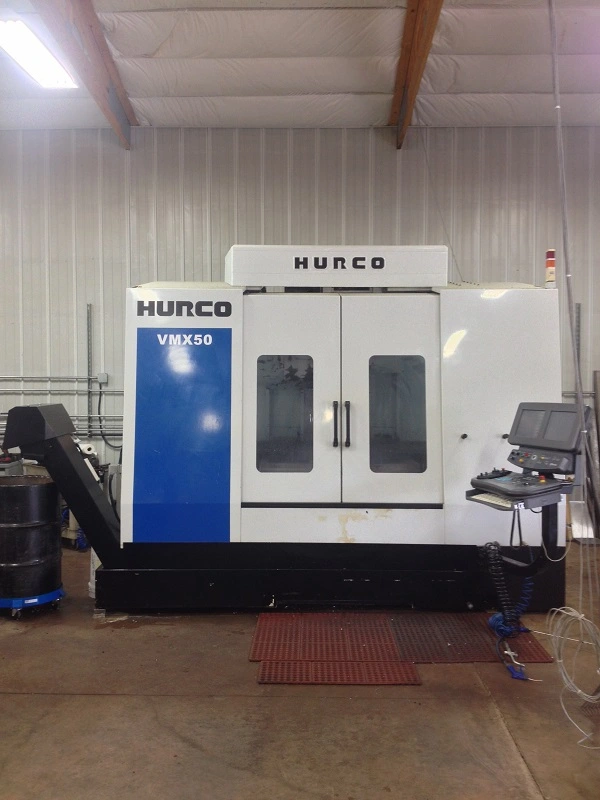

USED 2007 HURCO VMX50

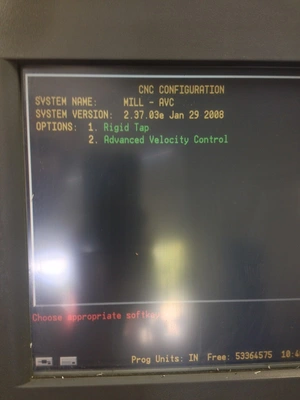

Control: Ultimax CNC
Table Size: 59” x 26”
Max Weight on Table: 3,000 lbs
Spindle Nose to Table: 6”
X-axis Travel: 50”
Y-axis Travel: 26”
Z-axis Travel: 24”
Rapid Traverse Rates XY / Z: 1,181 / 787 IPM
Spindle Taper: CAT 40
Spindle Speed: 10,000 RPM
Spindle Type: Belt-Driven
Spindle Drive Motor: 24 HP
Spindle Torque: 210 ft lbs @ 600 RPM
ATC Capacity: 24 Tools (Sidemount / Swing Arm)
Max Tool Diameter: 3.2” / 5” Adjacent
Max Tool Length: 11.8”
Max Tool Weight: 15 lbs
Machine Dimensions: 170” x 147” x 119”
Machine Weight: 18,000 lbs
Machine Voltage: 230V @ 30 KVA

Dual Screen Color Display
Flood Coolant System
Two Color Stack Light
Work Light
Waylube Lubrication Unit
Air Blow-Off Spray Gun
Coolant Wash-Down Spray Gun
Chip Conveyor
Rigid Tap
Advanced Velocity Control
