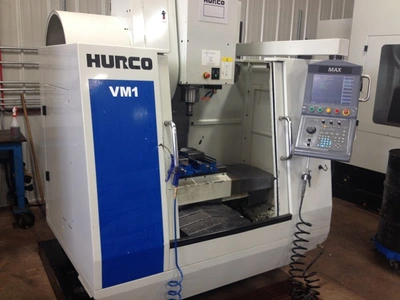

USED 2005 HURCO VM1

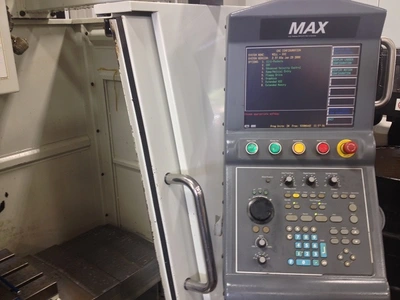

Control: MAX CNC
Table Size: 30” x 14”
Max Weight on Table: 750 lbs
Spindle Nose to Table: 4”
X-axis Travel: 26”
Y-axis Travel: 14”
Z-axis Travel: 18”
Rapid Traverse Rates XYZ: 945 IPM
Spindle Taper: CAT 40
Spindle Speed: 8,000 RPM
Spindle Drive Motor: 15 HP
Spindle Torque: 54 ft lbs @ 1450 RPM
ATC Capacity: 16 Tools (Sidemount / Swing Arm)
Max Tool Diameter: 3.5” / 5”
Max Tool Length: 9.8”
Max Tool Weight: 15 lbs
Machine Dimensions: 91” x 78” x 96”
Machine Weight: 7,000 lbs
Machine Voltage: 230V @ 15 KVA

Flood Coolant System
Two Color Stack Light
Work Light
Waylube Lubrication Unit
Air Blow-Off Spray Gun
Coolant Wash-Down Spray Gun
Cabinet Heat Exchanger
Ulti-Pockets
DXF File Transfer
Advanced Velocity Control
Ramp / Helical Entry
Floppy Drive
Graphics
Extended HDD
Extended Memory
