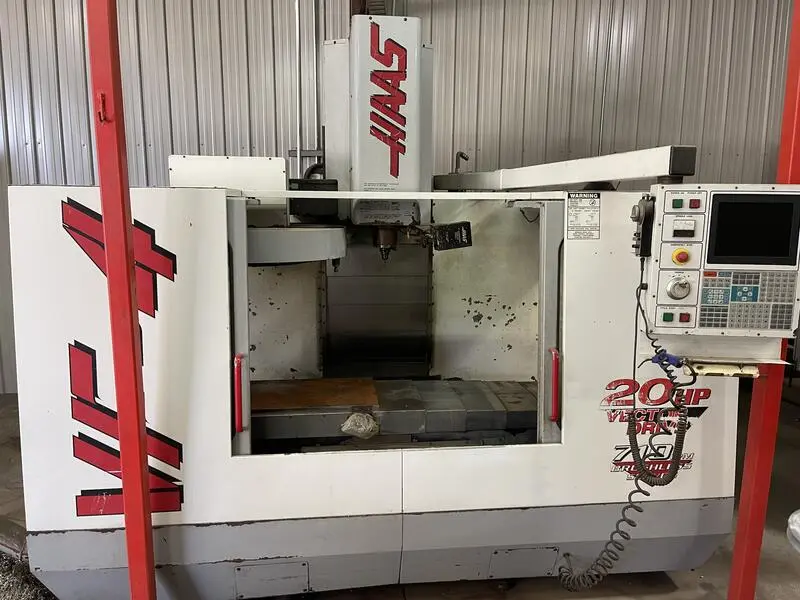

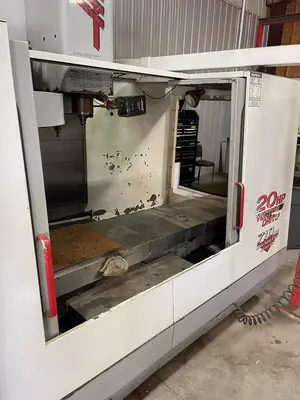

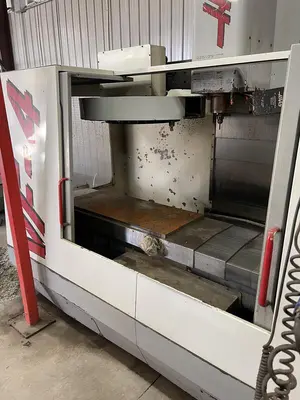

USED 1998 HAAS VF-4

Table Working Surface: 18" x 58"
Table Load Capacity: 1,500 LBS
Longitudinal Travel (X-Axis): 50"
Cross Travel (Y-Axis): 20"
Vertical Travel (Z-Axis): 25"
Maximum Clearance Table Top to Spindle Nose: 29"
Feed Rates, All Axes: 0 to 300 IPM
Rapid Traverse Rate, All Axes: 710 IPM
Tool Storage Capacity: 20
Spindle Horsepower: 20 HP
Spindle Speeds Range: 0-7500 RPM
Spindle Taper: No. 40 CAT (V-Flange)
Approximate Machine Dimensions: 124" x 118"
Approximate Machine Height: 119.5"
Approximate Machine Weight: 13,500 LBS

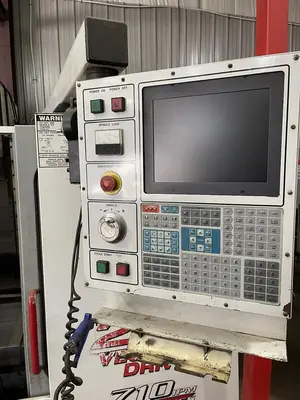

Haas CNC Control
Programmable Coolant
Chip Auger
