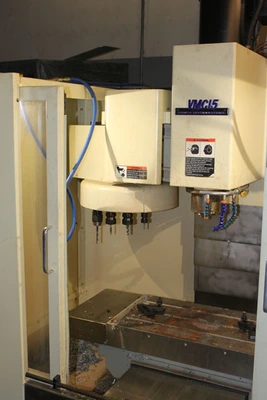

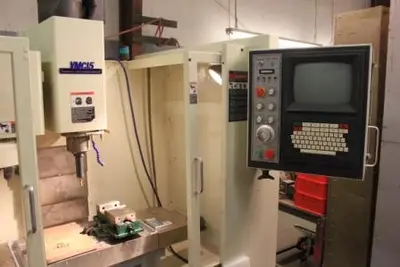

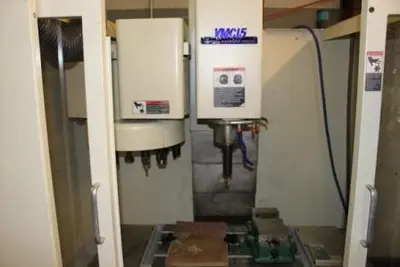

USED 1993 FADAL VMC15
Overview
Specs
Control: Fadal CNC 88HS
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 20"
Table Size: 29.5" x 16"
Spindle Taper: 40
Spindle Speed: 7,500 RPM
Spindle Motor: 15 HP
Tool Capacity: 16 ATC
Machine Dimensions: 85"L x 74"W x 96"H
Machine Weight: 8,500 LBS
Equipped With
New X and Y linear ways and bearings
way covers re-plated with nickel
All sheet metal epoxy painted
New 15HP totally enclosed Baldor motor and encoder installed

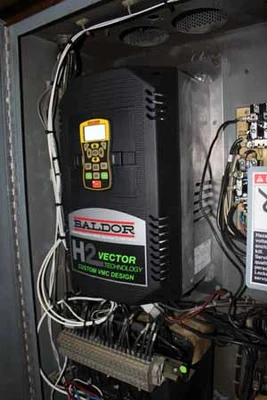

new Baldor vector drive installed

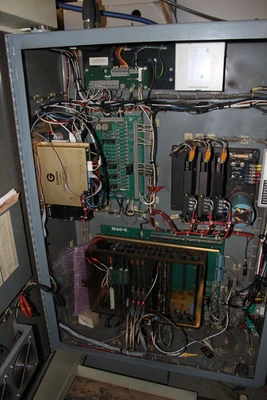

Machine upgraded to System 97 and more RAM installed
Calmotion USB port installed on pendant for file transfer or drip feeding
7500 RPM spindle
rigid tap
Calmotion 4th axis wired

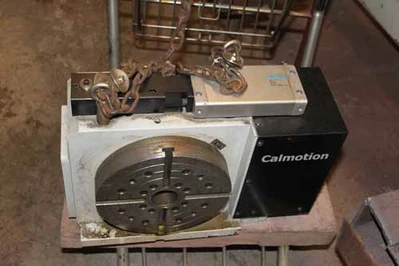

Calmotion VH 250 rotary table installed
Renshaw OMP40 probe and pickup and receiver (machine not currently wired for it)
