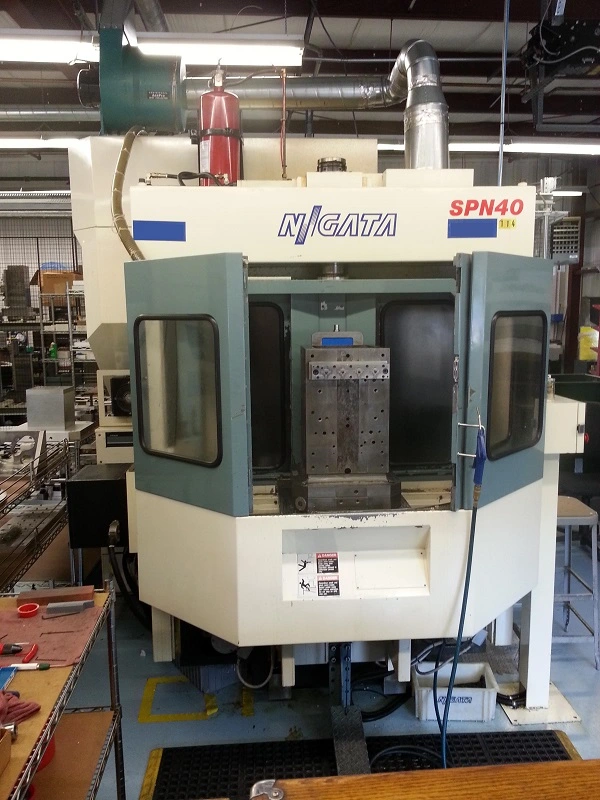

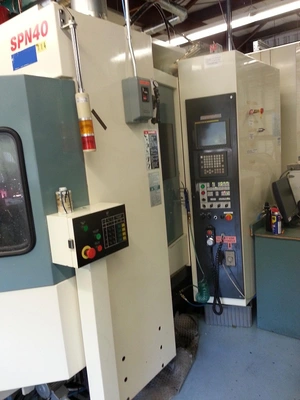

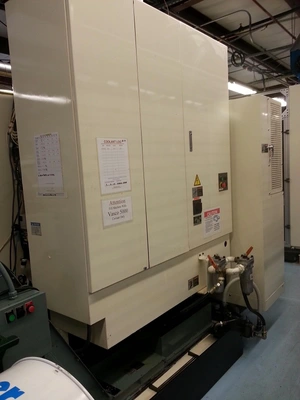

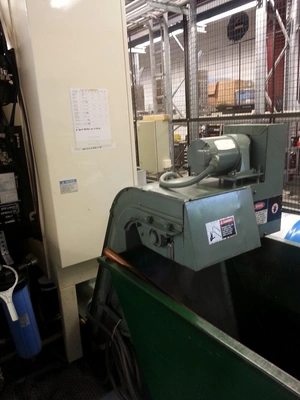

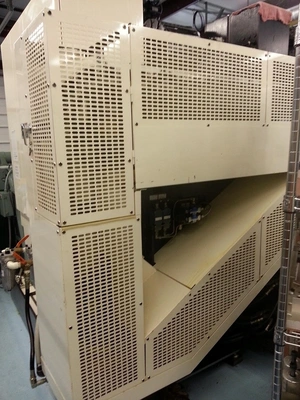

USED 2000 NIIGATA SPN40

Control: Fanuc 16i
X-Axis Travel: 23.6"
Y-Axis Travel: 22.8"
Z-Axis Travel: 22.0"
Number of Pallets: 2
Pallet Size: 15.75" x 15.75"
Max Pallet Load: 880 Lbs
Spindle Drive Motor: 30 HP
Spindle Taper: BT 40
Spindle Speed: 12,000 RPM
Tool Capacity: 60 ATC
Machine Dimensions: 173"L x 86"W x 104"H
Approx Weight 21,000 Lbs

Coolant Thru the Spindle
4 Face Machining Option
High Speed Machining
Big Plus Spindle
