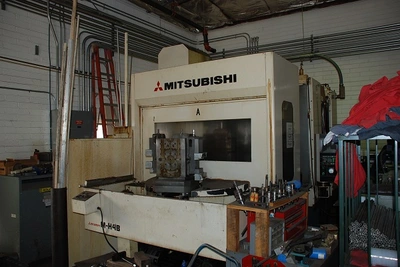

USED 1997 MITSUBISHI M-H4B

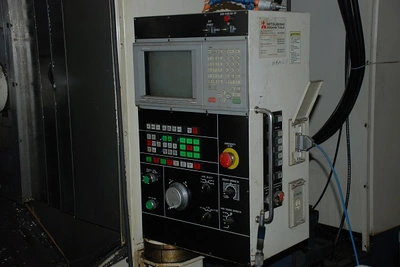

Control: Mitsubishi Meldas 500
X-Axis Travel: 25.6"
Y-Axis Travel: 22"
Z-Axis Travel: 25.3"
Number of Pallets: 2
Pallet Size: 15.75" x 15.75"
Max Pallet Load: 880 LBS
Spindle Taper: CAT 40
Spindle Speed: 8,000 RPM
Spindle Motor: 30 HP
Tool Capacity: 60 ATC
Machine Dimensions: 195"L x 130"W x 120"L
Machine Weight: 23,000 LBS

Full 4th Axis
Chip Auger
Chip Conveyor
RS-232 Port Interface
