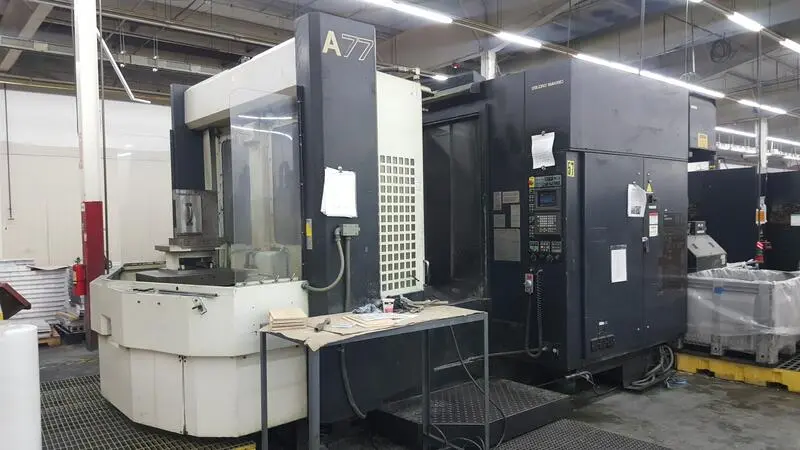

USED 1999 MAKINO A77

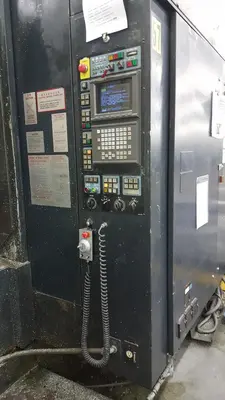

Control: Professional 3 (Fanuc 18M)
X-Axis Travel: 31.5"
Y-Axis Travel: 29.5"
Z-Axis Travel: 31.5"
Pallets, Number of: 2
Pallets Size: 24.8" x 24.8"
Pallets Load: 2,000 LBS
Spindle Taper: CAT 50
Spindle Motor: 40 HP
Spindle Speed: 6,000 RPM

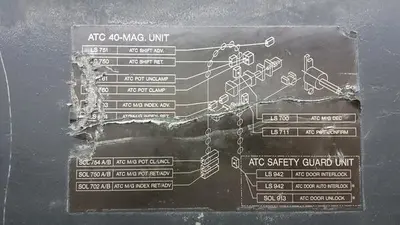

Tool Changer Capacity: 40 ATC
Machine Dimensions: 253"x 143"x 126"
Machine Weight: 40,000 LBS

Coolant Thru Spindle

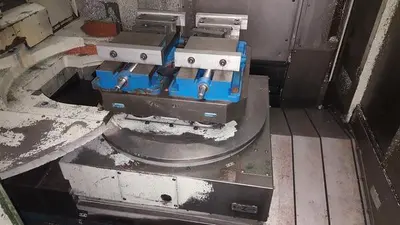

(2) Tombstones
(50) Extra CAT 50 Tool Holders
**Brand New Spindle Installed 2016**
