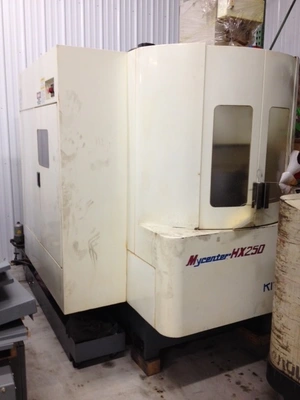

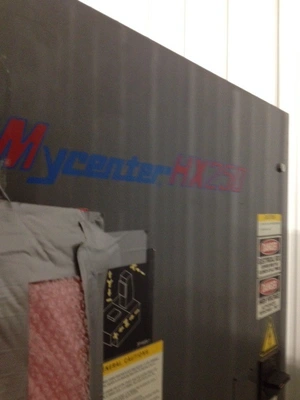

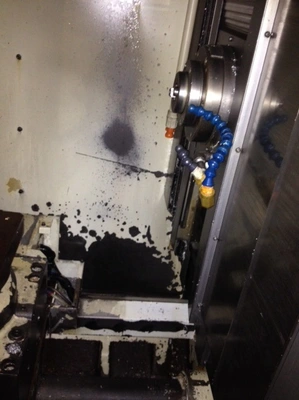

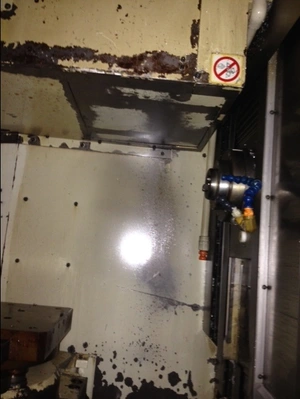

USED 1999 KITAMURA MYCENTER-HX250

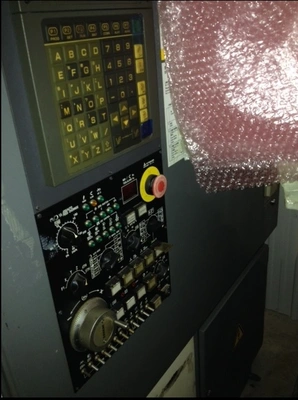

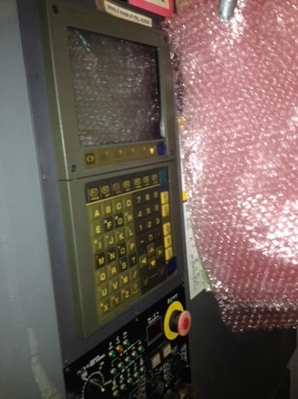

Control: Yasnac i80 MB
X Axis Travel: 12"
Y Axis Travel: 12"
Z Axis Travel: 13"

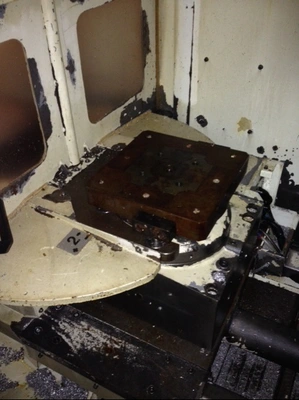

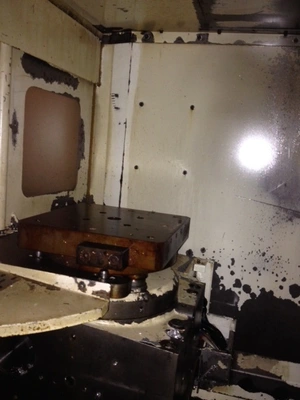

Number of Pallets: 2
Pallet Size: 10" x 10"
Pallet Index: 360.000 DEG

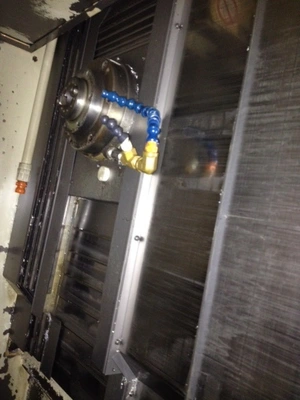

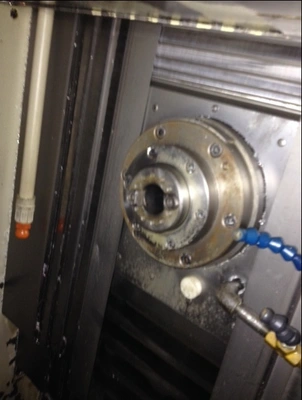

Spindle Taper: BT 30
Spindle Speed: 15,000 RPM
Tool Capacity: 24 ATC
Machine Dimensions: 112"L x 65"W x 78"H
Machine Weight: 9,100 LBS

Coolant Thru Spindle (220 psi)
Full 4th Axis
Caterpillar Type Chip Conveyor
2 Station APC Front Mount
Additional M Function 4 Sets
Fully Enclose Splash Guards
Rigid Tapping
1574 IPM Rapids on X, Y, Z
Shower Coolant
320 M Memory
54 pcs. Work Coordinate Offsets
99 pcs. Tool Offsets
Coordinate System Rotation
Automatic Corner Override
Helical Interpolation
Single Direction Positioning
User Macro 110 Variables
GHSC Hi-Feed Function
