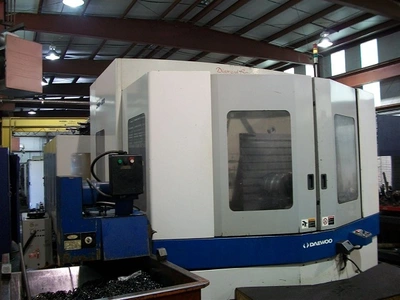

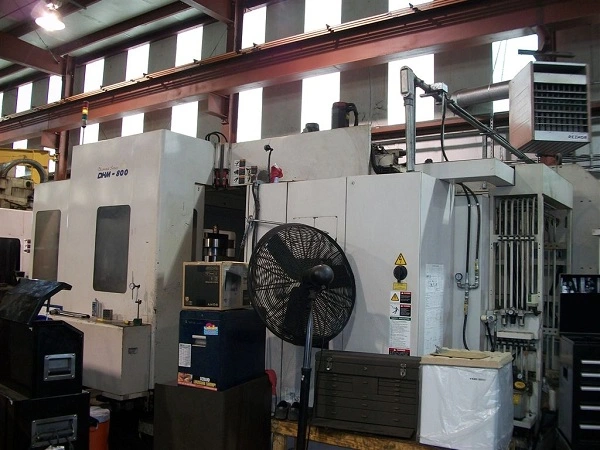

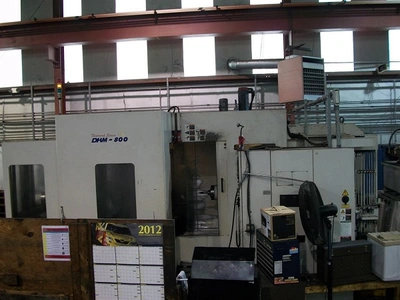

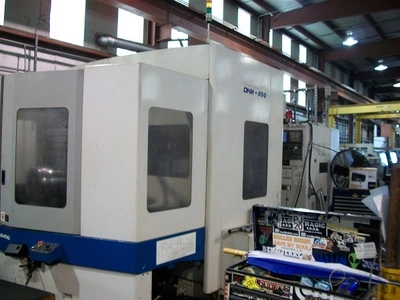

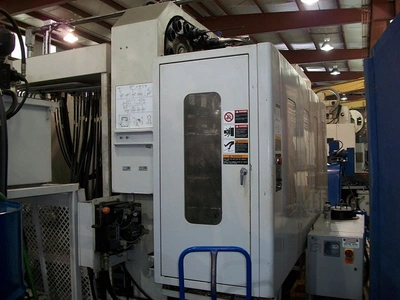

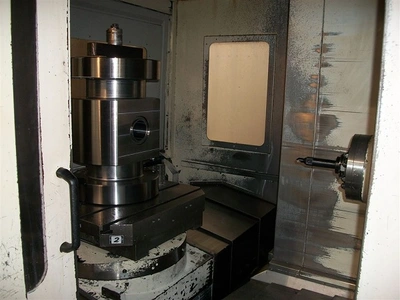

USED 2003 DAEWOO DHM-800

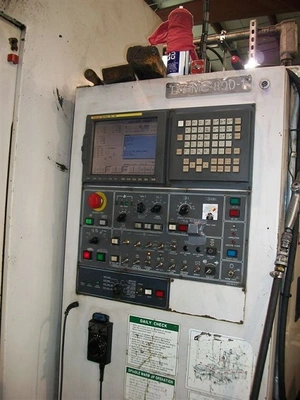

Control: FANUC 16i-MA
Pallet Size: 31.5" (2)
X-Axis Travel: 49.2"
Y-Axis Travel: 39.4"
Z-Axis Travel: 39.4"
Pallet Index: .001 Degrees

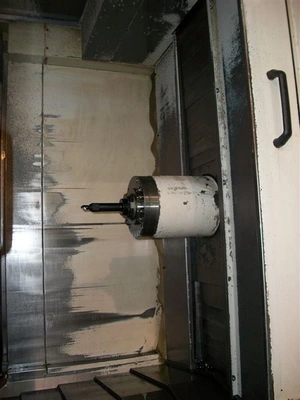

Spindle Speed: 6000 RPM
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Spindle Torque: 1237 ft. lbs.
Spindle Center to Table Top: 3" - 42.3"
Spindle Nose to Table Center: 7.9" - 47.2"
Tools Capacity: 90 ATC
Rapid Traverse Rates (X, Y & Z): 945 IPM
Tool Change Time (T - T / C - C): 2.5 / 9.0 Seconds
Pallet Change Time: 29 Seconds
Pallet Load Capacity: 3520 lbs.
Max Tool Diameter: 5.3" / 9.8"
Max Tool Length: 21.7"
Max Tool Weight: 57 lbs.
Machine Dimensions (L x W x H): 278" x 165.4" x 131.1"
Machine Weight: 39,683 lbs.

Rigid Tapping

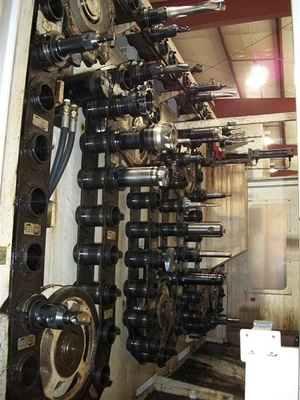

90 Tool Magazine

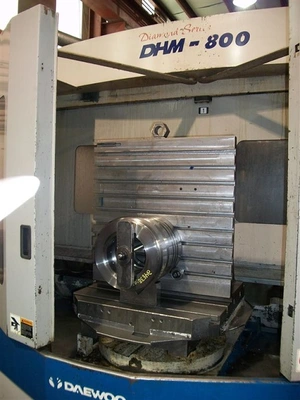

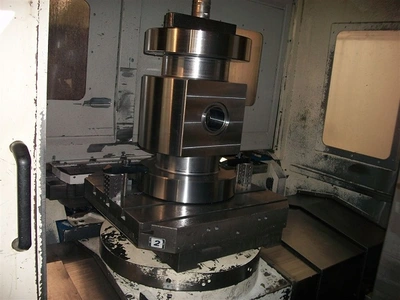

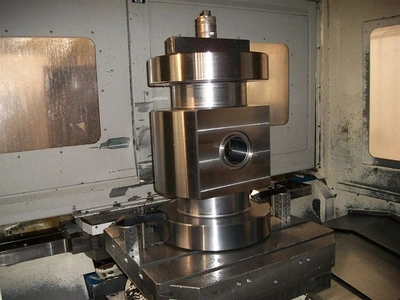

Fourth Axis Rotary Pallets
Coolant Thru Spindle (1000 psi)
Turbo Chip Conveyor (Front Left Exit)

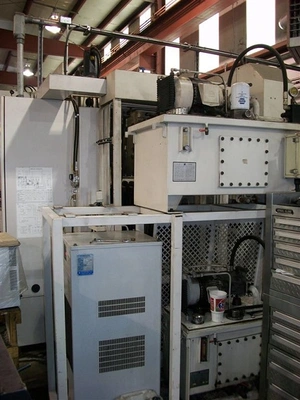

Spindle Chiller Unit
Remote Manual Pulse Generator
Three Color Tower Light
Heavy Duty Box Way Construction
