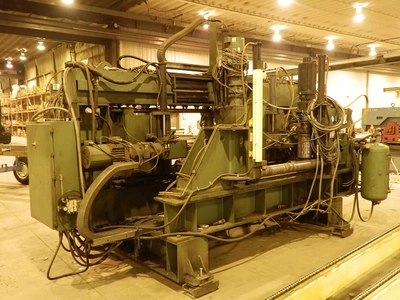

USED 1989 FRANKLIN HD-145

Control: Dell Optiplex 330 (PC Based)
Number of Spindles: 3
Maximum beam width: 40” WF
Beam feed rate in X-Axis (maximum): 100 FPM
Rapid Advance (Web): 420 IPM
Rapid Advance (Flanges): 420 IPM
Retract speed (Web and Flanges): 420 IPM
Spindle motors (AC Variable): 10 HP
Motor capacities (Hydraulic): 3 @ 12 HP
Drill feed rates (CNC controlled & monitored): 0-30” IPM
Drill speeds: 0-1,800 RPM
Drill capacity (Web): 1-9/16” (#4 Morse)
Drill capacity (Flanges): 1-9/16” (#4 Morse)

PC Based CNC Control (2006 Upgrade)
Thru Spindle Coolant
Linear Transducer Position Feed Back
Self Adjusting Side Clamps
20 HP Hyd Power Unit
