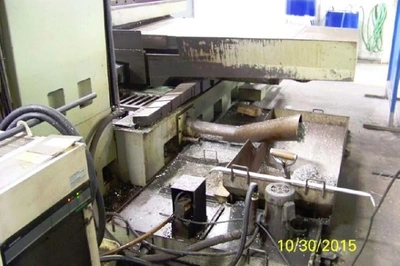

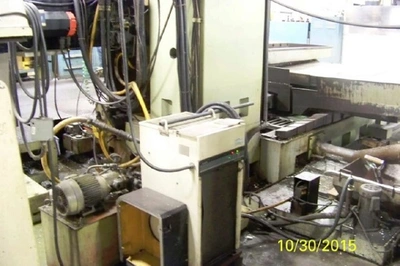

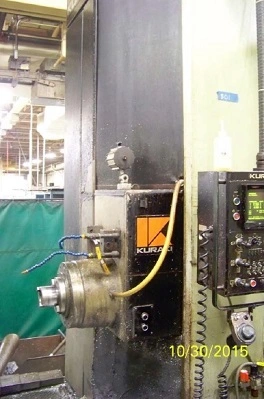

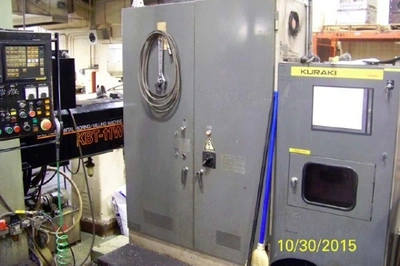

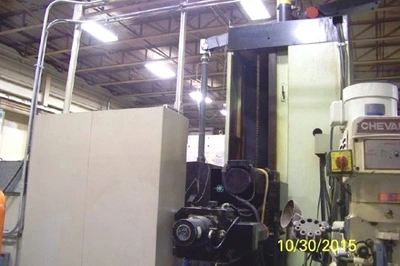

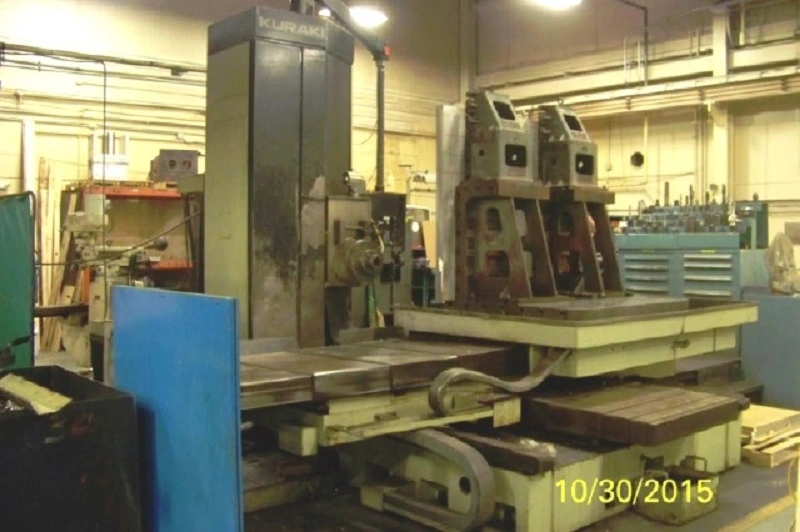

USED 1986 KURAKI KBT-11WDX

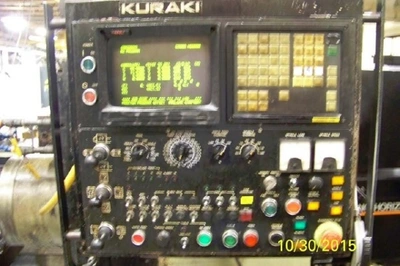

Control: Fanuc 11M
Spindle Diameter: 4.33"
Spindle Taper: CAT 50
Spindle Speed: 13,000 RPM
Spindle Motor: 20 HP
X Axis Travel (Table Cross): 78"
Y Axis Travel (Vertical Collumn): 59"
Z Axis Travel (Saddle): 57"
W Axis Travel (Spindle): 25.5"
Table Size: 55" x 63"
Table Load Capacity: 11,000 LBS
Machine Dimensions: 226"L x 192"W x 173"H
Machine Weight: 55,000 LBS

Rotary Table w/90 Degree Shot Pins
Spindle Orientation
Misc. Extra Tooling
