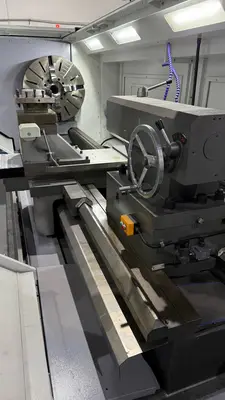

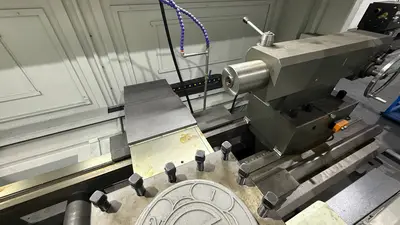

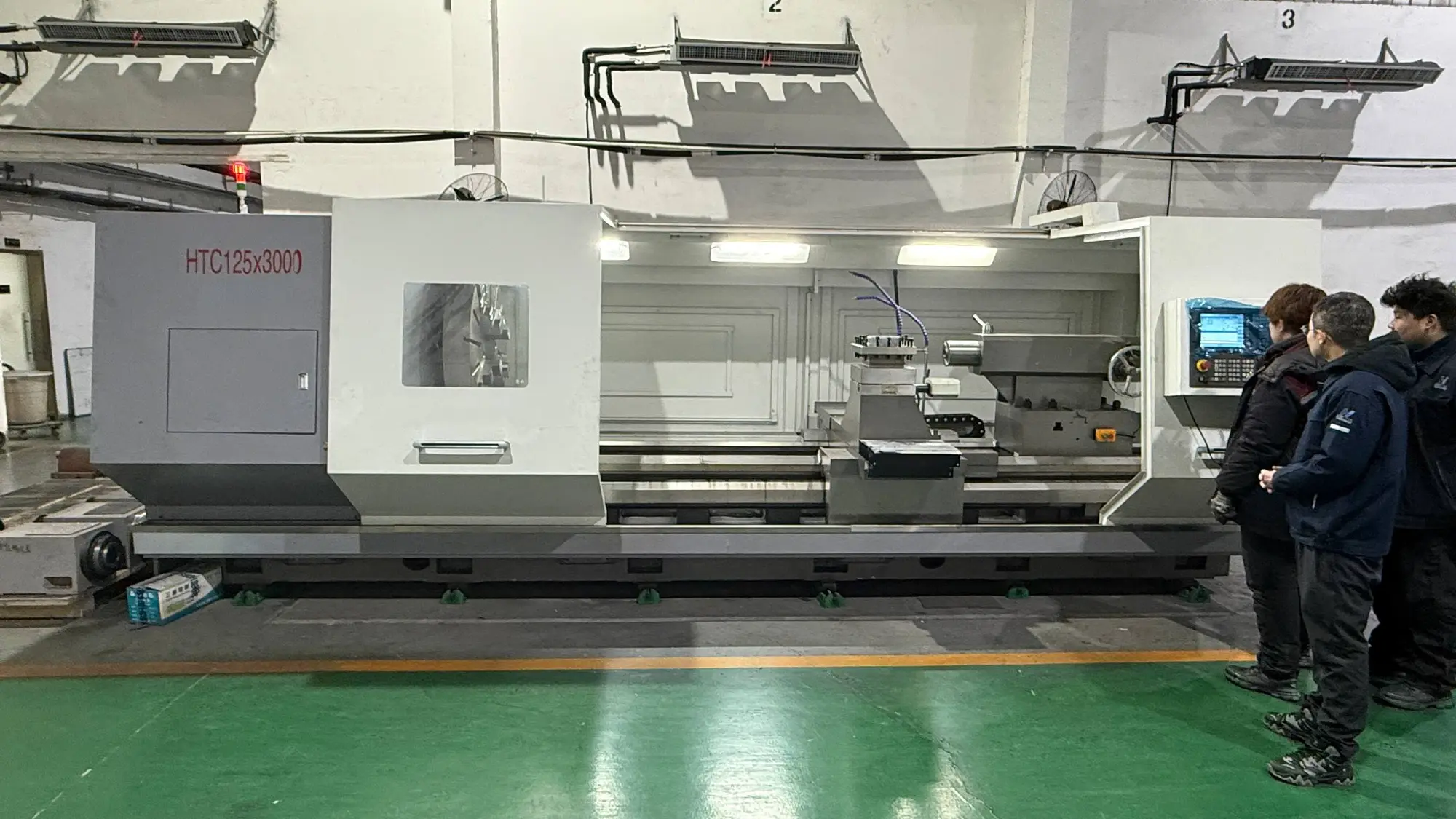

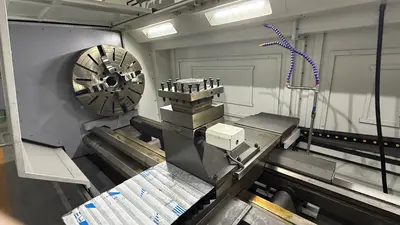

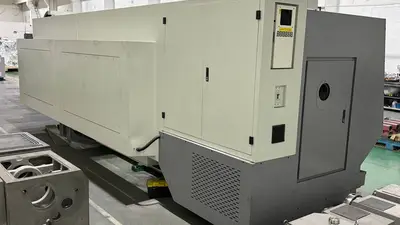

HTC125x3000 Heavy-Duty CNC Lathe

Pre-order offer: regular price $149,900, special pre-order price
$99,900.
Big shafts, big rolls, no problem – this HTC125x3000 flat-bed CNC lathe handles up to 1250 mm swing and 3 m turning length with ease.
Siemens 828D control, 22 kW spindle, 1000 mm 4-jaw chuck and steady/follow rests make it ideal for roll and shaft work.
Great option for repair shops, steel service and production plants in Canada looking for serious turning capacity – contact us for pre-order details.

Specification

Machine: Heavy-Duty CNC Lathe
Model / Type: HTC125x3000 flat-bed CNC roller/shaft turning lathe

Capacity
Max swing over bed: 1250 mm (49.2")
Max swing over cross slide: 820 mm (32.3")
Max turning length: 3000 mm (118.1")
Distance between centres: 2900 mm (114.2")

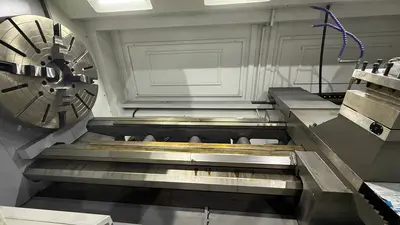

Bed and guideways
Bed type: one-piece flat-bed
Bed width: 755 mm
Guideways: hardened and ground V and flat slideways

Spindle
Spindle bore: 130 mm (5.12")

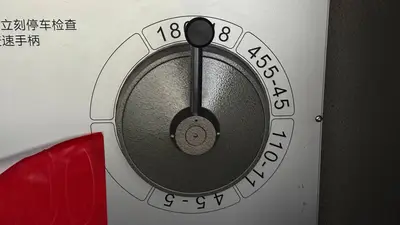

Spindle speed range: 5 – 500 rpm, geared headstock with hydraulic range change
Main spindle motor power: 22 kW AC inverter motor (approx. 30 hp)

Axes and feeds
Controlled axes: X and Z
X-axis travel: 530 mm (20.9")
Z-axis travel: 3000 mm (118.1")
Rapid traverse X: 5000 mm/min
Rapid traverse Z: 6000 mm/min
Minimum programming increment: 0.001 mm

Turret and tooling

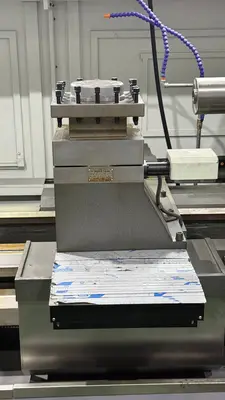

Turret type: vertical automatic turret
Number of stations: 4

Workholding and supports

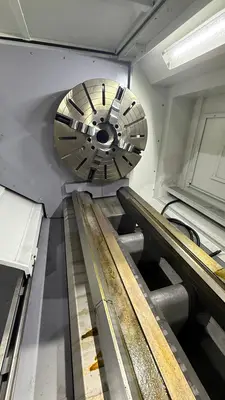

Standard chuck: 1000 mm (39.4") 4-jaw manual chuck
Steady rest capacity: 50 – 300 mm
Follow rest capacity: 50 – 180 mm

Tailstock
Tailstock type: heavy-duty manual tailstock
Tailstock quill diameter: 160 mm (6.30")
Tailstock taper: MT6

CNC and drive system
CNC control: Siemens 828D
Axis drives: Siemens AC servo motors
Axis transmission: precision ball screws on X and Z axes

Coolant and lubrication
Coolant system: integrated coolant tank and pump, external coolant to cutting area
Lubrication system: centralized automatic lubrication for guideways and ball screws

Machine size and weight
Approx. machine dimensions (L × W × H): 6846 × 2620 × 2120 mm
Approx. machine weight: 14 000 kg

Electrical
Power supply: 380 V, 3-phase, 50 Hz

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
