New GoldPro® Durston Floor Standing 130mm Double Sided Power Rolling Mill

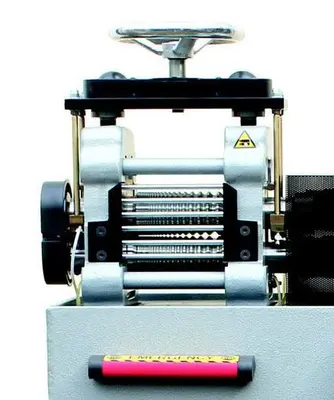

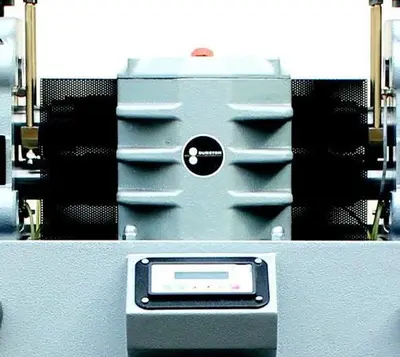

Durston is the market leader in precision rolling mills and no wonder; the FSM 130 Double-Sided Powered Rolling Mill is constructed from cast iron for optimal strength and rigidity. This mill is a floor standing mill and has lubrication on the roll bearings. The 1.1 KW motor is sturdy enough for continuous operation, which is why Durston mills have such a long working life. This versatile package has variable speeds with forward and reverse and a highly efficient near silent operation. The rolls are specially induction hardened to 64 RC (the right barrel provides a large flat rolling service of 130mm on rollers with a diameter of 65mm, offering a maximum roll thickness of 6mm) ensuring your rolls last a lifetime. The right-hand barrels are dedicated to square wire forming and offer 19 grooves ranging from 7mm to 1mm. A set of extension rollers provide a total of four half-rounds; 4, 3, 2 and 1.5mm. Optional extras include digital roll gap meter and work lights.
Technical Details:
Available Ex-Factory, UK
Priced for: $24,570.00 USD
Note: Price Subject to Change Without Notice

WEIGHT: 490 kg
PRODUCT WEIGHT (KG): 390KG
PRODUCT LENGTH (MM): 825
PRODUCT WIDTH (MM): 450
PRODUCT HEIGHT (MM): 1210
NUMBER OF GROOVES: 19
MAX. SHEET THICKNESS (MM): 14
ROLLER TYPE: Combination
ROLLER DIAMETER (MM): 65
ROLLER LENGTH (MM): 130
SIDE EXTENSIONS: 2 & 1.5mm, 3, 4
MAX. WIRE CAPACITY (MM): 7mm
