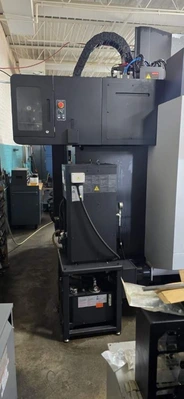

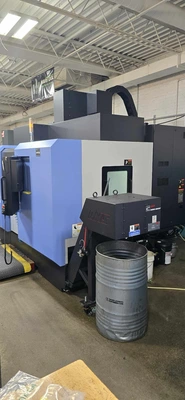

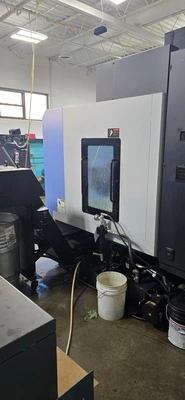

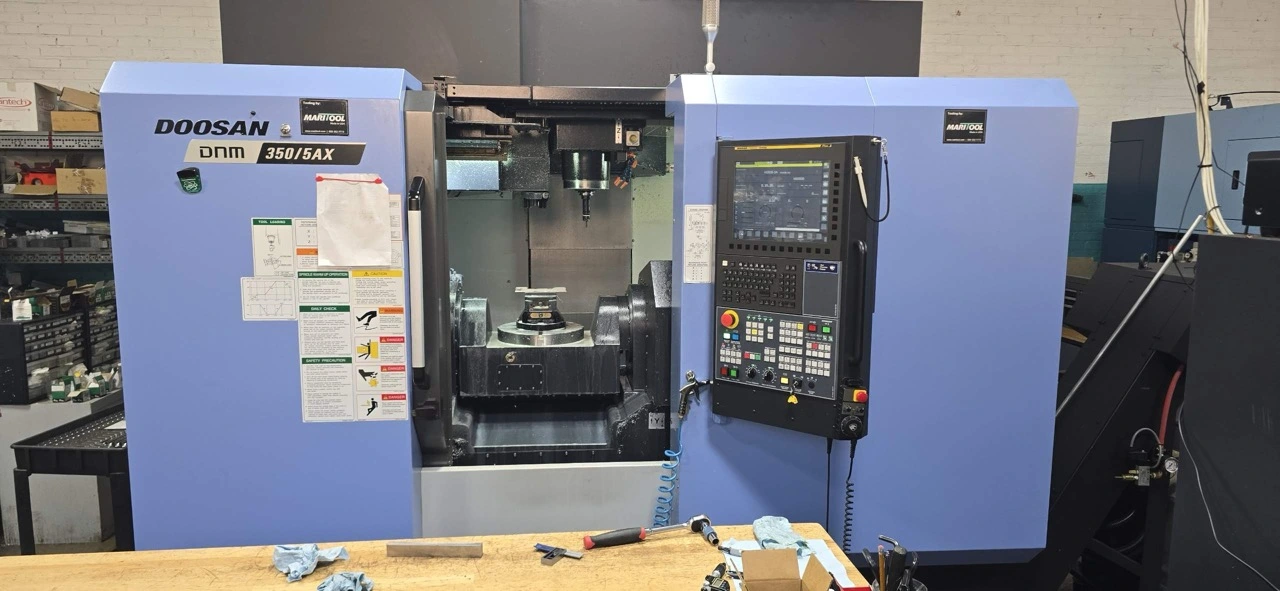

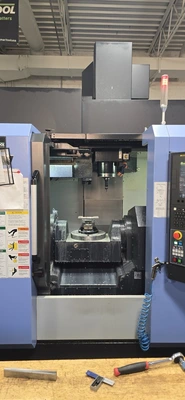

USED 2021 DOOSAN DNM350/5AX

X Axis Travel: 23.6″
Y Axis Travel: 25.8″
Z Axis Travel: 19.7″
Travel Distance A-axis: +30° -120°
Travel Distance C-axis: 360°
Rotary Table Max Load: 550 LBS
Table Size: 13.8″
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Spindle Motor: 25 HP
ATC: 60
Equipped With:

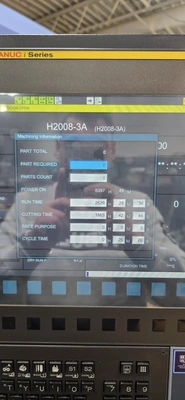

Fanuc I series Control
60 Station Tool Changer
LNS Turbo MH250 Chip Conveyor
Renishaw RMP600 Probe
Renishaw Axiset Calibration Artifact
3 Color Signal Lamp
230 PSI Through Spindle Coolant
Spindle Orientation
Rigid Tapping
Tool Load Monitor
Doosan Tool Load Monitoring and Adaptive Feedrate Control
Custom Macro
2MB Part Program Storage
Program Loading Via USB, Ethernet, PC-MCIA Card & RS232
