NEW KENT USA KMT-800-5AX

Equipped With

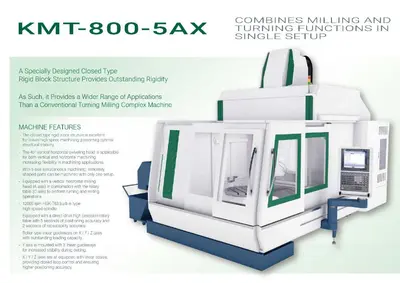

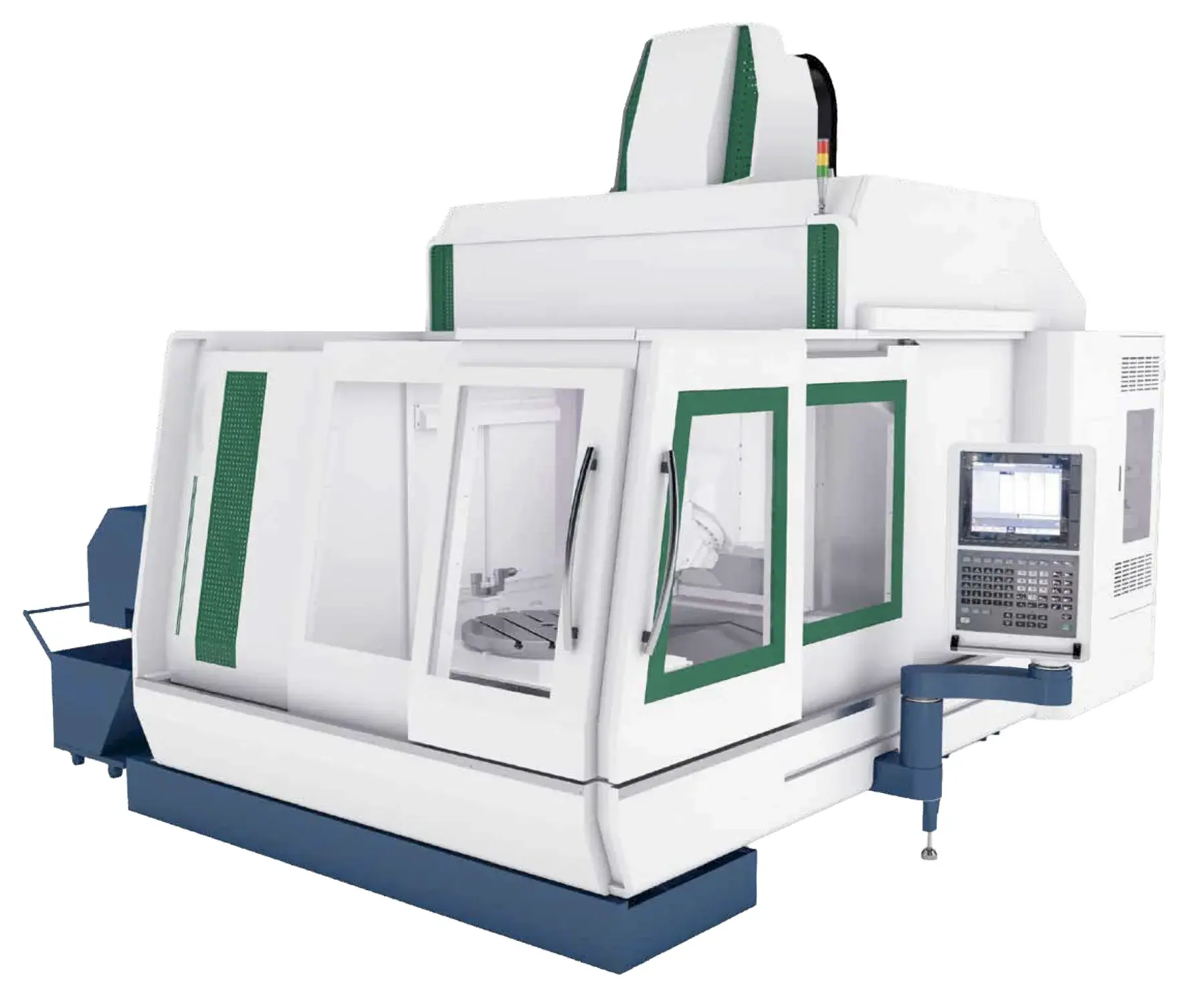

NEW KENT USA MODEL KMT-800-5AX 5-AXIS MILLING AND TURNING CENTER
The KMT-800-5AX is a high-performance 5-axis milling and turning center engineered to deliver exceptional rigidity, precision, and flexibility. Featuring a specially designed closed-type rigid block structure, this machine integrates milling and turning operations into one seamless setup—significantly reducing setup time while expanding machining capabilities beyond conventional mill-turn solutions.
Built for demanding, high-speed, multi-axis applications, the KMT-800-5AX enables manufacturers to machine complex, high-precision parts with confidence and efficiency.

Product Highlights

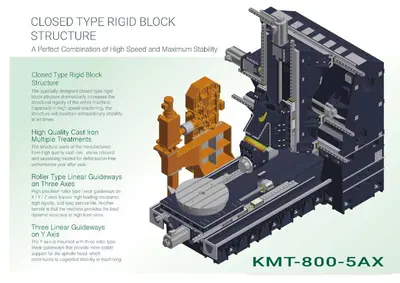

Closed-Type Rigid Block Structure
Optimized for 5-axis high-speed machining, delivering outstanding structural stability and vibration resistance.
45° Vertical/Horizontal Swiveling Head
Supports both vertical and horizontal machining, greatly increasing application flexibility.
True 5-Axis Simultaneous Machining
Complex, multi-surface parts can be completed in a single setup, improving accuracy and reducing lead time.
Integrated Milling & Turning Capability
Vertical/horizontal milling head (A-axis) combined with a high-precision rotary table (C-axis) enables seamless mill-turn operations.

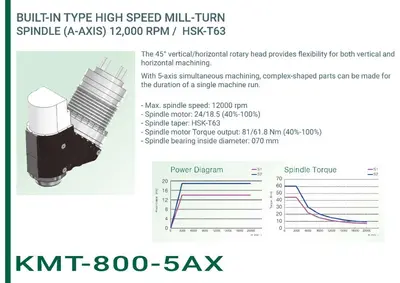

High-Speed Built-In Spindle
12,000 rpm HSK-T63 built-in spindle ensures high torque, excellent surface finish, and long-term reliability.

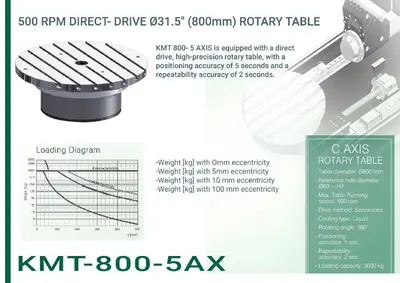

Direct-Drive High-Precision Rotary Table
Positioning accuracy of 5 seconds and repeatability of 2 seconds for superior rotational precision.
Roller-Type Linear Guideways on X / Y / Z Axes
Designed for high load capacity, rigidity, and long service life.
Triple Linear Guideways on Y-Axis
Enhanced support for the spindle head, delivering superior cutting stability.
Full Closed-Loop Control
Linear scales on X / Y / Z axes ensure high positioning accuracy and consistent machining precision.
Standard Accessories
Coolant tank
Coolant gun
Work lamp
Toolbox
Oil mist coolant device
Spindle air blow function
Spindle cooling splash
Spindle cooling splash and air blast
Coolant system
Air conditioner for electrical cabinet
MPG handwheel
Work end indication light
Fully enclosed splash guard
Spindle cooling system
Central control lubricator
Operation manual
Leveling bolts and pads
Internet and RS-232C interface
Spindle thermal compensation function
3-axis optical scales
A/C axis optical scale
Caterpillar-type chip conveyor and cart (for general chips)
Screw-type chip conveyor equipped at the work table
M30 auto power-off system
Optional Accessories
Oil skimmer
Oil mist collector

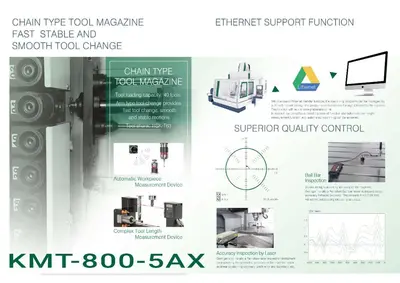

60-tool magazine
Milling and turning tool length measurement
Automatic workpiece measurement device (touch probe included)
Coolant-through-spindle device (70 bar)
Transformer
CE / TS specification

Axis
X
Y
Z
3-Axis Travel
39.37 in (1000 mm)
39.37 in (1000 mm)
39.37 in (1000 mm)
Cutting Feed Rate
1,181 in/min (30 m/min)
1,181 in/min (30 m/min)
1,181 in/min (30 m/min)
Rapid Feed Rate
1,181 in/min (30 m/min)
1,181 in/min (30 m/min)
1,181 in/min (30 m/min)
Specification

Table Area
Ø31.50 in (Ø800 mm)
T-slot Area
No. 5, width 0.71 / 5.12 in (No. 5, width 18 / 130 mm)
Height from Table Surface to Spindle Nose
37.40 in (950 mm)
Distance from Table Surface to Spindle Nose
Horiz.: 1.97–41.34 in (50–1050 mm) / Vert.: 2.76–42.13 in (70–1070 mm)
Max. Load of Table (Average Load)
6,614 lb (3000 kg)
Max. Workpiece Sizes
Ø39.37 in (Ø1000 mm)
Spindle Type
Built-in Type
Max. Spindle Speed
12,000 rpm (D.D)
Bearing Lubrication
Grease
Spindle Cooling
Oil-cooling
Inner Diameter of Spindle Bearing
Ø2.76 in (Ø70 mm)
ATC Capacity
40T
ATC Tool System
HSK-T63
Max. Tool Diameter
Ø2.95 in (Ø75 mm)
Max. Tool Length
11.81 in (300 mm)
Max. Tool Weight
17.64 lb (8 kg)
Controller
HEIDENHAIN / SIEMENS
Air Pressure Required
101.5 psi (7 bar)
Coolant Tank Capacity
124.2 gal (470 L)
Machine Net Weight
41,888 lb (19,000 kg)
Machine Gross Weight
48,105 lb (21,820 kg)
Machine Dimensions (L × W × H)
198.82 × 124.21 × 150.67 in (5050 × 3155 × 3827 mm)
