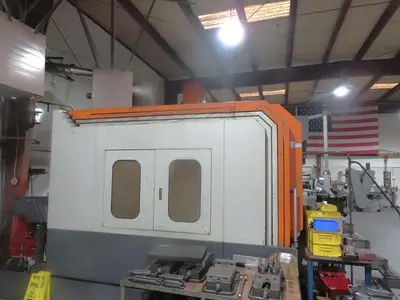

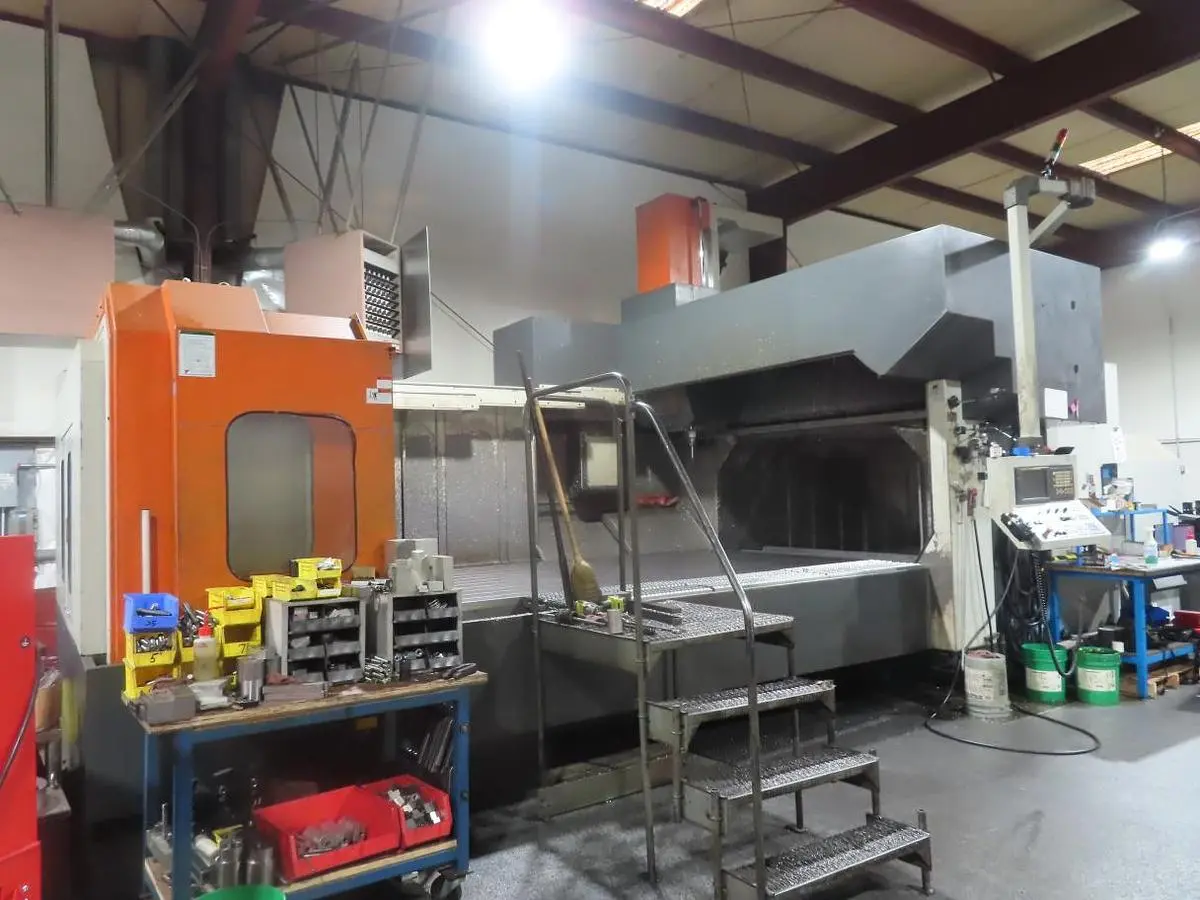

USED 2009 VISIONWIDE VTEC VF-4000 DOUBLE COLUMN STYLE BRIDGE MILL

40 Station Side Mounted Tool Changer
Coolant Through the Spindle - 500 PSI
Chip Conveyor
Chip Augers that feed to Conveyor
Spindle Chiller
Complete Coolant System with Tank & Pump
Rigid Tapping
Flood Coolant
Boxed Way Design
RS 232 Port Interface
All Available Manuals

**Machine is in plant and under power**

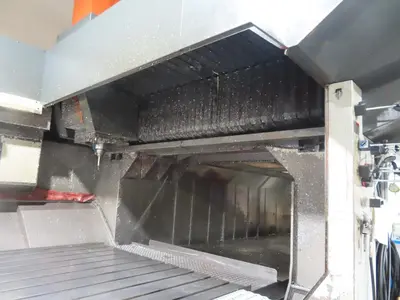

The 2009 Visionwide VTEC VF-4000 is a robust Double Column Style Bridge Mill designed for precision and heavy-duty machining tasks. It features a spacious table size of 165.35" x 80.70", capable of supporting loads up to 28,600 lbs. The machine offers extensive axis travels—165.35" in X, 90.55" in Y, and 36.22" in Z—making it suitable for large and complex workpieces. With a Fanuc 18-iMB CNC Control, the mill promises precise and efficient operations, enhanced by a 40-position side-mounted automatic tool changer.

Equipped with a powerful 35 HP spindle motor, this bridge mill operates within a spindle speed range of 50 to 6,000 RPM, supported by a CAT50 spindle taper. The rapid traverse rates are 393 IPM for X and Y axes and 472 IPM for the Z axis, complemented by cutting feed rates of 275 IPM. The ample distance of 94.48" between columns accommodates bulky components, enabling a wide range of machining applications.

Despite its used condition, the VF-4000 remains a valuable asset for manufacturers requiring reliable and high-performance milling solutions. With a total machine weight of 84,581 lbs., it is an embodiment of stability and durability, making it an ideal choice for industries tackling extensive and demanding projects.

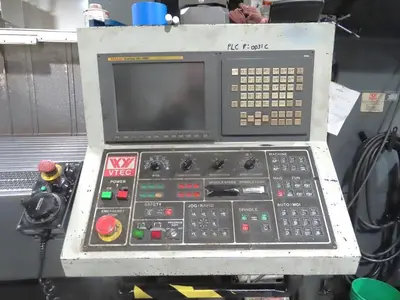

Machine Control: Fanuc 18-iMB CNC Control

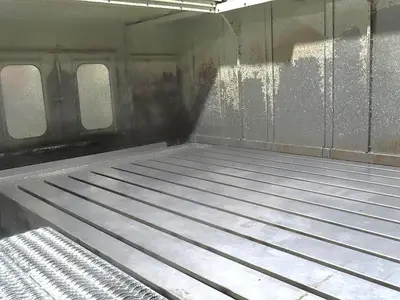

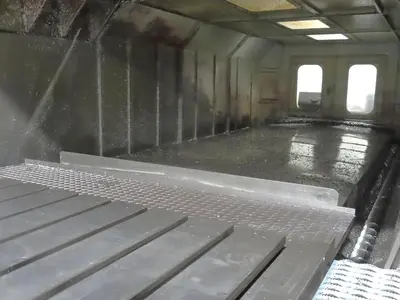

Table size: 165.35" x 80.70"
Maximum Load on Table: 28,600 lbs.
X axis travel: 165.35"
Y axis travel: 90.55"
Z axis travel: 36.22"

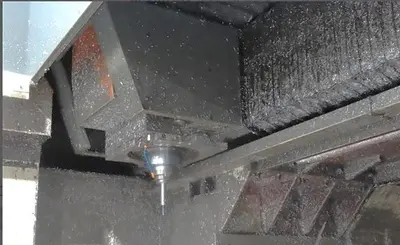

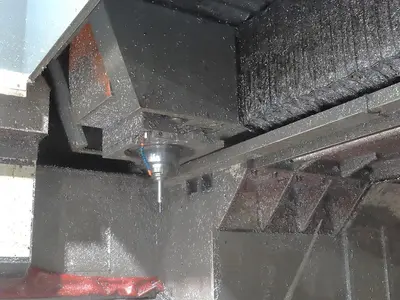

Spindle taper: CAT #50
Spindle motor: 35 HP
Spindle speed: 50 - 6,000 RPM
Spindle Nose to Table Top: 48"
Distance Between Columns: 94.48"
Number of Tool Positions: 40 Station Side Mounted ATC
Rapid Traverse Rates X / Y, Z: 393 IPM / 472 IPM
Cutting Feedrates: 275 IPM
Machine Dimensions: not available
Machine weight: 84,581 lbs.
