USED 1994 HEM H101A-1

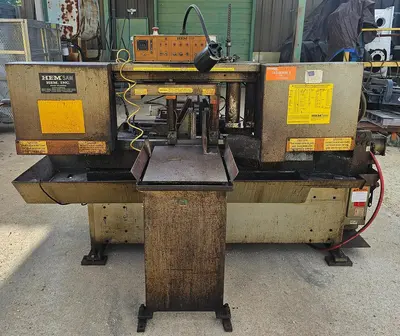

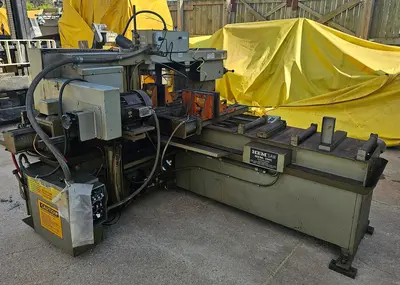

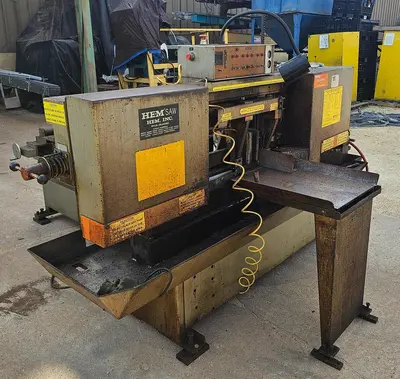

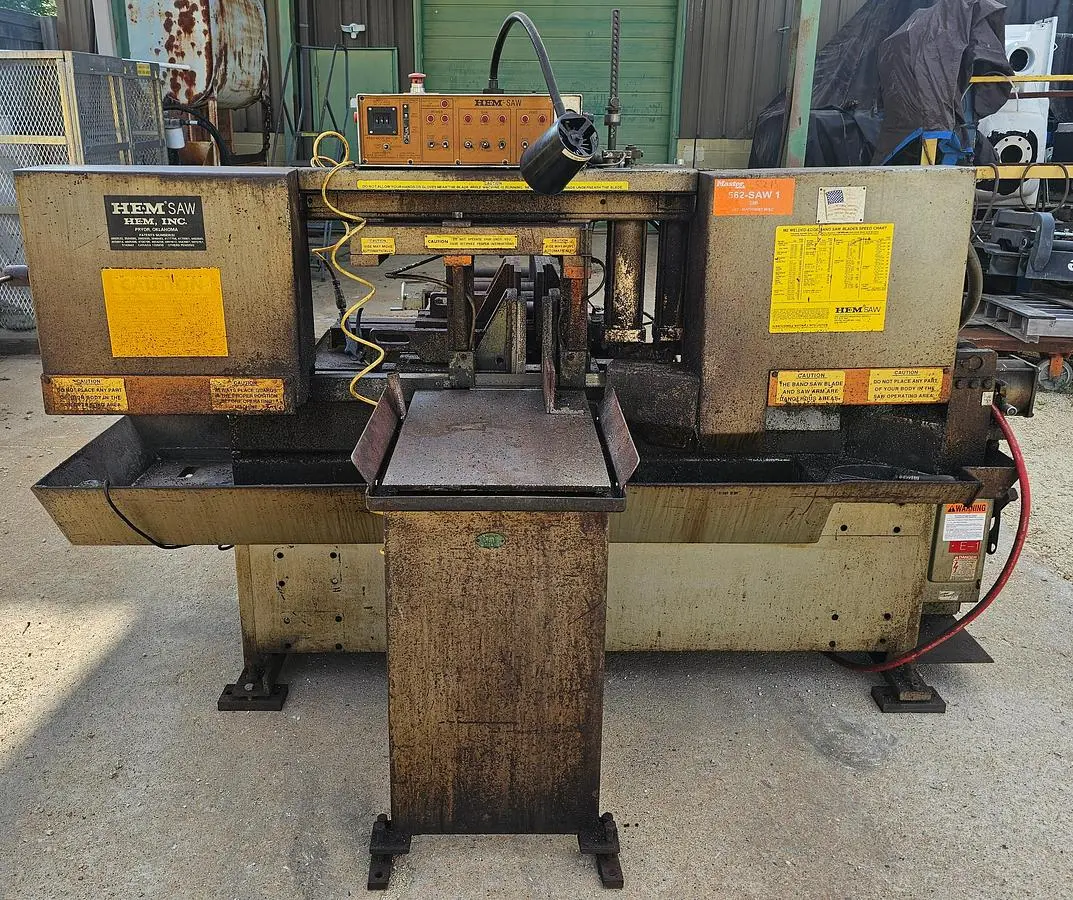

1994 HE&M H101A-1 Automatic Horizontal Bandsaw12.75" x 12.75" Capacity | 5 HP | 24" Shuttle Feed"The Industrial Standard for High-Volume Production Cutting"Available for sale is a 1994 HE&M H101A-1, an American-made powerhouse built for continuous production. Renowned for its massive cast head frame and rigid "scissor-type" pivot design, the H101 series is the go-to choice for steel service centers and heavy fabrication shops. This machine is designed to deliver square, accurate cuts in heavy solids, structural tubing, and exotic alloys.This specific unit features a full-cycle automatic shuttle feed system, allowing for "set-it-and-forget-it" operation on long production runs. With a heavy 1.25" blade and a high-torque 5 HP motor, this saw provides the stability and power required to maximize blade life and cut precision.Technical SpecificationsModel: H101A-1Year of Manufacture: 1994 (S/N: 510896)Capacity (Round/Square): 12.75" x 12.75"Blade Size: 1.25" x 174" x .042" (High-Speed Heavy-Duty)Blade Speed: 60 – 400 SFPM (Infinitely Variable)Main Motor: 5 HPElectrical: 220/440V, 3-Phase (Currently wired 440V)Shuttle Stroke: 0" – 24" (Single Stroke)Multi-Index Capability: Up to 9 indexes (Automatic cutting up to 216")Machine Weight: ~4,000 lbsDimensions: 102" L x 107" W x 68" HKey Features & Included EquipmentAutomatic Shuttle Feed: Precise hydraulic indexing for high-volume piece counting and length control.Variable Vise Pressure: Fully adjustable clamping force (up to 800 lbs) allows you to secure heavy solids or thin-wall tubing without crushing.Adjustable Feed Rate & Pressure: Fine-tune the "attack" of the blade for soft entry into shapes and consistent exits on solids.Integrated Coolant System: High-volume submersible pump and 20-gallon tank for superior heat dissipation and surface finish.Heavy-Duty Blade Guides: Adjustable eccentric roller guides and carbide inserts for maximum blade support through the cutting zone.Swing-Away Console: (If equipped) Allows the operator to control all functions from a safe, ergonomic distance during loading.

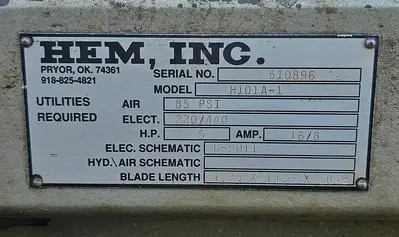

S/N: 510896
Capacity: 12.75" x 12.75"
Shuttle Feed Range: 24"
* Capacity (Round/Square): 12.75" x 12.75"
* Main Motor: 5 HP
* Machine Weight: ~4,000 lbs
