USED 2005 OKAMOTO OGM-1236UB

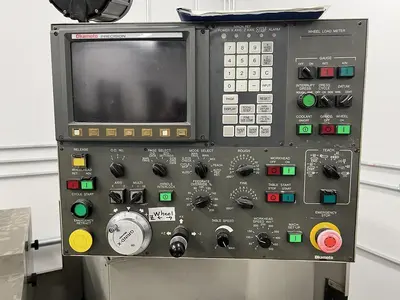

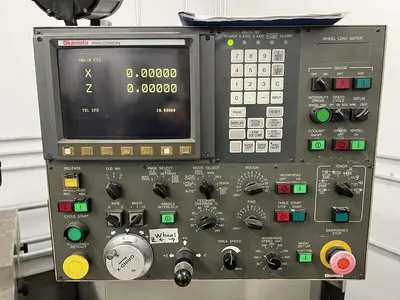

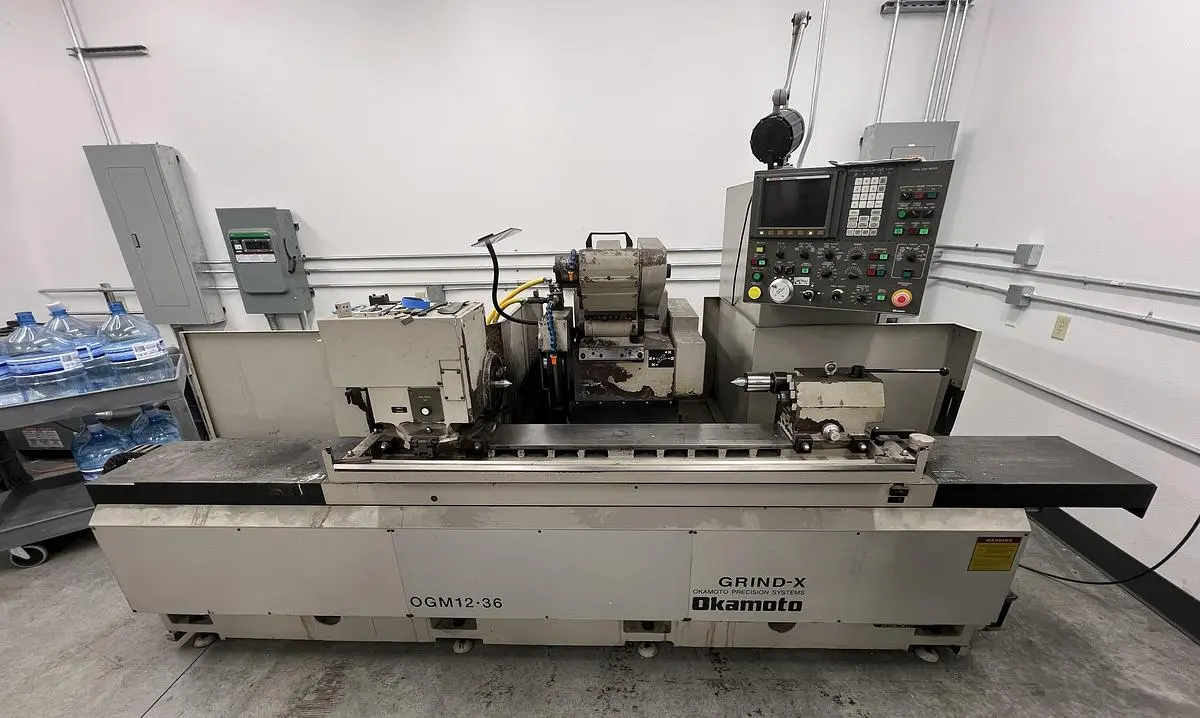

2005 Okamoto OGM-1236UB CNC Universal ID/OD Grinder12.6" Swing x 36" Centers | Fanuc 21-GA Control | ID Spindle Included"Japanese Precision with Universal Versatility"This 2005 Okamoto OGM-1236UB is a high-precision, CNC Universal ID/OD Grinder designed for toolrooms and production environments that demand "tenths" accuracy. As a "UB" model, it features a universal wheelhead and a dedicated swing-down ID grinding attachment, allowing for complete part finishing in a single setup.Driven by the reliable Fanuc 21-GA control, this machine is specifically engineered for multi-diameter grinding, making complex stepped-shaft work simple and repeatable.Key Machine SpecificationsModel: OGM-1236UBYear of Manufacture: 2005Control: Fanuc 21-GA (MDI Multi-Diameter Grinding)Swing Over Table: 12.6"Distance Between Centers: 36"Max. Grinding Diameter: 12"Max. Load Between Centers: 330 lbsGrinding Wheel Size: 14" x 1.5" x 5"Grinding Wheel Speed: 1,820 RPMSpindle Motor: 7.5 HPMachine Weight: Approx. 9,250 lbsFloor Space Required: 144" x 70" x 75"Universal Capabilities & TravelsID Grinding Attachment: Swing-down internal grinding spindle for versatile ID/OD processing.Wheelhead Swivel: +/- 30 DegreesWorkhead Swivel: +90 to -30 DegreesTable Swivel: 0 to 8.5 DegreesZ-Axis Travel (Table): 50"X-Axis Travel (Wheelhead): 11.8"Minimum Increment: 0.00001" (High-resolution feedback)Equipped With & Premium FeaturesFanuc 21-GA Control: Features Okamoto's user-friendly interface for easy setup of traverse, plunge, and multi-step grinding cycles.Tailstock with Fine Adjustment: Manual tailstock featuring center-pressure adjustment and a #4 MT taper.Automatic Lubrication System: Ensures consistent oil film on the precision-ground ways.Coolant System: High-capacity tank with integrated pump for thermal stability during heavy grinding.Workhead: Variable speed workhead (MT #4) for optimized surface finishes on various materials.Dealer Note: "The Okamoto OGM series is legendary for its thermal stability and ease of use. This 2005 unit offers the best of both worlds: the rigidity of a 9,000 lb casting and the precision of Fanuc-driven CNC controls. Having the 'UB' universal package with the ID spindle makes this a high-utility asset for any high-precision shop. This machine is currently available for inspection and ready for immediate delivery."

* Swing Over Table: 12.6"
* Distance Between Centers: 36"
* Max. Grinding Diameter: 12"
* Grinding Wheel Speed: 1,820 RPM
* Spindle Motor: 7.5 HP
* Z-Axis Travel (Table): 50"
* Machine Weight: Approx. 9,250 lbs
* Wheelhead Swivel: +/- 30 Degrees
* Workhead Swivel: +90 to -30 Degrees
* Table Swivel: 0 to 8.5 Degrees
* X-Axis Travel (Wheelhead): 11.8"
* Minimum Increment: 0.00001" (High-resolution feedback)
