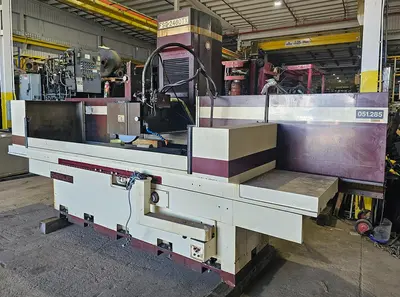

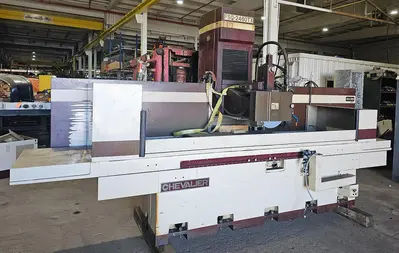

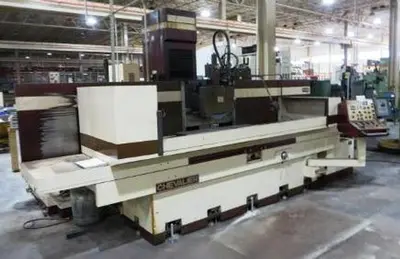

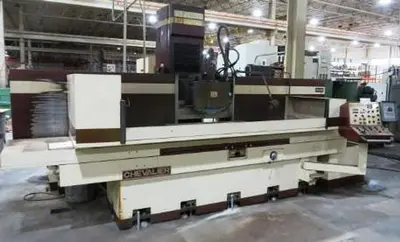

USED 1995 CHEVALIER FSG-2640TX

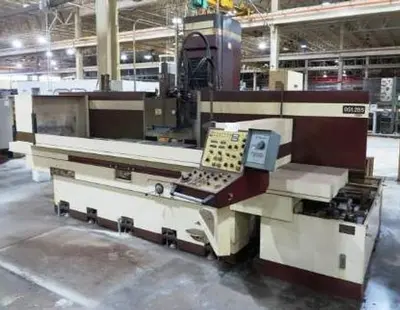

1995 Chevalier FSG-2640TX3-Axis Automatic Column-Type Surface Grinder"High-Capacity Precision for Large Scale Die & Mold Work"This 1995 Chevalier FSG-2640TX is a heavy-duty, column-type workhorse designed for large-scale precision grinding. S/N J485C001 is a well-equipped unit that excels in handling massive die blocks and large surface plates where smaller, saddle-type grinders fail to maintain accuracy.With a massive 24" x 40" capacity and a robust 15 HP spindle, this machine provides the rigidity and power required for aggressive material removal while maintaining the fine finishes Chevalier is known for.Capacity & TravelsTable Working Surface (W x L): 24" x 40"Max. Grinding Width: 24"Max. Grinding Length: 40"Max. Distance (Table to Spindle Center): 33.46"Max. Table Load Capacity: 3,960 lbsLongitudinal Table Travel: 40" (Hydraulic)Crossfeed Table Travel: 24" (Automatic/Hydraulic)Spindle & Grinding WheelSpindle Motor: 15 HP (Direct Drive)Spindle Speed: 1,450 RPM (Standard for 60Hz)Grinding Wheel Size (OD x W x Bore): 16" x 3" x 5"Vertical Handwheel Graduation: 0.0001"Vertical Handwheel (Per Revolution): 0.05"Feed Rates & MovementLongitudinal Table Speed: 16 to 82 FPM (Variable Hydraulic)Automatic Crossfeed Increment: 0.125" to 2"Automatic Incremental Downfeed: 0.0001" to .002"Rapid Traverse (Vertical): Approx. 12" to 15" per minuteElectrical & Mechanical SpecsHydraulic Motor: 5 HPCrossfeed Motor: 1/2 HPElevating Motor: 1/2 HPPower Requirement: 230V or 460V / 3 Phase / 60HzNet Weight: ~18,000 lbsFloor Space Required (L x W x H): 255" x 134" x 108"Included High-Value Equipment (S/N J485C001)Programmable Over-The-Wheel Dresser: Allows for dressing without disturbing the setup.24" x 40" Electro-Magnetic Chuck: Full-table coverage.Automatic Lubrication System: Centralized for ways and lead screws.Coolant System: Includes paper filter unit for high-volume grinding.Premium Equipment & Options24" x 40" Electro-Magnetic Chuck: Large-format workholding with integrated neutralizer/controller.Programmable Over-the-Wheel Dresser: Allows for wheel dressing without disturbing the workpiece setup, significantly reducing downtime and maintaining precision.3-Axis Automatic Operation: Features automatic incremental power downfeed and hydraulic longitudinal/cross feeds for consistent, unattended operation.Column-Type Construction: Moving-column design ensures superior accuracy and support across the entire width of the table compared to standard saddle-type grinders.Coolant System with Paper Filter: High-capacity system designed to manage the heavy swarf volume generated by large-scale grinding operations.Automatic Lubrication: Centralized system ensuring all ways and critical components remain protected during long production runs.Dealer Note: "At 18,000 lbs, the FSG-2640TX is built for stability. S/N J485C001 is a rare 'TX' series unit that combines a massive 24-inch width capacity with the convenience of an over-the-wheel dresser. It is an ideal 'bridge' machine for shops that need VMC-level table capacity in a dedicated precision grinder. This machine is currently under power and ready for inspection."

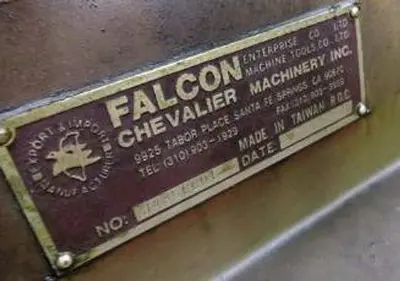

S/N: J485C001
* Max. Grinding Width: 24"
* Max. Grinding Length: 40"
* Longitudinal Table Travel: 40" (Hydraulic)
* Crossfeed Table Travel: 24" (Automatic/Hydraulic)
* Spindle Motor: 15 HP (Direct Drive)
* Vertical Handwheel Graduation: 0.0001"
* Automatic Crossfeed Increment: 0.125" to 2"
* Automatic Incremental Downfeed: 0.0001" to .002"
* Hydraulic Motor: 5 HP
* Crossfeed Motor: 1/2 HP
* Elevating Motor: 1/2 HP
* Net Weight: ~18,000 lbs
