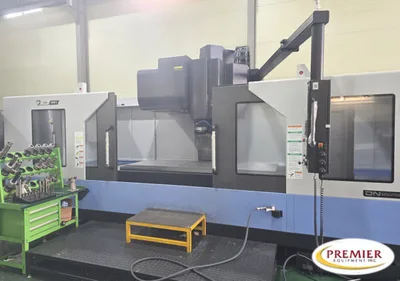

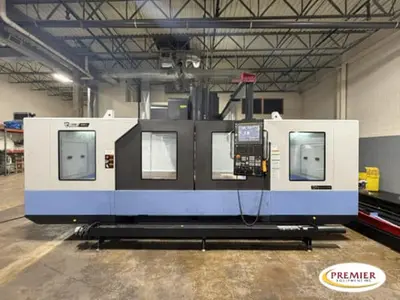

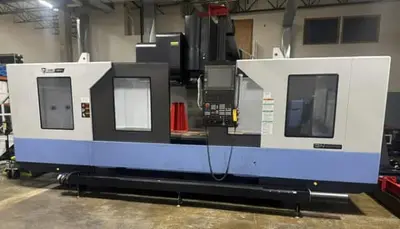

DN Solutions VM-960L Heavy-Duty CNC Mill
CNC Vertical Machining Center
TABLE-L: 102.3″
TABLE-W: 37.4″
WEIGHT ON TABLE: 9,920 lb
SPINDLE NOSE TO TABLE TOP: 7.9″ – 39.4″
X – AXIS TRAVEL: 94.4″
Y – AXIS TRAVEL: 37.8″
Z – AXIS TRAVEL: 31.5″
SPINDLE SPEED: 8,000 RPM
SPINDLE TAPER: CAT#50
NUMBER OF GEAR RANGES: 2
MAIN MOTOR: 40 hp
AUTOMATIC TOOL CHANGER: 30
FANUC SERIES 31i-Model B Plus COLOR CNC CONTROL
RIGID TAPPING
CHIP CONVEYOR
THRU SPINDLE COOLANT
EMBEDDED ETHERNET FUNCTION
DOOSAN TOOL LOAD MONITORING
ALL AVAILABLE MANUALS
FULL ENCLOSURE
HAND HELD REMOTE JOG HANDLE
CAT
