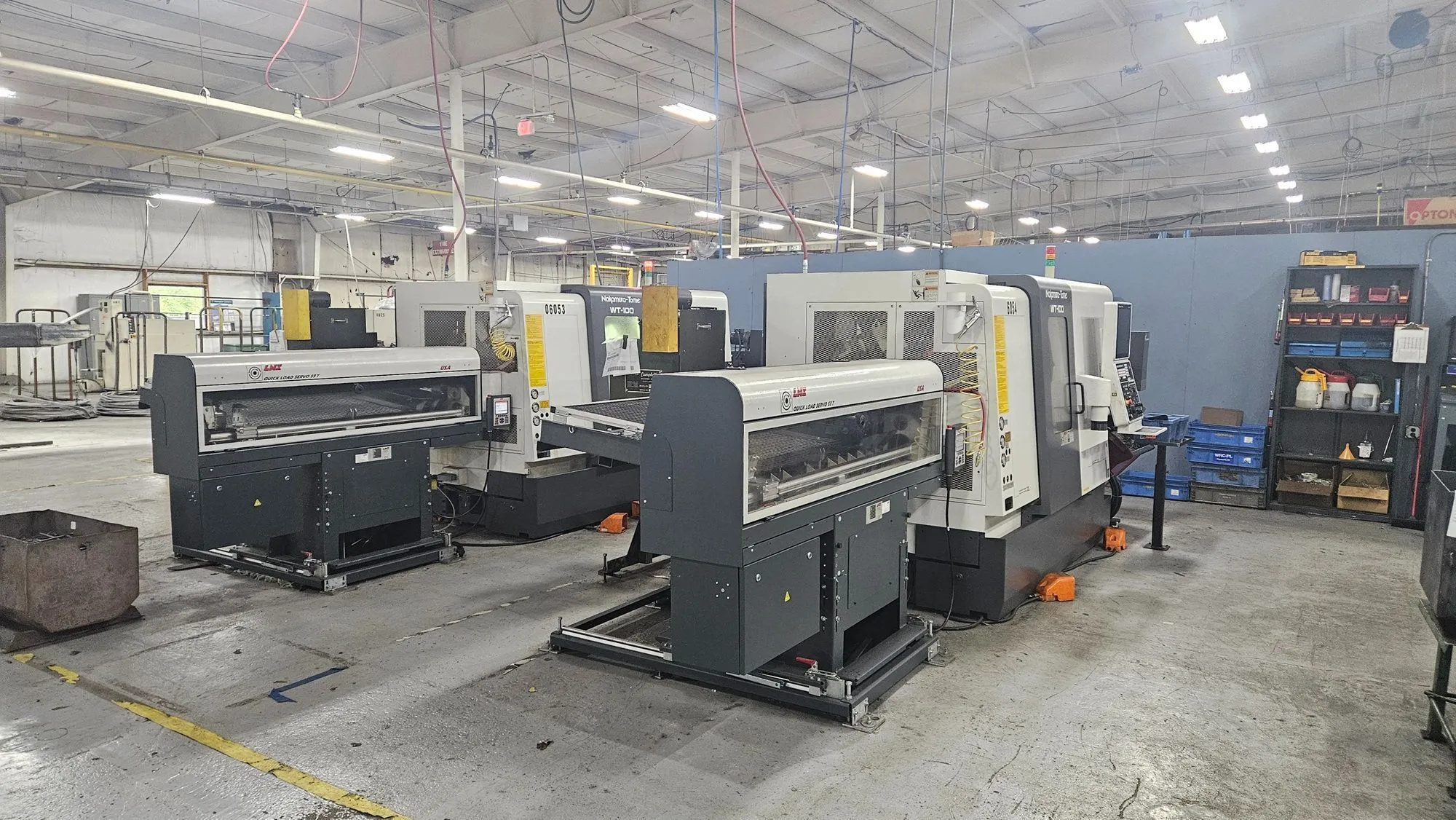

USED 2017 NAKAMURA-TOME WT-100MMY
Overview
Description
SEE THE ATTACHED -PDF FOR THE COMPLETE PURCHASE AGREEMENT..SHOWING MACHINE PRICE AND ALL PURCHASED OPTIONS. WITH PRICING
Specifications
| Maximum Swing | 7.48" | 189.99 mm |
|---|---|---|
| Control | CNC (FANUC 31i-B SmartX) | CNC (FANUC 31i-B SmartX) |
| Dimensions | 142"(LR) X 78"(FB) X 74"(H) | 142"(LR) X 78"(FB) X 74"(H) |
| Weight | 19,631 Lbs | 19,631 Lbs |
MAX TURNING DIAMETER 7.48"
MAX TURNING LENGTH 15.7"
SLIDE TRAVEL: X1/X2 6.2"/6.5"
SLIDE TRAVEL: Z1/Z2 18.3"
SLIDE TRAVEL Y+/- 1.3"
SLIDE TRAVEL B-AXIS 21.65"
SPINDLE SPEED 5,000 RPM
HOLE THROUGH DRAW TUBE 2"
C-AXIS INCREMENT .001 DEGREE
NUMBER DRIVER TOOL STATIONS. 2 X 12
DRIVE MOTOR LEFT SPINDLE 20/14 HP
DRIVE MOTOR RIGHT SPINDLE 14/10 HP
Opposed two-spindle, 2-turret construction
12 Station Turret with Half-Index Capability (48 total)
24 Milling tool stations
62mm Y-axis on Upper Turrets (+/ 31mm)
6000rpm Milling speed (Upper / Lower)
15 HP + 15 HP L/R spindle motor
9.7 HP C-Axis Milling Capable
Equipped With
FANUC 31i-B SMART X
RUBBER COATED CHUTE WITH STAND 200MM X 400 - SITS UNDER PCG
LNS TURBO CHIP CONVEYOR RH DISCHARGE - CC-44758154
LNS QUICK LOAD SERVO S3-T
9/16" - 4-3/4" DIAMETER CAPACITY W/OPTIONS DOWN TO 1/4" DIA.
CAN FEED SLUGS AS SHORT AS 10" W/OPTIONS FOR SHORTER PARTS
SERVO DRIVEN
KITAGAWA B206 6" CHUCK - 3-JAW - 45MM BAR CAPACITY
ROYAL FX575 MIST COLLECTOR - MACHINE MOUNTED (MMT-MI)
(02) LIVE FACE DRILLING HOLDERS - ALBERTI - A26333
(02) LIVE CROSS DRILLING HOLDERS - ALBERTI - A26330
BLAZE AIR UNLOADING SYSTEM - INSTALLED
17" OF LINEAR UNLOADING BUFFER
1/8" THROUGH 3" DIAMETER CAPACITY
2" THROUGH 36" PART LENGTH CAPACITY
SPINDLE LINER FOR 12MM PART
FRONT DISCHARGE ACCUMULATION TRAY - FINISHED PARTS
SPECIAL STAND FOR BLAZE AIR UNLOADER
EXPANDED PROGRAM STORAGE - 8MB - A02B-0327-R180 (256K TO 8MB
