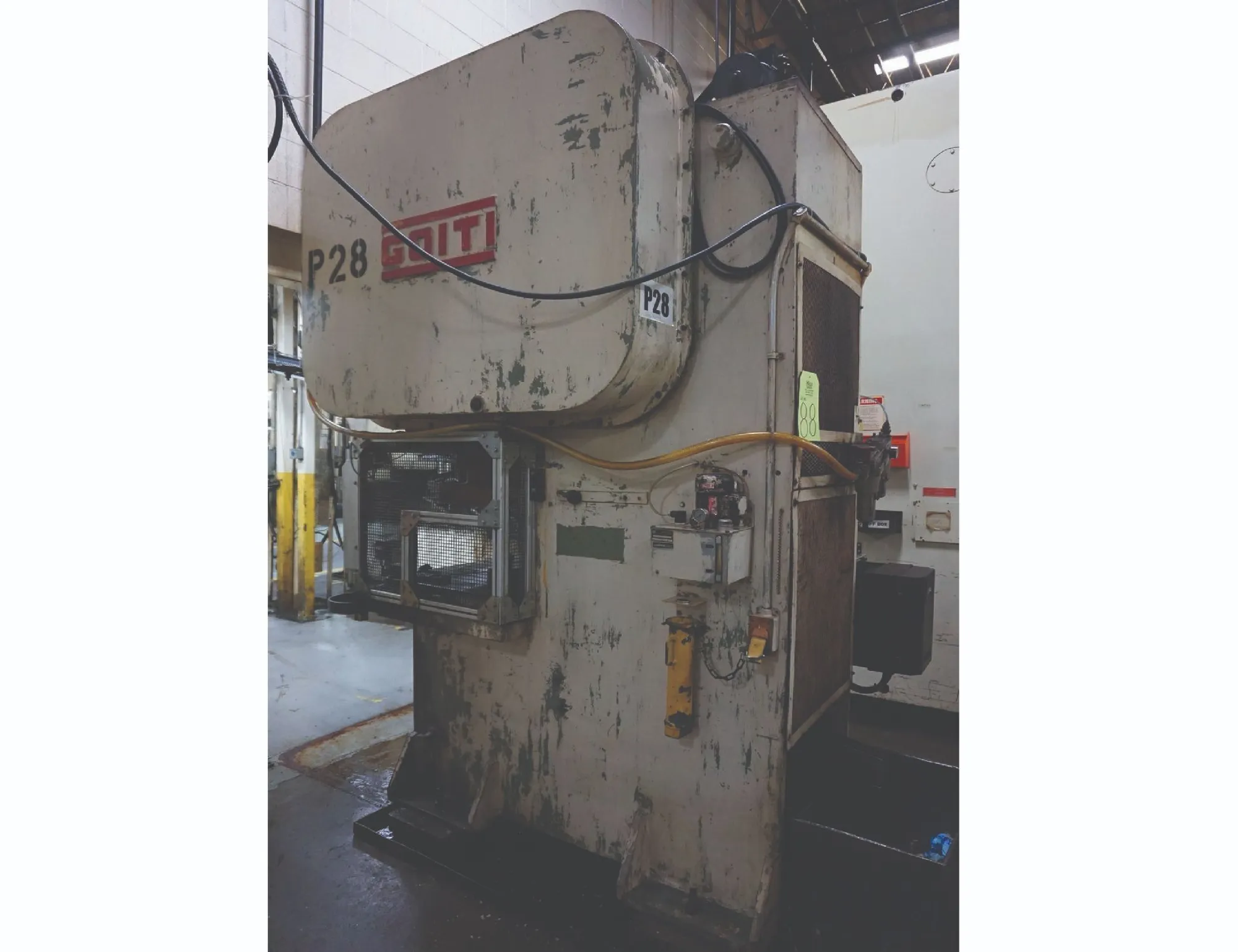

For sale: 1984 Goiti CFR 100 Ton OBI Gap Frame Press. Features include 38x24.5" bed, 5.5" stroke, equipped with Wintriss WPC-1000 clutch, Omron safety curtains, and T-slotted bolster. Perfect for versatile machining needs.
| Ton | 100 T | |
| Bed L-R | 38 in | |
| Bed F-B | 24.5 in | |
| Stroke | 5.5 in | |
| Shut Height | 11.2 in | |
| OBI Single Double | Single Crank | Single Crank |
| Dimensions | 68"LR x 84"FB x 119"H | 68"LR x 84"FB x 119"H |
| Weight | 27,000# | 27,000# |
Serial Number: 84-429-51
Capacity: 100 Ton
Stroke: 5.5”
Die Height: 11.2
Slide Adjustment: 3.54”
Bed Area: 38”LR x 24.5”FB
Slide Area: 24”LR x 18”FB
Equipped With:
Wintriss #WPC-1000 Clutch & Brake Control
Omron Safety Light Curtains
T Slotted Bolster
T-Slotted Ram
Operator Palm Controls
Cedisa Tarrasa Lube System
10 HP Main Motor 1750 RPM/ 3/60
Overall Shipping Dimensions: 68”LR x 84”FB x 119”H (with motor removed)
Estimated Shipping Weight: 27,000
