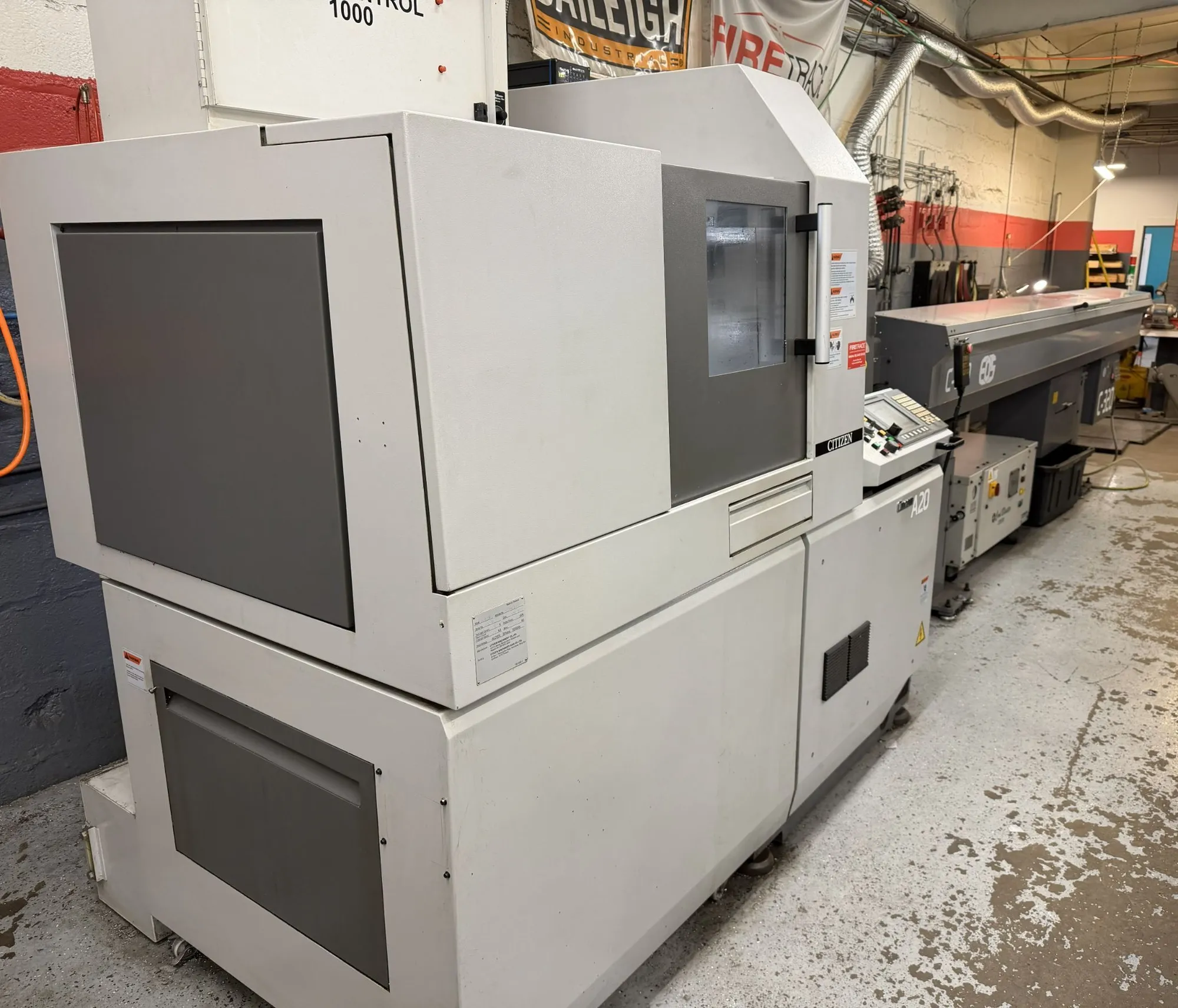

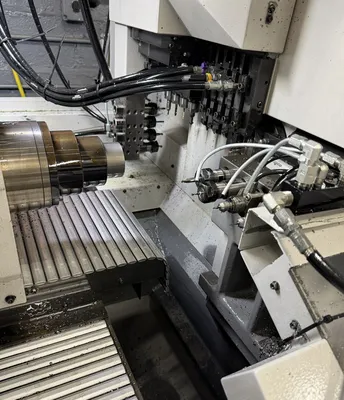

USED 2015 CITIZEN A20VII (3F7)

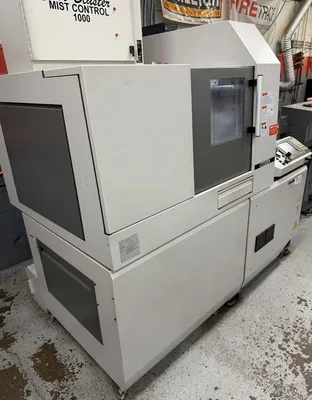

CITIZEN A20 VII (3F7) Swiss Type CNC Lathe (used) New 10/2015 w/C-320 (Edge Minuteman 320) Magazine bar loader, 2 channel sets, Chucker Kit conversion capable, Cool Blaster Mist Con 1000 mist control system, Fire Trace fire suppression, Cool Blaster CB510H - 10 line with heat exch high pressure coolant system, NSK high speed spindle system for live back working, misc tooling, ran oil. PUT IN SERVICE Late-2016.

Acclaimed for its excellent cost to performance ratio, the A20 has
evolved as a 5-axis machine for ø20 mm applications with the advantage
that it can be used with or without a guide bushing. Use
as a regular guide bushing automatic lathe when machining long,
slender workpieces or without a guide bushing for shorter parts
with minimal bar end remnants. The guide bushing can be quickly
and easily mounted and removed.

The performance of the machine has been improved too. The high
speed 10,000 rpm spindle enables optimized machining operations
on smaller diameter bar material. The machining length per chucking
is now extended to 200 mm enabling the number of re-chuckings
and therefore cycle times to be reduced when machining long
workpieces. As an option, bar material of up to ø25 mm can also
be machined extending the range of workpieces.

• The A20 features a new capability to switch between guide bushing
and non-guide bushing operating modes.
• The machine’s performance, including spindle speed and machining
length per chucking, has been increased.
• It is designed for ease of use and convenience with good chip
clearance for fast set-ups.

Maximum spindle speed of 10,000 rpm
The maximum speed of the front spindle
is high at 10,000 rpm enabling optimized
machining conditions on small diameter
bar material or using small diameter cutting
tools.

200 mm/1 chucking
A longer 200 mm machining stroke reduces
the need for re-chucking workpieces, which
in turn, reduces cycle time.

Support for stock material up to ø25mm
With its spindle through hole diameter of
26mm, the A20 is capable of machining bar
stock up to ø25mm by installing the optional
25mm size chuck device — enabling a wider
range of workpieces to be produced over
the standard 20mm machine.

Standard NC functions
NC unit dedicated to the A20

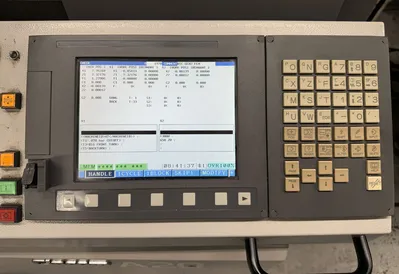

8.4 inch color LCD
On-machine program check function

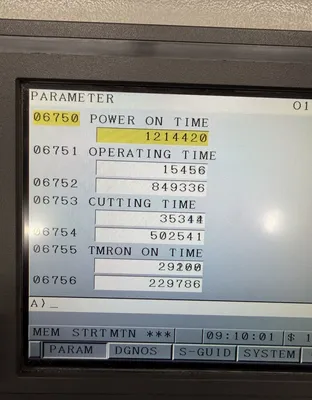

Operating time display function
Preparation function
Spindle speed change detector
Nose radius compensation
Constant surface speed control function
Program storage capacity: 80m
(approx. 32KB)
Product counter indication (up to 8 digits)
Automatic power-off function
Continuous thread cutting function
Pre-processing function
Tool offset pairs: 49
Sub micron commands
Spindle synchronized function
High speed rigid tapping function
Chamfering, corner R
Canned cycle drilling
Drawing dimension direct input
Multiple repetitive cycle for turning
User macros
Y-axis offset
Front/Back spindle C-axis function
Tool life management I
Tool life management II
Network I/O function
Inch command
Sub/inch command

ONLY A20 - ALL TOOLING GOES WITH

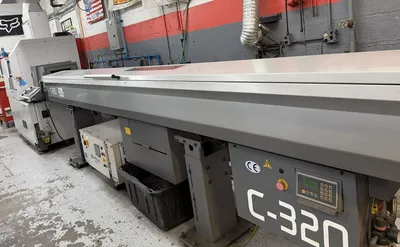

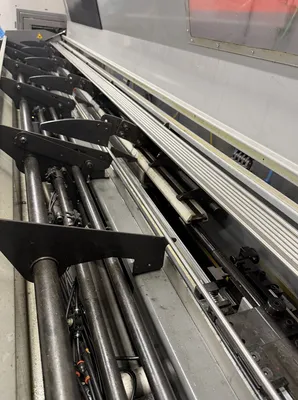

C-320 (Edge Minuteman 320) Magazine bar loader, 2 channel sets

Chucker Kit conversion capable

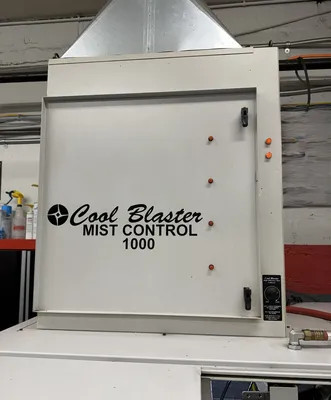

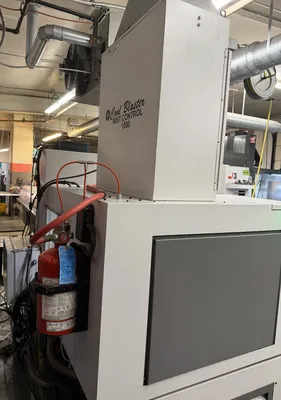

Cool Blaster Mist Con 1000 mist control system

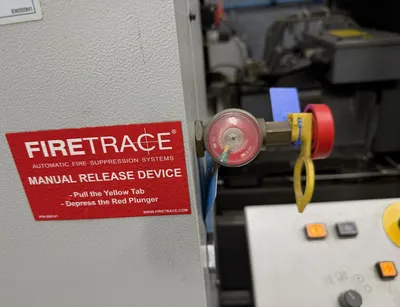

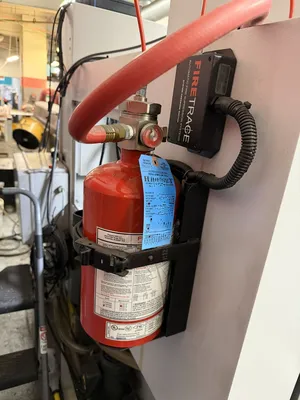

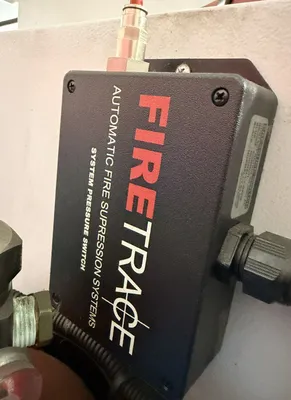

Fire Trace fire suppression

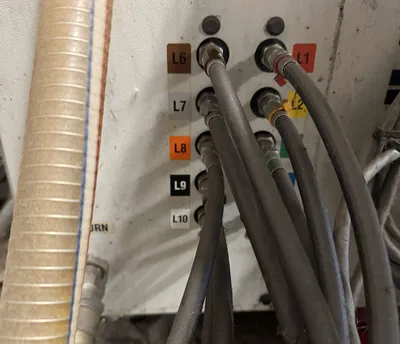

Cool Blaster CB510H - 10 line with heat exch high pressure coolant system - MCC CB510-10LH-A320T7-M1 10 Line HP Unit with Heat Exchanger

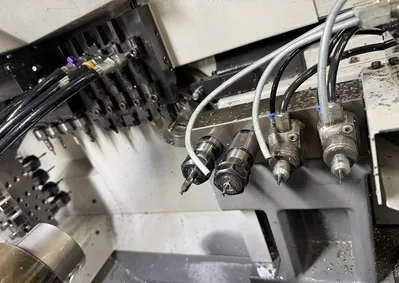

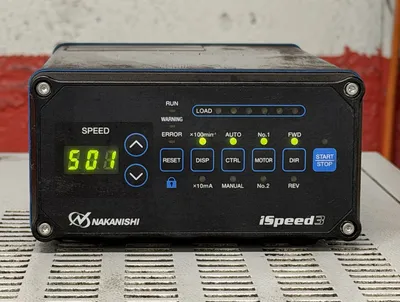

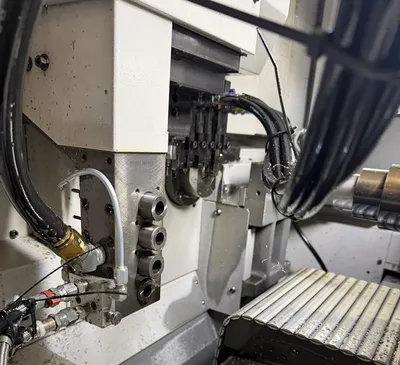

NSK high speed spindle system for live back working - BK-HSS-319F-2VS Two Spindle System (Variable Spindle RPM) MCC BK-BRKT-0003 Back Fixed (U150B)
(Tool positions T31, T32, T33, T34)

All available manuals, tool kit, keys.

Standard accessories
• Main spindle chucking device
• Back spindle chucking device
• Rotary guide bushing device
• Cut-off tool breakage detection
• Lighting
• Workpiece separator
• Coolant unit with level detector
• Lubricating oil supply unit with
level detector
• Door lock
• Pneumatic device for air sealing
• Machine relocation detector
