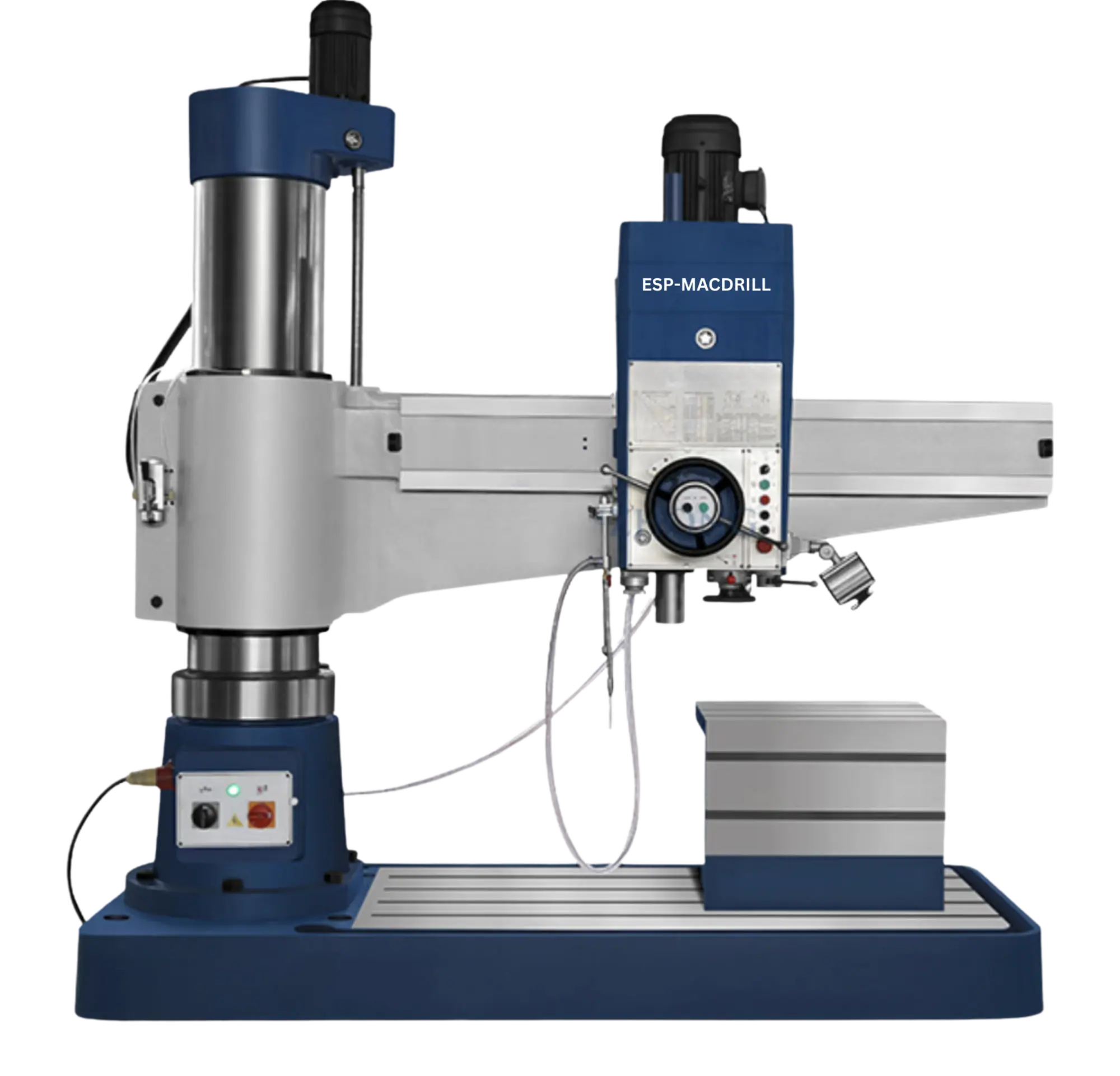

The Macdrill is our heavy duty hydraulic radial drilling machine 5MTx1600 and is our most popular radial drilling machine.
The machines comes with a non standard 800 x1000mm box table.
Max. drilling diameter ：50mm
Distance between spindle axis and column ：350-1600 mm
Distance spindle nose and working surface of base plate:32 -1220mm
Spindle travel:315mm
Spindle taper:5
Range of spindle speeds:25 -2000 r/min
| Arm Length | 1,600 mm | 5.25' |
| Column Dia. | 350 mm | 13.78" |
| Power | 4 kW | 5.4 hp |
| RPM | 2,000 RPM | 2,000 RPM |
| Dimensions | Base 2400x1000x200 mm | Base 2400x1000x200 mm |
| Weight | 3.5T | 3.5T |
SPECIFICATIONS Units 5 MT x 1600
Max. drilling dia. mm 50
Distance between spindle nose and table surface mm 300-1150
Distance from spindle axis to column surface mm 360-1600
Spindle travel mm 315
Spindle taper MT MT5
Spindle speed range rpm 25 - 2000
Spindle speed steps 16
Spindle feeding range mm/r 0.4-3.2 mm/rev
Spindle feeding steps 6
Spindle Horizontal moving distance mm 1250
Spindle max allowing force N 16000
Spindle lifting speed r/min 1.3
Main motor power kw 4
Machine weight kg 3500
Overall dimension mm 2500x1070x2840
