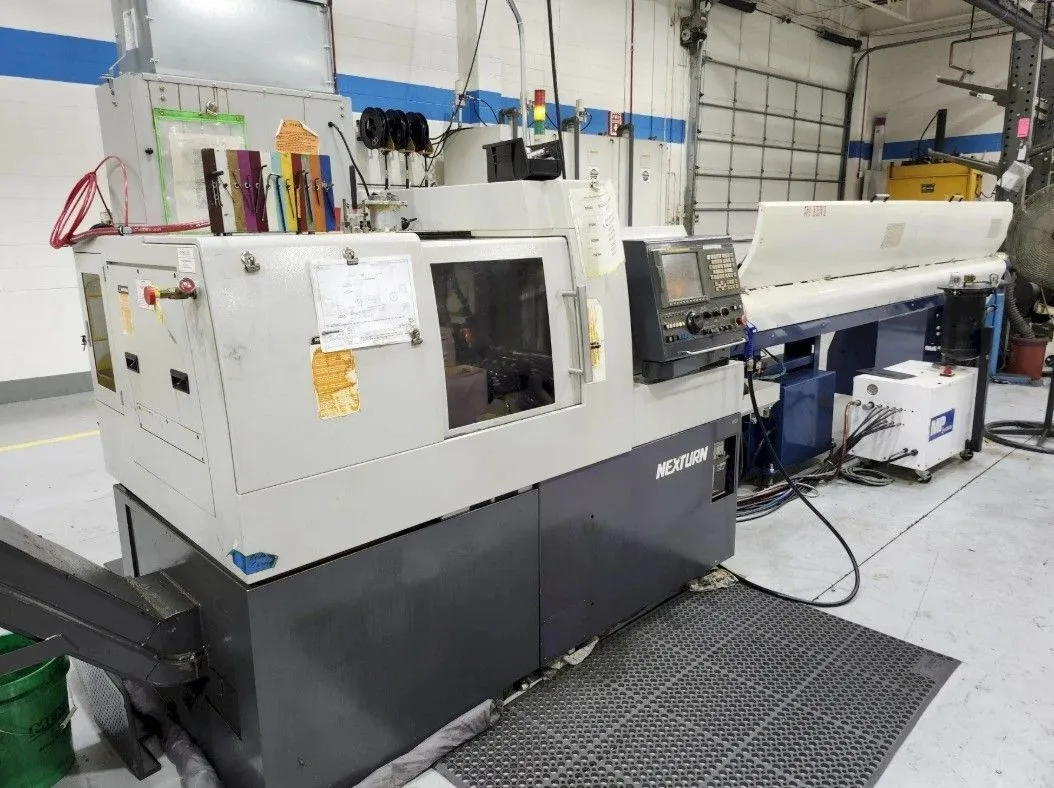

Nexturn SA-38 CNC Swiss Lathe, New in 2006
| Capacity | 1.5" | 38.1 mm |
| Power | 10 kW | 13.4 hp |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 7 | 7 |
| Swiss, Chucker or Convertible? | Swiss | Swiss |
| Live Back Working Tools | Yes | Yes |
| Control | CNC (Fanuc 18i-TB) | CNC (Fanuc 18i-TB) |
| Dimensions | 76" x 53" x 65" | 76" x 53" x 65" |
| Weight | 8,000 lbs | 8,000 lbs |
General Specifications:
Machining Capability
Bar Capacity: 1.5"
Bar Length: 8.26"
Main Spindle Drilling/Tapping: 0.47" / M10
Sub-Spindle Chucking Diameter: 1.25
Back-End Face Drilling/Tapping: 0.39" / M8
Cross Disc-Mill Diameter: 1.57"
Capability
Main Spindle Speed: 8,000 RPM
Sub Spindle Speed: 8,000 RPM
Cross Spindle Speed: 8,000 RPM
Number of Tools: 19
OD / Cross Live Tools: 5 / 4
Sub-Spindle Front-End Face Tools: 4 (2 Live)
Back-End Face Tools: 4
Bite Shank: 0.62 x 4.72"
Rapid Traverse Rate: 1259 IPM
Motors
Main Spindle Motor: 10 HP
Sub Spindle Motor: 3 HP
Cross Drill/Mill Unit: 1.4 HP
Back End Face Tools: 1.3 HP
Rotary Guide Bushing Unit: 1.4 HP
Machine Dimensions: 76" x 53" x 65"
Machine Weight: 8,000 lbs
Fanuc 18i-TB CNC Control
Eagle 542 Magazine Barfeeder
C-Axis
Rotary Guide Bushing
2-Backworking - Main Spindle
4-Turning Tools - Main Spindle
3-Endworking - Back Spindle
3-Station Back Spindle
Part Catcher
Part Conveyor
HP High Pressure Coolant
Fire Suppression - Fire Trace
Mist Collector
