Used

USED FENN 101

Rhode Island, United States
Founded more than thirty years ago in Pawtucket, RI, USA, International Rolling Mills, Inc. uses the latest technology when developing dependable and precision rolling mills. Each product is completely tailored to our client's specific needs.
Overview
2-HI Rolling Mills

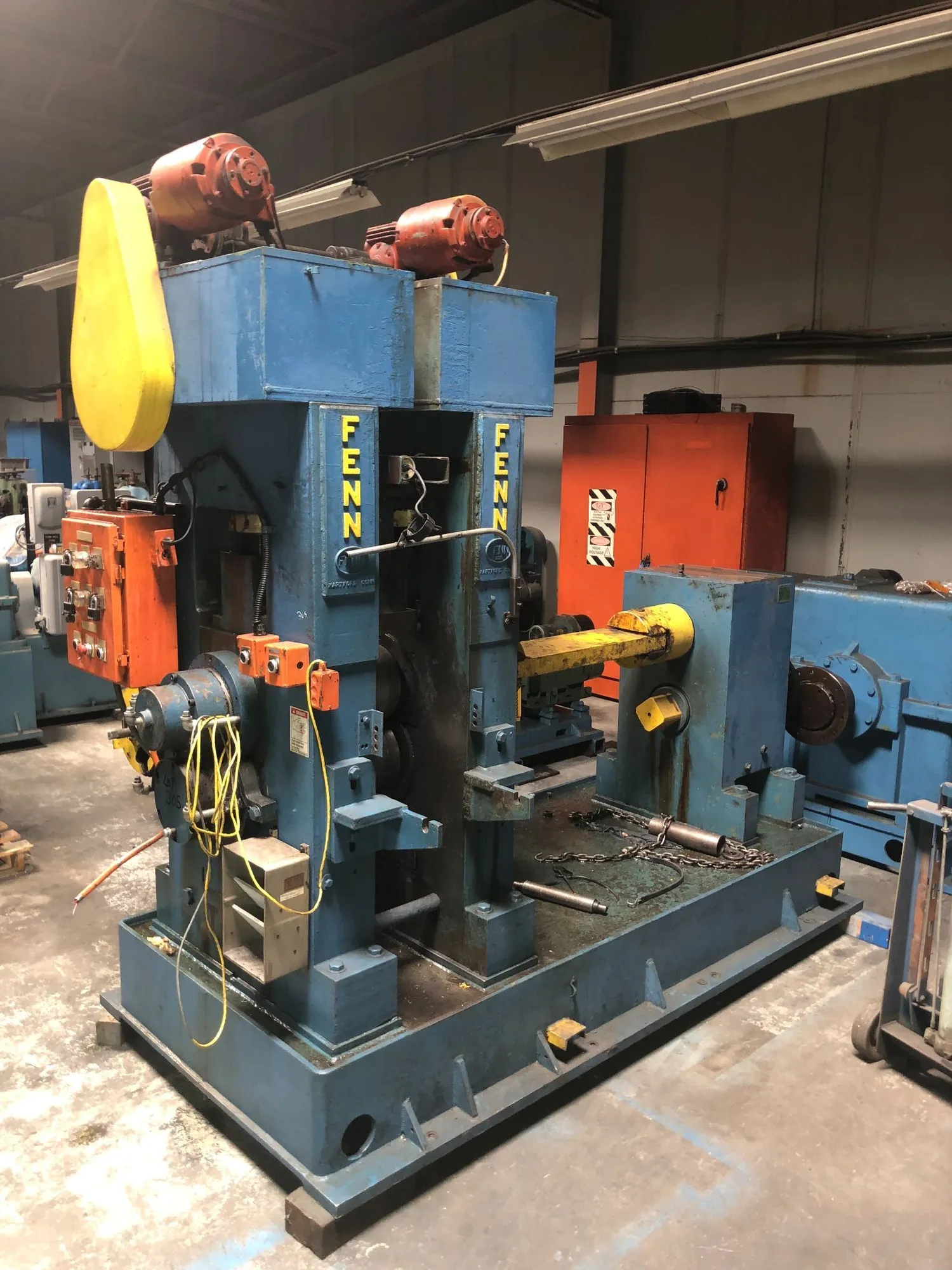

Heavy-duty FENN Model 101 2-High Rolling Mill, previously in service at an ordnance manufacturing facility and removed from service in reported operating condition. The mill includes the existing electrical controls and is offered as taken from service.

This machine features a single driven roll configuration with one driveshaft, driving the patterned roll, with a non-driven opposing flat roll—well suited for embossing, pattern rolling, and specialty forming applications.

Included are the patterned and flat rolls currently installed, plus two (2) spare patterned rolls and one (1) spare flat roll, providing added tooling value and flexibility for future setups.

Specs
Roll Diameter
10.5"
266.7 mm
Roll Width
12"
304.8 mm
Roll Finish
Patterned Driven Roll, Non Driven Flat Roll
Patterned Driven Roll, Non Driven Flat Roll
Roll Gap Adjustment
Power Screwdown Assembly
Power Screwdown Assembly
Mill Power
150 HP
150 HP
Mill Separating Force
Approximately 550,000 LBS
Approximately 550,000 LBS
Mill Voltage
460V
460V
Mill Phase
3-Phase
3-Phase
Mill Controls
Existing Electrical Panel Included
Existing Electrical Panel Included
