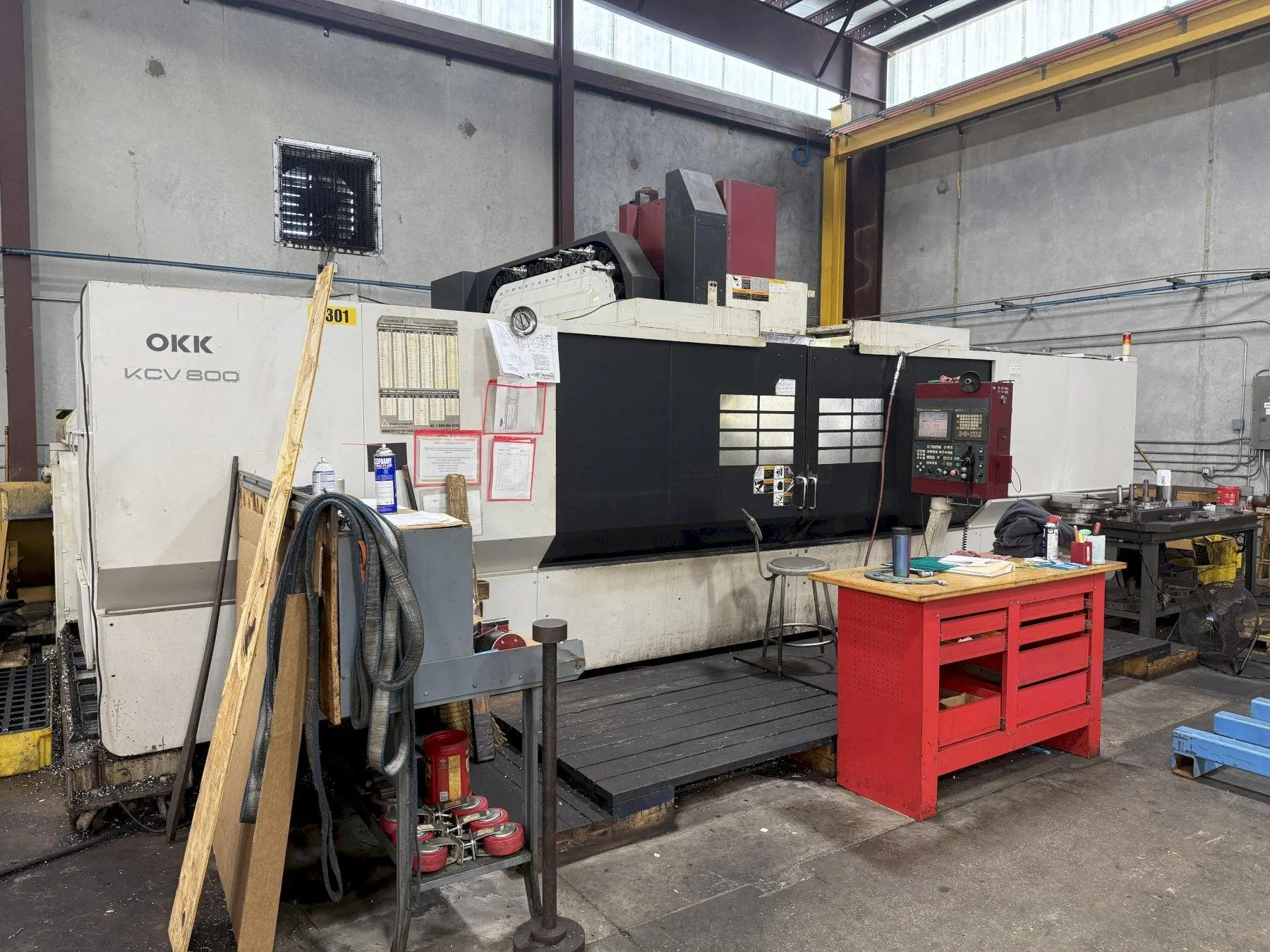

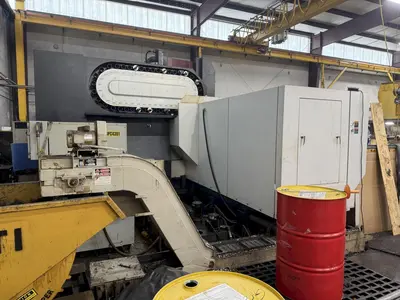

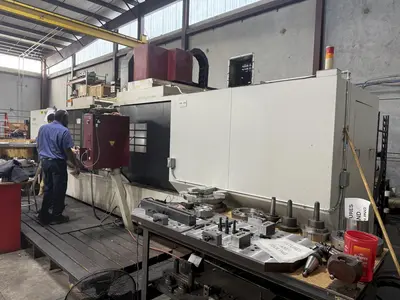

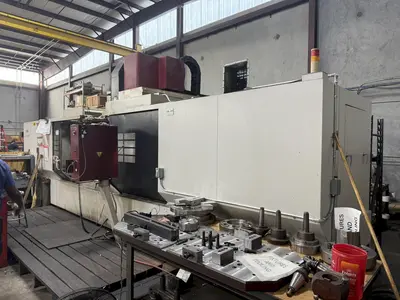

OKK KCV 800 CNC Vertical Machining Center, 2007 model in used condition. Features FANUC control, 3-axis operation, 130x32" table, and 40-tool changer. Includes spindle oil chiller, auger conveyors with rear lift, and full enclosure.
| Table Size-L | 130" | 3,302 mm |
| Table Size-W | 32" | 812.8 mm |
| Capacity | 6,600 lb | 2,993.7 kg |
| X-Horiz Tvl of Col | 120" | 3,048 mm |
| Y-Vert Tvl of Head | 33" | 838.2 mm |
| Z | 28" | 711.2 mm |
| Taper | 50 | 50 |
| Power | 40 hp | 29.8 kW |
| Spindle Speed | 12000 rpm | 12,000 RPM |
| Tool Changer Capacity | 40 | 40 |
| Coolant Thru Spindle | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 46200 | 46200 |
CNC Control: yes
Type of CNC Control: FANUC
# Axis: 3

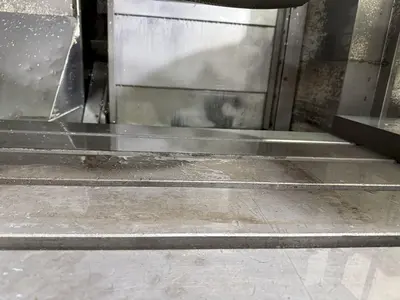

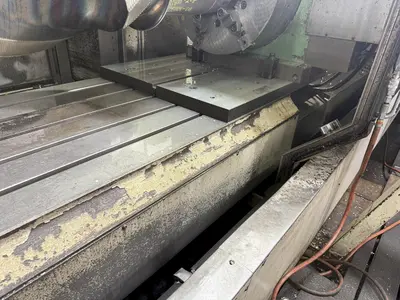

Table Size: 130” X 32”
Table Capacity: 6600: pounds
X-Axis Travel: 120: inches
Y-Axis Travel: 33: inches
Z-Axis Travel: 28: inches
Spindle Speed: 12000
Spindle Taper: 50
Main Motor: 40 HP

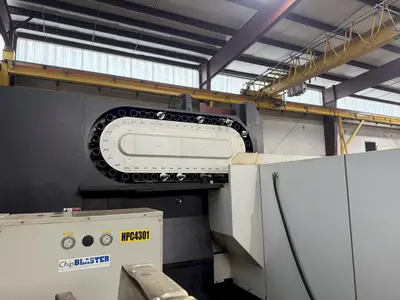

Tool Changer Capacity: 40
Coolant Thru Spindle: yes
Weight: 46200: pounds

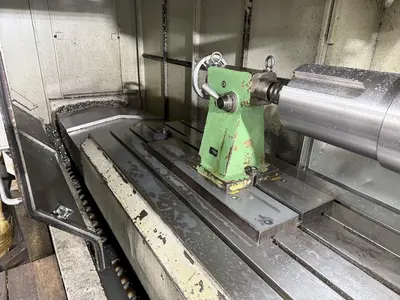

NOTE: 4TH AXIS NOT INCLUDED WITH SALE

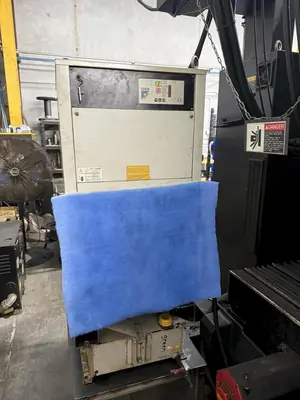

SPINDLE OIL CHILLER

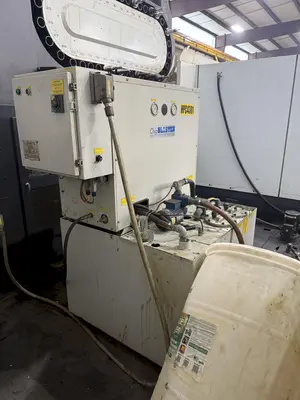

CHIP BLASTER HIGH PRESSURE COOLANT THROUGH THE SPINDLE

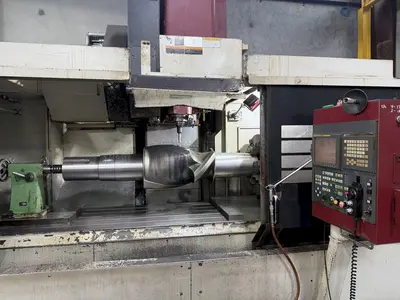

FANUC 160i CONTROL

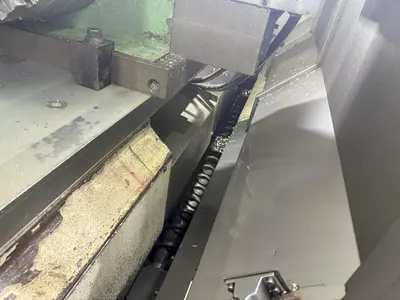

AUGER TYPE CONVEYORS WITH REAR LIFT UP

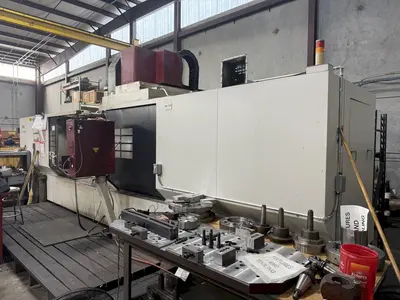

FULL ENCLOSURE
RUNNING AND OPERATING
