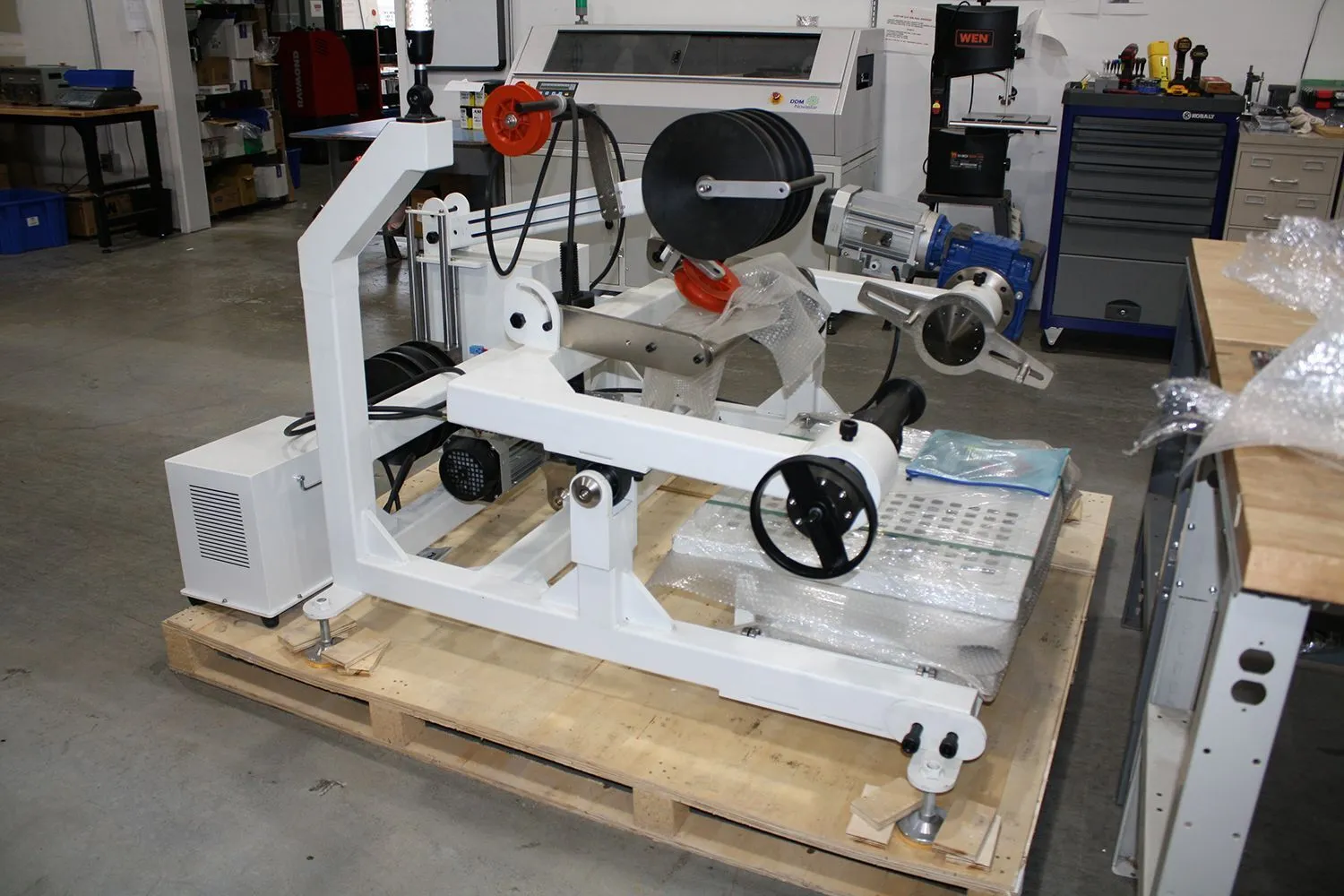

2020 Wirepro Automation Wire Spool Automatic Cable Dereeler. Unit was never put into service for anything other than testing.
| Max Weight Capacity | 700 kg | 1,543.2 lb |
| Max Width | 0 m | 0" |
| Max Diameter | 1,000 mm | 39.37" |
Available Wire Diameter ≤ Φ40mm
Available Spool Outer Diameter 500 -1000mm
Available Spool Inner Diameter 53 – 85mm
Available Spool Width 480 – 800mm
Max Load Weight 700kg
Spool Installation Electric lifting, double clamp top press type
Feeding Speed Adaptive speed regulation
Power Supply 380V, 3-phase
Power 3000W
Available Wire Wire, cable etc.
Drive Type Inverter & motor & reducer
Dimensions 165*180*160 cm
Packing Dimensions 175*190*170 cm
Weight 450kg
