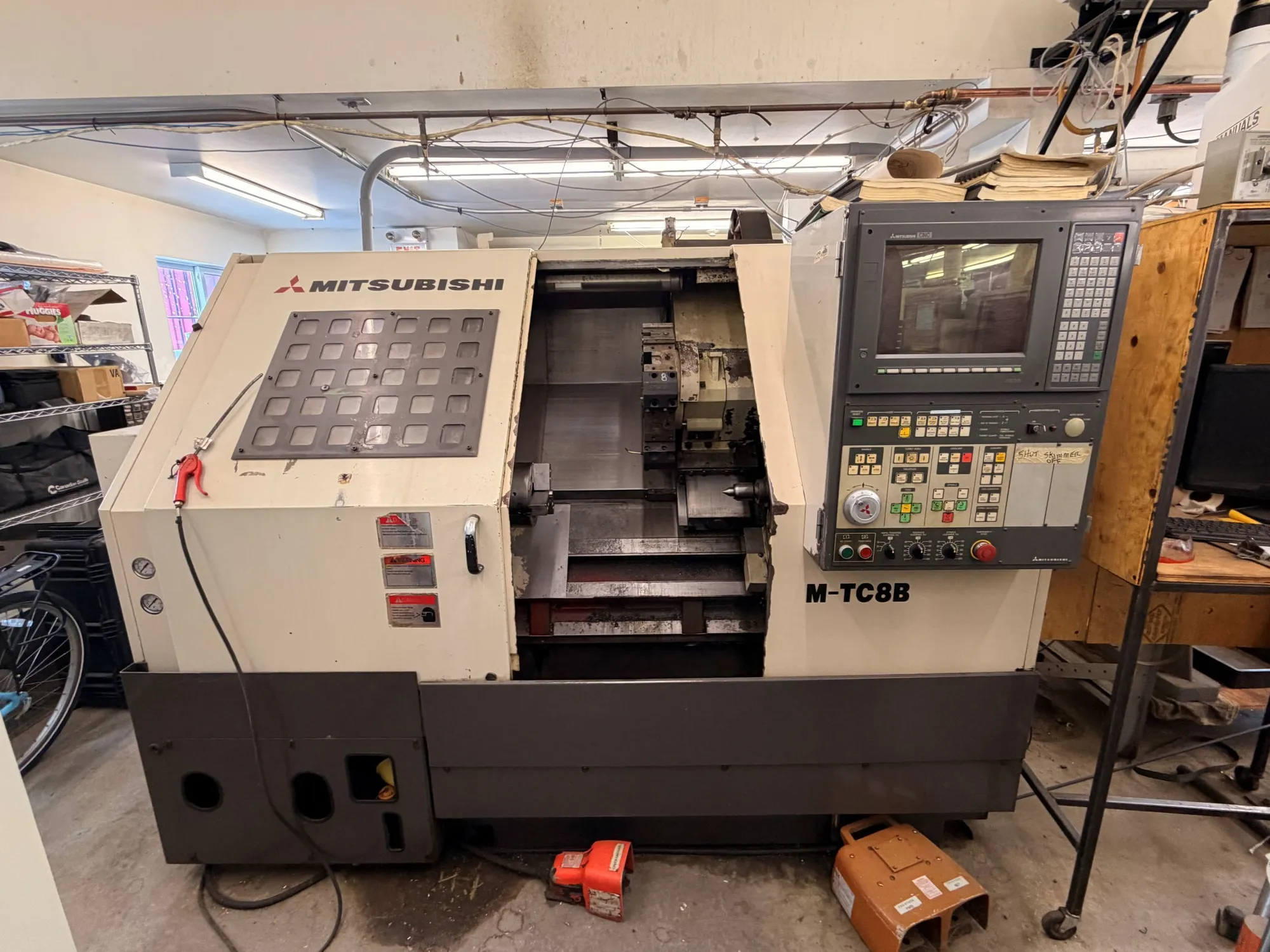

Mitsubishi CNC Slant Bed Turning Center
Model M-TC8B
Year 1994
Control Mitsubishi Meldas M325
| Swing | 23.6" | 599.44 mm |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 15" | 381 mm |
| Tailstock | 'Yes' | 'Yes' |
| Control | CNC (Mistsubishi) | CNC (Mistsubishi) |
| Weight | 9500 Lbs. | 9500 Lbs. |
Maximum turning diameter : 380mm (Ø15")
Swing over bed : 600mm (Ø23.6")
Maximum swing over carriage : 280mm (11")
Maximum distance between centers : 775mm (30.5")
Spindle speeds : 35 - 3500 RPM
Spindle thru hole : Ø2.56"(65mm)
Spindle nose : JIS A2-6
Axis travels : 8.1" (X) / 22" (Z) (200mmX560mm)
Rapid Traverse : 591 IPM (X) / 787 IPM (Z)
Turret stations : 12
Tailstock quill travel : 3.94" (100mm)
Tailstock center size : No. 5 MT
Approximate weight of machine : 9,500 lbs.
• Meldas M325 LG-V CNC Control w/ color graphics and conversational prog.
• 8" 3-jaw power chuck
• Foot pedal for chuck
• Programmable tailstock
• 10/15 HP main drive motor
• Chip conveyor
• Manuals
