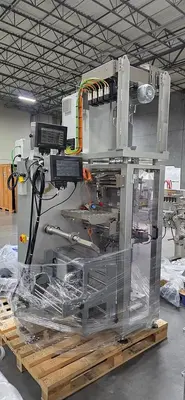

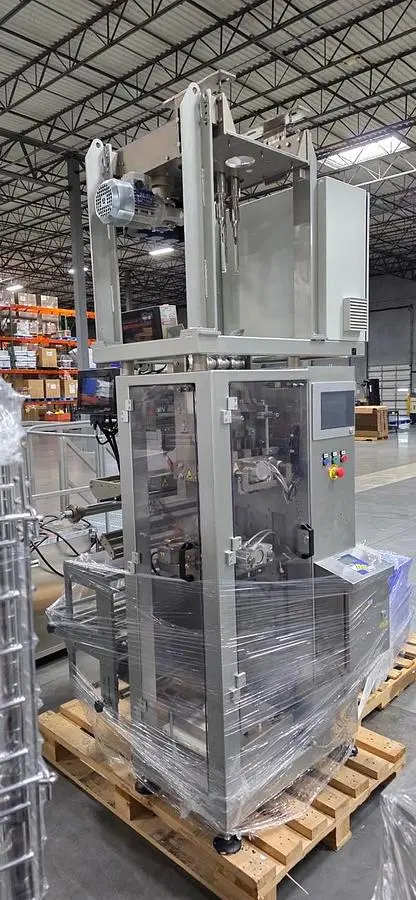

USED INEVER BY-300

The INEVER BY-300 is a pneumatically powered, mechanical cam drive operated stickpack machine designed for small to medium production outputs.

BY-300 operation is controlled by an HMI with PLC control

3. MACHINE FEATURES:
3.10 Construction:
steel on all product contact parts.
Painted steel gray frame and exposed parts; 316 stainless
3.11 Compressed air supply: 80 psi.

3.12 Voltage:
220 vac/3phase/60 Hz (other voltages available).

3.13 Volume Range:
1 to 10 grams variable via volumetric slide gate filler.

3.14 Overall dimensions: Approximately 3' wide X 3' long.

3.15 Size Parts:
One set of forming collars is included with the machine.
Width of package is not easily changeable once defined; length is variable via display screen.

3.16 Interface:
Auger filler for protein powder type products.

3.17 Controls:
Siemens PLC

3.18 Production Data:
Total bag count and speed.

3.19 Alarms:
Auto stop with heater cartridge failure, e-stop, open door.

3.20 Film Width:
Maximum 300mm wide X 300mm

The Inever BY300 4-Lane Stick Pack Machine is a versatile and reliable solution for efficient packaging needs. This used machine from Inever offers a compact design that is ideal for operations requiring precision and speed. It is equipped to handle stick pack formats with ease, making it suitable for a variety of products such as powders, granules, and liquids.

The BY300 is engineered for high performance, featuring an intuitive user interface that simplifies operation and reduces training time. Its four-lane capability increases productivity, allowing for multiple packages to be filled and sealed simultaneously, optimizing throughput. The machine's robust construction ensures durability and longevity, even under continuous operation.

This model is recognized for its low maintenance requirements and energy efficiency, which contribute to reduced operating costs. The Inever BY300 ensures consistent sealing quality and package appearance, enhancing product presentation. It is an excellent choice for businesses aiming to upgrade their packaging processes with a reliable and cost-effective stick pack machine.
