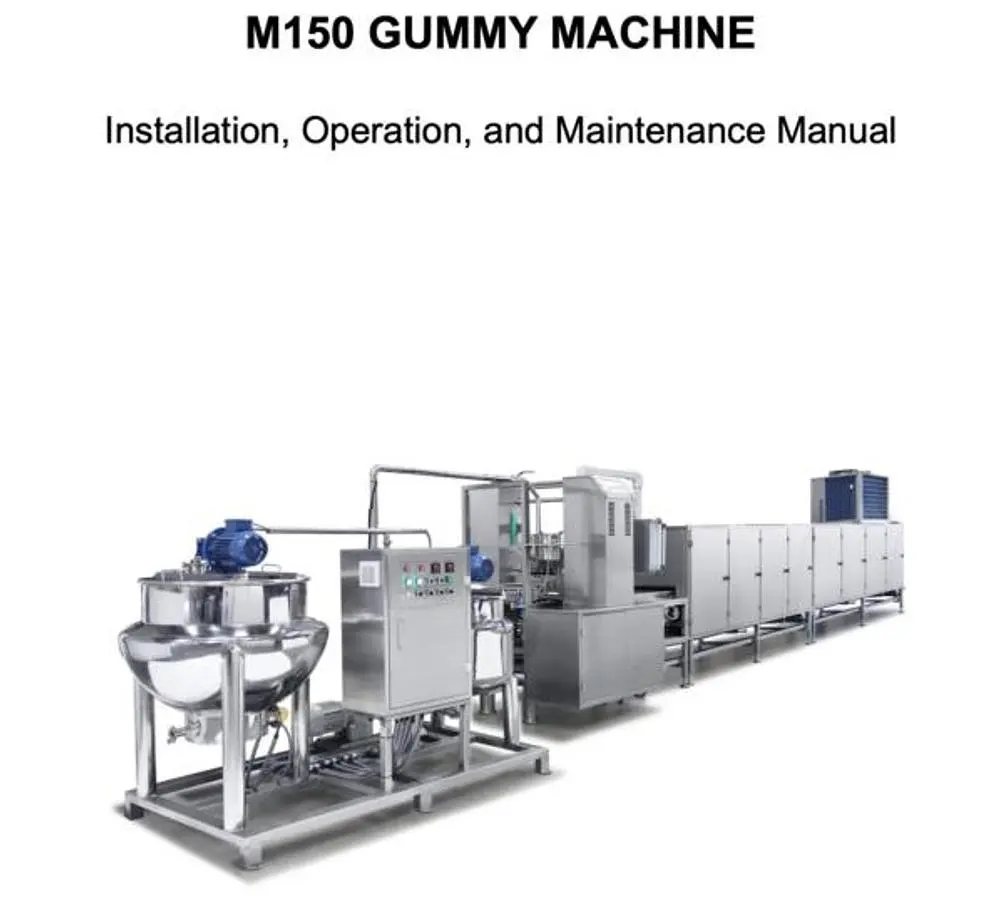

Complete Gummy line model M-150 year 2023

Description: M150 Gummy Machine Model No.: M150 Gummy Machine
Estimated Weight: Approx. 2400 Kg Power requirement: 460V – 60Hz – 3Ph Compressed air: 80 PSI @ 20 CFM Chilling Tunnel Airflow 380 ft/min (outside edge of tooling) A/C System – Freon Type 404a / 26lbs – Super Heat 9° F – Sub Cooling 10° F

Production Capacity

150kg/h

Electric Power Needed

220V/3hp/60Hz

Chiller (option)

10hp

Compressed Air Consumption

1.2m3 / min

Compressed Air Pressure

0.4-0.6 Mpa

Room Temperature (oC) For Cooling System

10~25

Humidity (%) For Cooling System

55

Length of the Whole Line (m)

68.6ft

Gross Weight (Kg)

Approx. 7500
