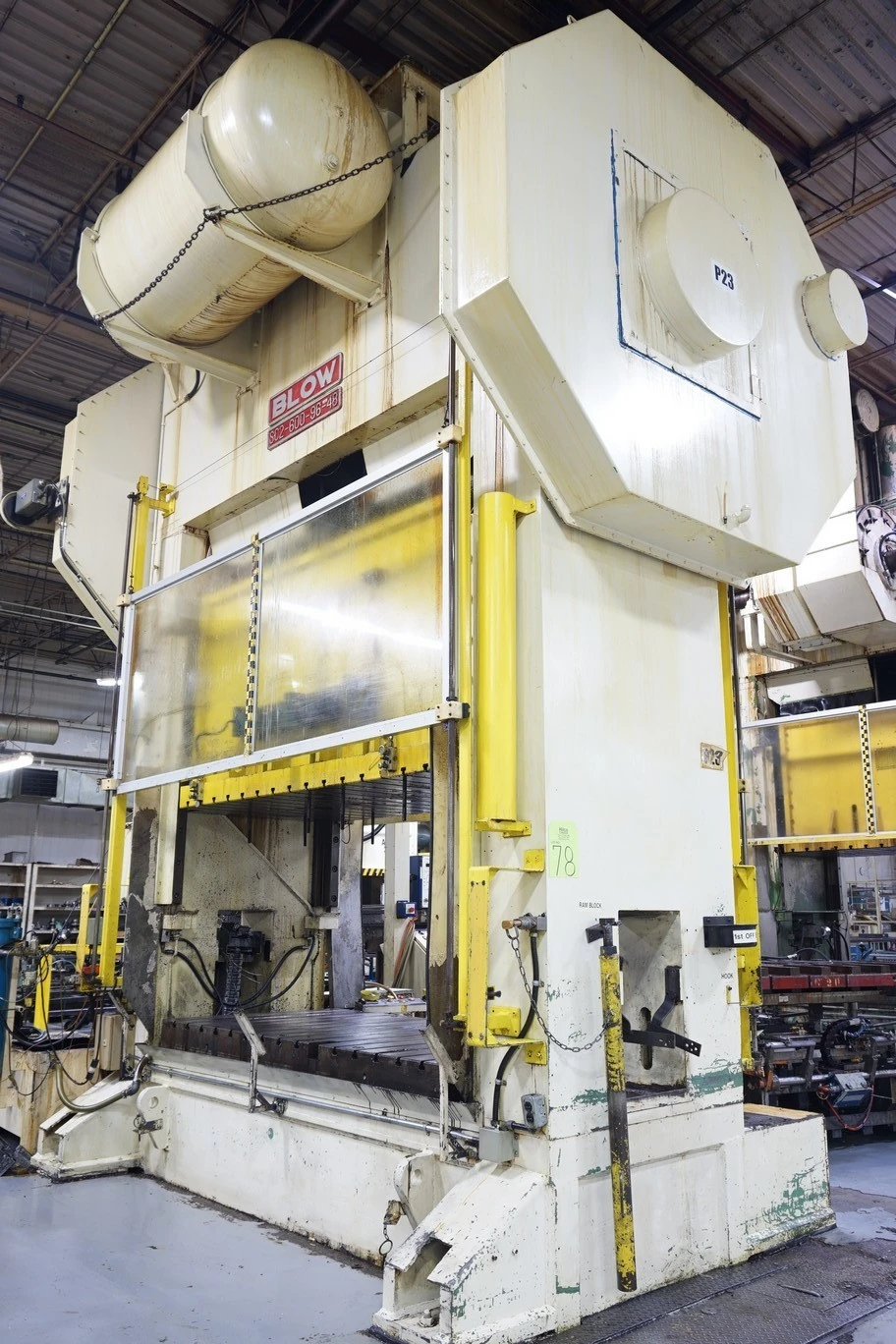

For sale: Used 1985 BLOW SDG-600-96-48, 600 Ton Straight Side Double Crank Press. Features include 96" x 48" bed, 16" stroke, 36" shut height, air clutch & brake, and operator control console. Ideal for heavy-duty operations.
| Ton | 600 T | |
| Bed L-R | 96 in | |
| Bed F-B | 48 in | |
| Stroke | 16 in | |
| Shut Height | 36 in | |
| Min Speed | 28 spm | 28 strokes/min. |
| Windows | 0 in |
Serial Number: SDG-600-23185
Capacity: 600 Ton
Stroke: 16”
Shut Height: 36”
Slide Adjustment: 10”
Bed & Slide Area: 96”LR x 48”FB
Speeds: 14 - 28 SPM Variable
Windows: 16”
Air Clutch & Brake
Twin End Drive
T-Slotted Bolster Plate
T-Slotted Slide
Operator Control Console
Estimated Breakdown Weights
Crown Ass'y - 65,000 Lbs.
Base and Bolster - 38,000 Lbs.
Columns, Tie Rods, Console, T-Stand, Flywheel guard and C'Balance Cylinders - 29,585 Lbs.
Air Receiver, Tie Rod Nuts, Slide and Misc. Parts - 29,000 Lbs.
