USED 2021 TSUGAMI B075-Ⅲ
Overview
Description

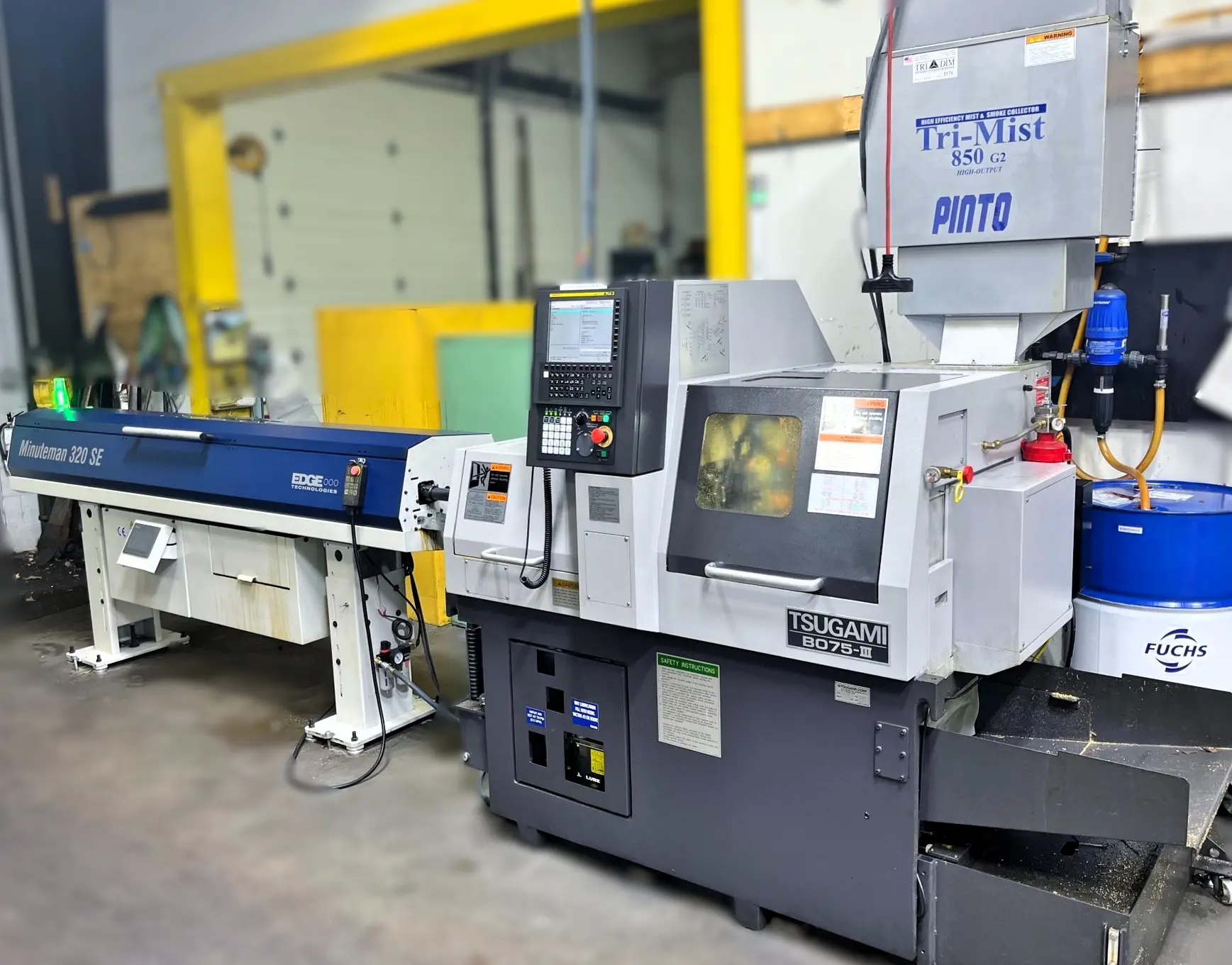

TSUGAMI B075-Ⅲ CNC Swiss Lathe, New in 2021.
Fanuc 0i-TF Plus Control.
Edge Minuteman 320SE Magazine Barfeed (6')
High Pressure Coolant.
Tri-Mist Mist Collector
Fire Suppression
Specifications
| Capacity | 7 mm | 0.2756" |
|---|---|---|
| Power | 2 hp | 1.5 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # Axis | 5 | 5 |
| Swiss, Chucker or Convertible? | Convertible | Convertible |
| Main Spindle Indexing | Full C | Full C |
| Sub-Spindle Indexing | Full C | Full C |
| Control | CNC (Fanuc 0i-TF) | CNC (Fanuc 0i-TF) |
General Specifications:
BAR CAPACITY 7 mm
MAX HEADSTOCK STROKE 2.76"
MAIN SPINDLE MOTOR 2 hp
MAIN SPINDLE INDEXING FULL C-AXIS
MAIN SPINDLE SPEED 15,000 RPM
BACK SPINDLE MOTOR 3 hp
BACK SPINDLE INDEXING FULL C-AXIS
BACK SPINDLE SPEED 12,000 RPM
TOTAL TOOL CAPACITY (POSITIONS) 21
TOTAL LIVE TOOL CAPACITY (POSITIONS) 4
LIVE TOOL SPEEDS 8,000 RPM
CONTROLLABLE AXES 5
Equipped With
FANUC 0i-TF PLUS CONTROL
SIMULTANEOUS AXES CONTROL
EDGE MINUTEMAN 320SE MAGAZINE BAR FEEDER (6’)
CHUCKER KIT (CONVERTIBLE FROM GUIDE BUSHING TO NON-GUIDE BUSHING)
DIRECT DRIVE ROTARY GUILD BUSHING
TF10 COLLET CHUCKS ON MAIN & SUB
FULL C-AXIS MAIN & SUB
MP SYSTEMS HIGH-PRESSURE COOLANT UNIT (2,000 PSI)
TRI-MIST MIST COLLECTOR
FIRETRACE FIRE SUPPRESSION
WORK CONVEYOR & PARTS CATCHER BASKET
** AS OF JANUARY 2026, CUTTING TIME – 7,578 HOURS
** MADE IN JAPAN
** MACHINE RAN OIL
** BUILT IN 2021 & INSTALLED NEW IN 2022
** MACHINE CUT PRIMARILY BRONZE & BRASS
