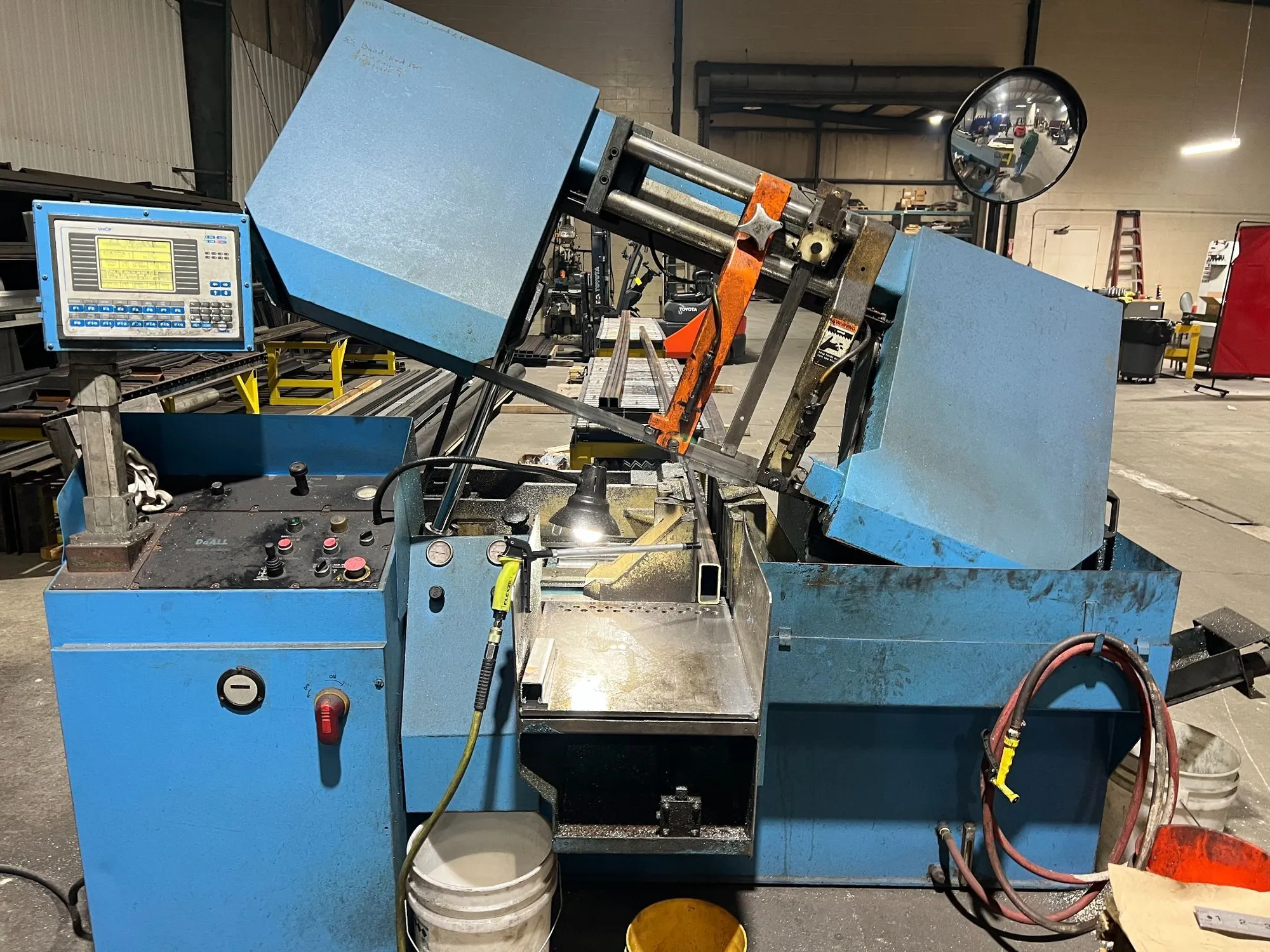

16" x 14" DOALL "C-4100NC" HEAVY-DUTY PROGRAMMABLE HIGH-PRODUCTION HORIZONTAL BAND SAW - UNIOP Programmable Control - Multiple Indexing - Automatic Hydraulic Stock Feed
| Rect-Cap (H) | 14" | 355.6 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 14" | 355.6 mm |
| Power | 10 hp | 7.5 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 1.5" | 38.1 mm |
| Blade Length | 183" | 4,648.2 mm |
| Weight | 6800 LBS | 6800 LBS |
16" x 14" DOALL HEAVY-DUTY PROGRAMMABLE
HIGH-PRODUCTION AUTOMATIC HORIZONTAL BAND SAW
Serial No. 524-00227, Model C-4100NC
EQUIPPED WITH:
UNIOP Programmable Control
Multiple Indexing
Automatic Hydraulic Stock-Feed Table
Hydraulic Stock-Feeding and Clamping Vises
Hydraulic Band Saw Up-Feed & Down-Feed
Automatic Hydraulic Band Tension
Built-in Coolant System w/Powered Chip Auger
CATALOG SPECIFICATIONS:
Maximum Capacity, Round Stock 16"
Maximum Capacity, Square Stock 14"
Maximum Capacity, Rectangular Stock 16"W x 14"H
Minimum Capacity, Round 1/2"
Single Length Index 24"
Multiple Length Index 999"
Minimum Length Index 1/4"
Band Length 186"
Band Width 1.25"
Band Speeds, Variable 40 to 360 FPM
Band Carrier Wheels, Diameter 21"
Band Motor, Horsepower 10 HP
Hydraulic Motor, Horsepower 2 HP
Overall Height 7'4"
Weight, Approximately 6800 LBS
F.O.B. OUR WAREHOUSE
