9" x 16" DOALL "C916-SA" AUTOMATIC SWIVELING-HEAD HORIZONTAL BAND SAW - 10.75” Rounds - 60-Degree Incremental Swivel Head - Automatic Indexing
| Rect-Cap (H) | 9" | 228.6 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 10.75" | 273.05 mm |
| Power | 2 hp | 1.5 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 172" | 4,368.8 mm |
| Weight | 2200 LBS | 2200 LBS |

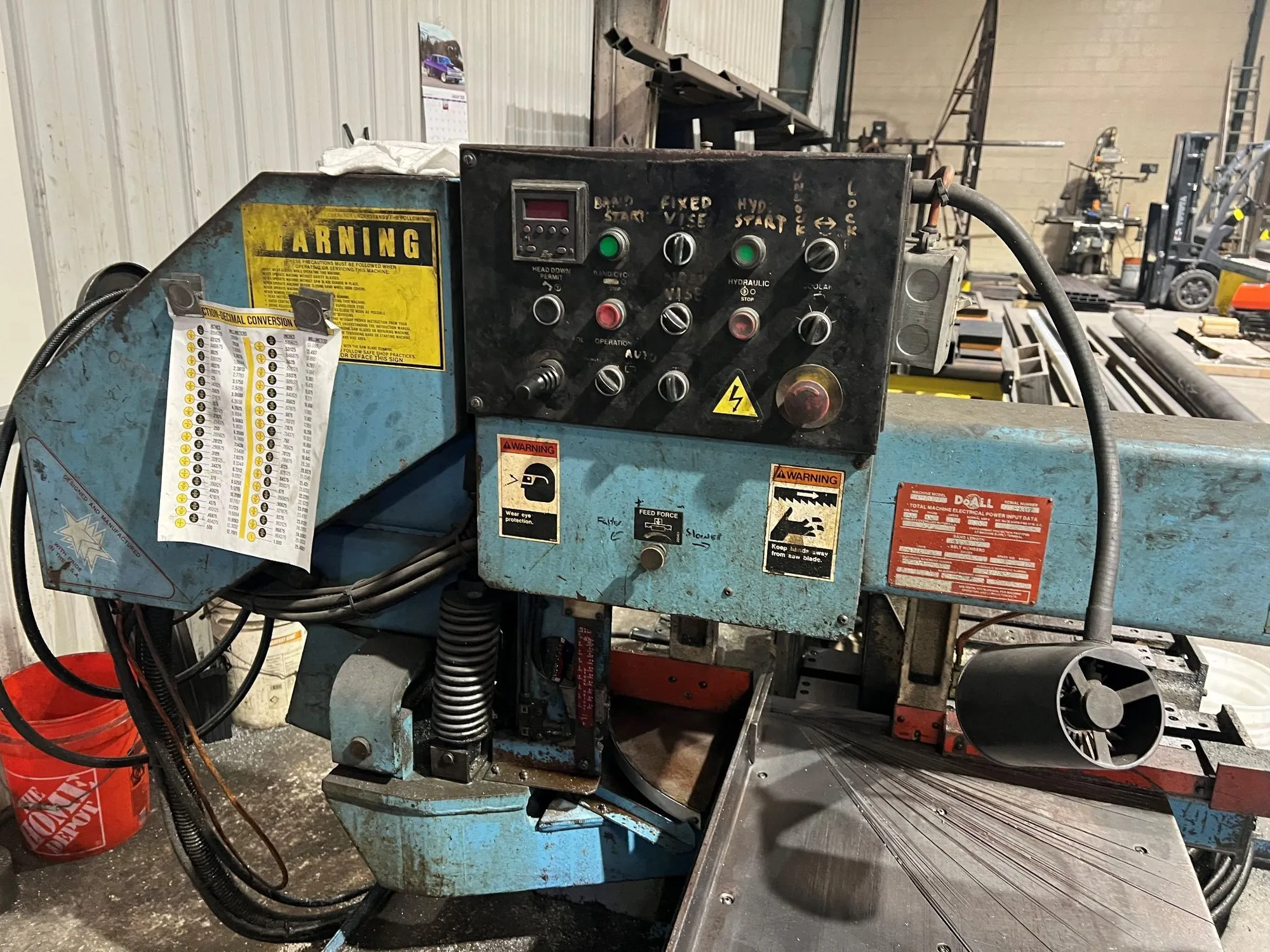

9" x 16" DOALL AUTOMATIC SWIVELING-HEAD HORIZONTAL BAND SAW
Serial No 533-96117, Model C-916SA
EQUIPPED WITH:
Automatic Indexing
Incremental 60-Degree Swiveling Head
Hydraulic-Controlled Spring Balanced Saw Head
Automatic Hydraulic Shuttle Vise
Infinitely Variable Hydraulic Feed Control
Infinitely Variable Speed Change
CATALOG SPECIFICATIONS:
Rectangular Stock Capacity, 90-Degrees 9" x 16"
Round Stock Capacity, 90-Degrees 10.75""
Rectangular Stock Capacity, 45-Degrees 9" x 10.75"
Round Stock Capacity, 45-Degrees 10.75"
Rectangular Stock Capacity, 60-Degrees 9" x 7"
Round Stock Capacity, 60-Degrees 7"
Index Length, Range 0.25 to 40"
Band Length 170"
Band Width 1"
Band Thickness .035"
Band Speeds, Variable 105 to 275 FPM
Band Tension 30000 PSI
Band Wheels, Diameter 14.5"
Motor, Horsepower 2 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 7'4" x 3'8"
Weight, Approximately 2200 LBS
F.O.B. OUR WAREHOUSE
