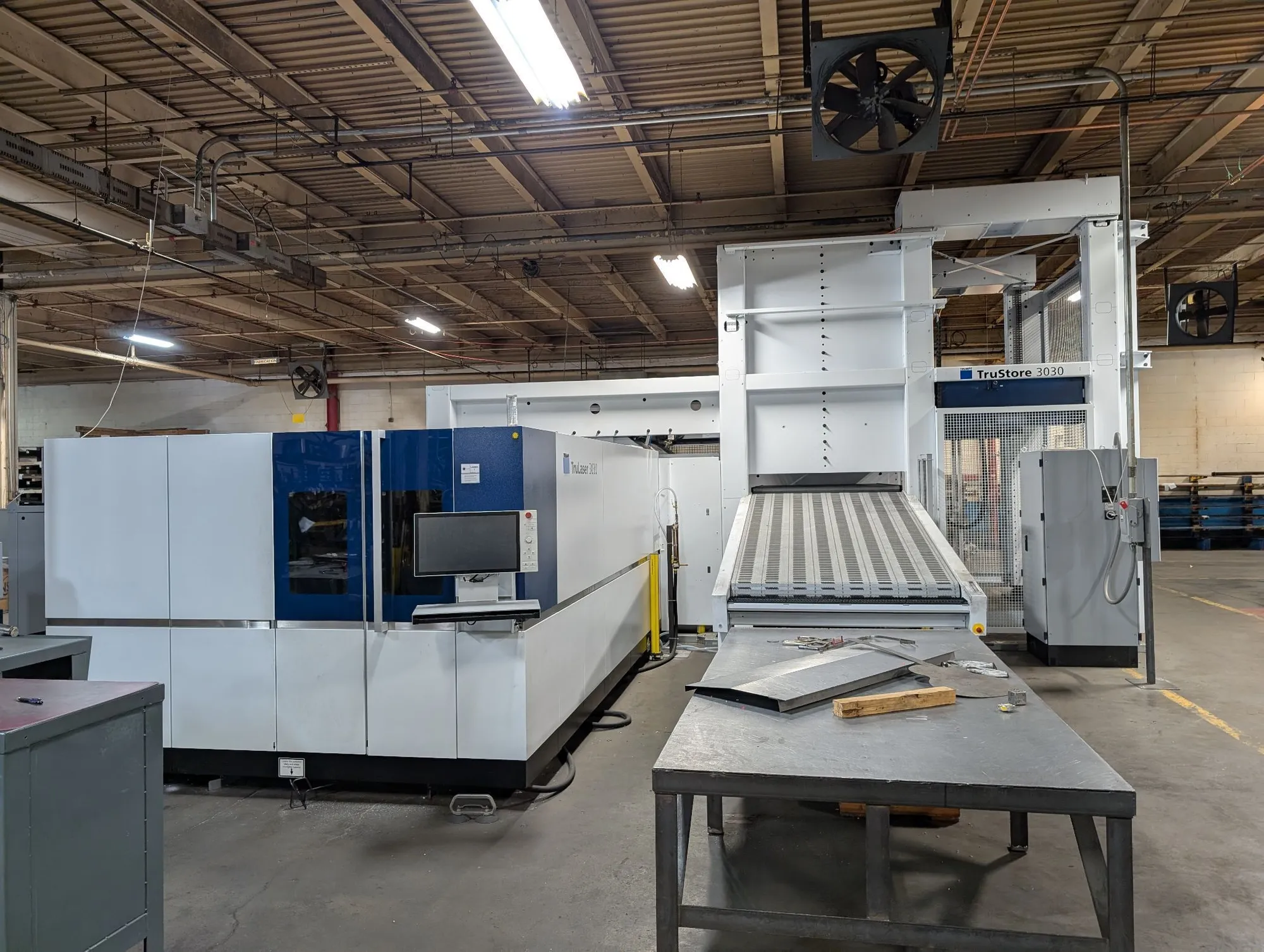

USED 2023 TRUMPF TRULASER 3030 FIBER
Overview
Description
2023 TRUMPF TRULASER 3030 FIBER Laser Cutter, used. Features X: 3000 mm, Y: 1500 mm, Z: 115 mm, 3000 watts, cuts sheets up to 1500 x 3000 mm, 140 IPM. Ideal for precision industrial cutting needs.
Specifications
| Sheet-W | 1,500 mm | 59.055" |
|---|---|---|
| Sheet-L | 3,000 mm | 118.11" |
| Wattage | 3000 w | 3,000 W |
| IPM | 140 mpm | |
| X | 3,000 mm | 118.11" |
| Y | 1,500 mm | 59.055" |
| Z | 115 mm | 4.5276" |
Laser Power: 6,000 Watts (TruDisk 6001 Fiber Oscillator).
Work Area: 120" (X-axis) x 60" (Y-axis).
Max Sheet Size: 5' x 10' (60" x 120").
Max Workpiece Weight: ~1,984 lbs (or higher with heavy-duty pallets).
Control: Siemens Sinumerik 840D SL.
Positioning Speed: Up to 5,512 IPM (simultaneous).
Max Cutting Thickness (Mild Steel): ~1 inch (depending on specific features)
BrightLine Fiber: Enables high-quality cutting of thin sheet metal.
CoolLine: Cools the cutting area for better quality on thick materials.
Automatic Nozzle Changer: For process optimization.
High-Speed Cutting Head: For faster processing.
Automation: Often paired with LiftMaster Compact for automated loading/unloading.
Dual Pallet Shuttle System: Allows for continuous production
Approx. Weight: ~22,880 lbs (machine & automation).
Control: SIEMENS SINUMERIK 840D SL
