USED 2008 BROTHER TC-22B

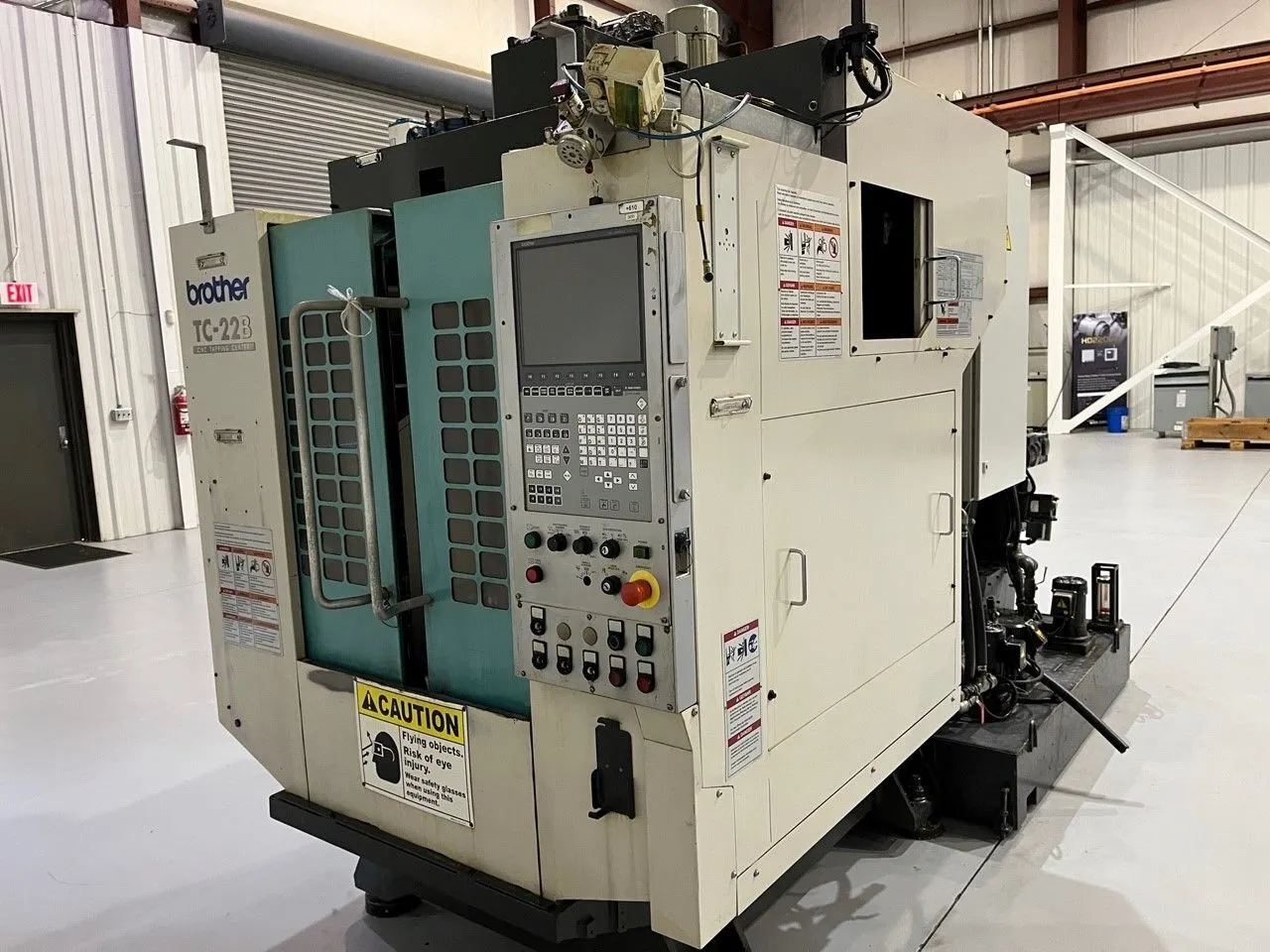

Brother TC-22B Drilling & Tapping Center, New in 2008

General Specifications:

TRAVEL:
X-axis: 19.7"
Y-axis: 17.7"
Z-axis: 16.1"
Distance between tabletop to spindle nose: 26"

TABLE:
Work area size: 25.6" x 17.7"
Maximum loading capacity: 551 lbs.
Table surface: T slotted

SPINDLE:
Spindle speed IPM motor: 16 - 16,000 RPM
Tapping speed: 8,000 RPM
Spindle taper: 7/24, #30 Taper

FEED RATE:
Rapid traverse X, Y & Z-axis: 2,755 IPM
Cutting feed rate: 0.04-787 IPM

ATC:
Tool storage capacity: 27
Tool shank type: MAS-BT30
Pull stud type: (BT30) MAS-P30T-2
Maximum tool diameter: 4.9"
Maximum tool length: 9.8"
Maximum tool weight: ( 176 lbs. total in magazine) 7.7 lbs.
Tool selection: Random Path
Tool Change time: (tool-to-tool in seconds) (chip-to-chip in seconds) 0.9 / 2.4

MOTORS:
For IPM spindle: 13.41 / 9.8 HP
For axis feed X, Y & Z-axis: 1.74 HP
Z-axis thrust: 2005 ft-lbs.
POWER SOURCE:
Power supply: 200V-230V, 3-Ph. +-10% 50/60Hz
Power capacity KVA for IPM (max): 18 (37)
Working air pressure MPa: 0.4-0.6 (4-6kg f/cm2 )
Required air flow L/min: 180

Machine Dimensions: 58.9" x 122.1" x 99.9"
Machine Weight: 6,129 lbs

CNC-B00 control
Auto door
Robotic signal exchange
150L coolant tank
Shower coolant, ceiling cover w/ mist collector
Spindle taper coolant wash
Air “SenSoric 1 & 2”
Central auto lubrication unit (Vogel)
Hakusan chip conveyor, drum type, w/ high pressure coolant
Leveling pads (4)
