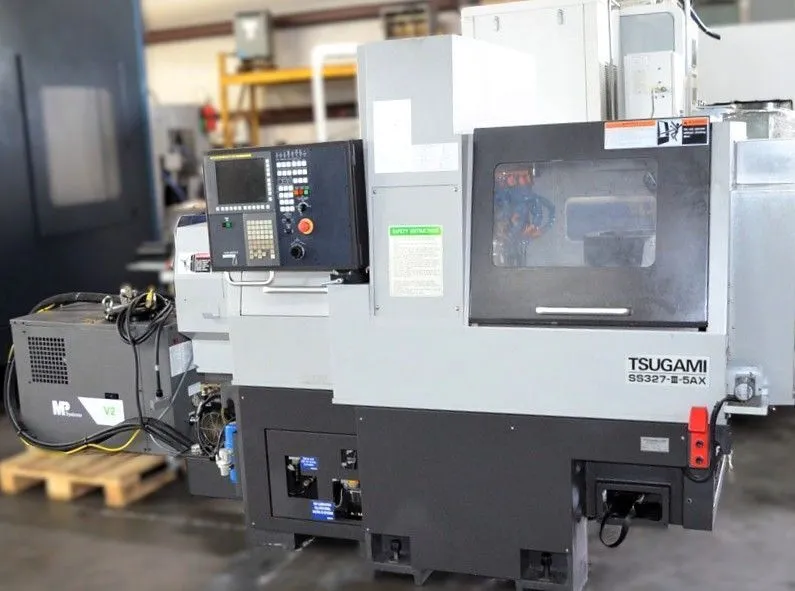

USED 2022 TSUGAMI SS327-III-5AX
Overview
TSUGAMI SS327-III-5AX 9-Axis CNC Swiss Lathe, New in 2022.
Fanuc 31i-B5.
Simultaneous All Axes Control.
Sub Spindle Y-Axis Positioning.
Chucker Kit.
High Pressure Coolant.
Tri-Mist Mist Collector.
Edge Patriot 3-38 6’ Magazine Style Bar Feeder (cap 0.118 – 1.5”)
Specs
General Specifications:
Max Machine Dia (Guide Bushing Mode): 1.25” (32mm)
Max Machine Dia. (Chucker Mode): 1.5” (38mm)
Max Machining Length70mm / 2.76”
Max Back Spindle Chucking Diameter32mm 1.25”
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing 320mm / 12.59”
Max Headstock Stroke w/o Guide Bushing 70 mm / 2.74″
(4) ID Positions, Main or Sub
(4) Live Back Working Stations
(4) Static Back Working Stations ID or Turning
(8) 5/8” Square Turning Tool Positions Main Spindle
(8) Driven Tool Positions Main Spindle, (2) Cartridge Type
(4) Sub Side Driven Tools
Main Spindle Speed 200 – 8,000 rpm
Sub Spindle Speed 200 – 8,000 rpm
Live Tool Speed 200 – 6,000 rpm (B-axis tools)
Main Spindle Motor 3.7 /5.5kW (5 / 7.5 HP)
B-Axis Speed: 7000 RPM
Weight 7,936 lbs.
Footprint: W x D x H84.6” x 50.3” x 79.1”
Equipped With
Fanuc 31i-B5 CNC with 10.4” Color LCD
Simultaneous All Axes Control
Avile Programming Software
B-Axis Brake
B-Axis Tool Spindle and Drive
B-Axis Speed: 7000 RPM
Parts Catcher with Parts Conveyor and Basket
Sub Spindle Y-Axis Positioning
Chucker Kit
St. Lights
High Pressure Coolant 8 Port 1000 PSI, Water (MP Sys)
Tri-Mist Mist Collector
Chip Conveyor
Thru Sub High Pressure Coolant
Oscillation Cutting (X1/Z1 Axes) Oscillates a Servo Axis to Help Break Chips in Tough to Cut Materials
Edge Patriot 3-38 6’ Magazine Style Bar Feeder (cap 0.118 – 1.5”)
Rotary Table Carousel 2100-20 (21” Table Dia with 20 bins) M-Code Driven
