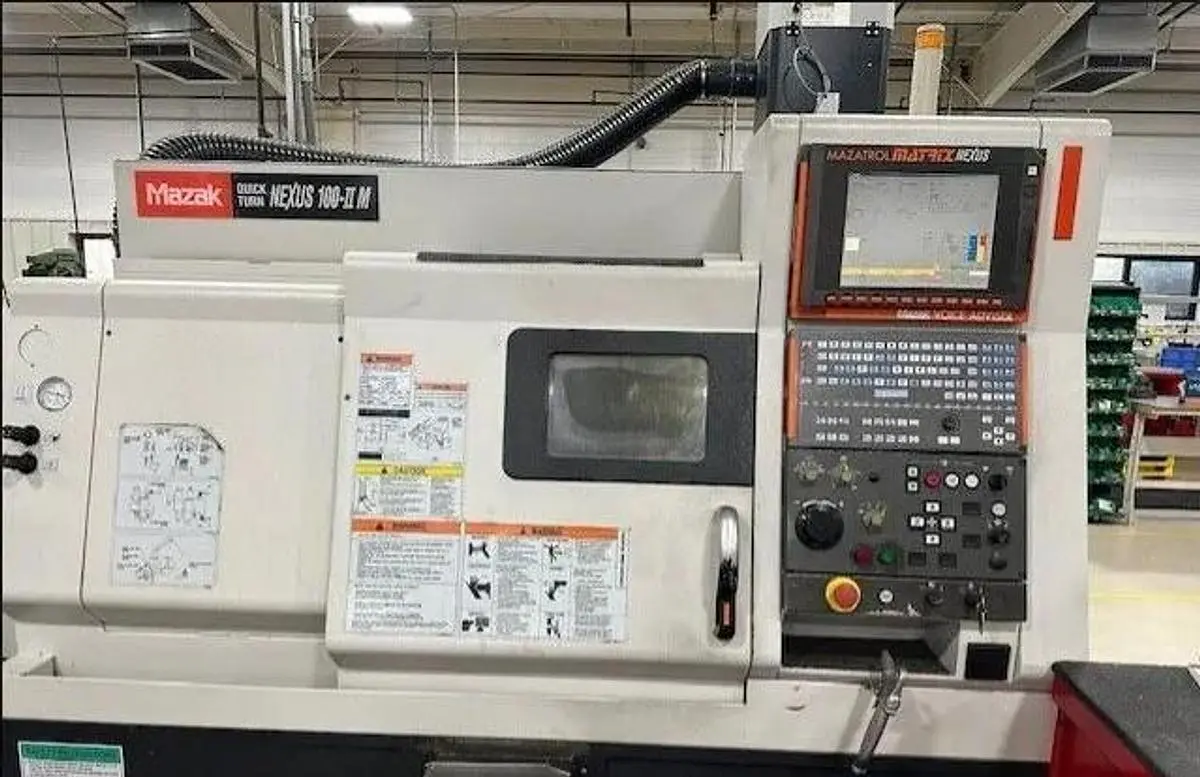

USED 2006 MAZAK NEXUS QTN 100-II M

Full C Axis Spindle Rotation
Live Milling / Drilling Capability

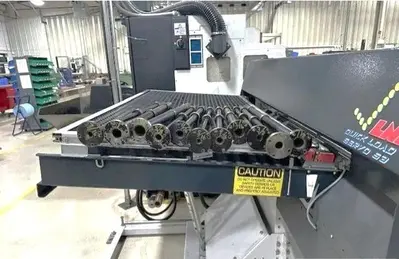

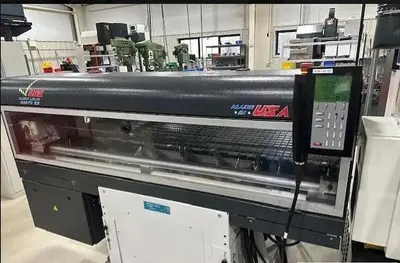

LNS Quick Load Servo S3 Short Bar Feeder
Automatic Tool Eye
Parts Catcher

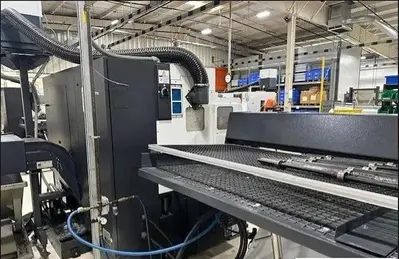

Rear Exit Chip Conveyor
Tailstock

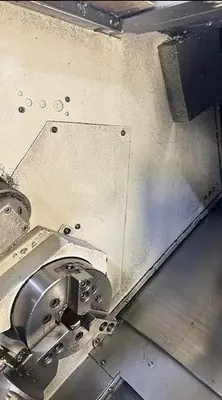

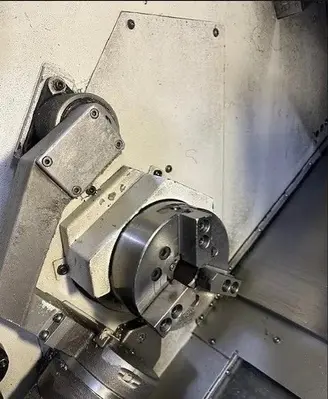

6" 3 Jaw Hydraulic Chuck

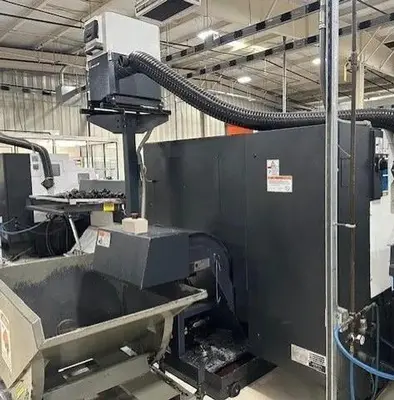

Mist Collector
Background Tool Path Check
Milling Spindle Synchronous Tapping
Automatic Chuck Jaws Open/Close
Chuck Air Blast
Complete Coolant System w/ Tank & Pump
Memory Card Interface
Network Interface
3.5" Floppy Disk Drive Interface
RS 232 Port Interface

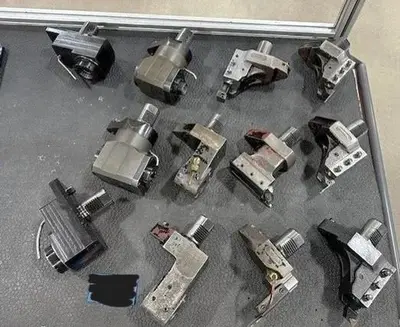

(14) Static Holders
(4) Live Tool Holders
(11) Spindle Lineres
All Available Manuals

**Very Low Hours**

The 2006 Mazak Nexus QTN 100-II M is a versatile CNC lathe equipped with features suited for precision machining. It comes with a Mazatrol Matrix Nexus Control system, providing intuitive operation and efficient programming. The machine boasts a 6" 3-jaw hydraulic chuck and a maximum swing of 21.6", allowing for a cutting diameter of up to 11" and a length of 12.1". With a maximum bar capacity of 1.625", it effectively handles a range of materials.

This model is fitted with a robust 15 HP spindle motor capable of reaching speeds of 6,000 RPM, complemented by live tooling that delivers up to 4,500 RPM powered by a 5 HP motor. The 12-station turret provides flexibility in tool handling, optimizing the machining process. Axis travels include 15.12" on the X-axis and 13" on the Z-axis, with rapid traverse rates of 1181 IPM and 1299 IPM respectively, ensuring quick and precise positioning.

Additional features like the full C-axis milling capability, chip conveyor, LNS short barfeed, parts catcher, tailstock, and tool eye enhance the machine's efficiency and ease of operation. With dimensions of 78" x 65" x 70" and a weight of 8,597 lbs., this lathe fits well in a variety of production environments, ensuring both performance and reliable output.

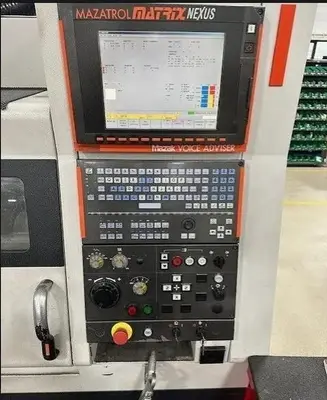

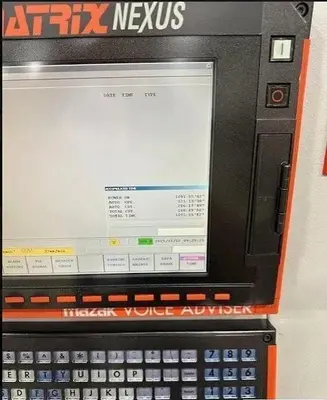

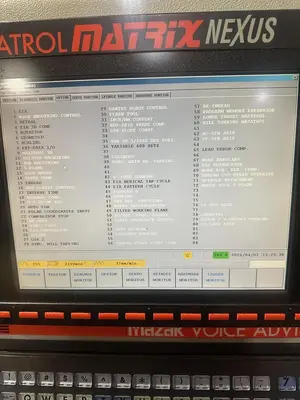

Control: Mazatrol Matrix Nexus Control
Chuck Size: 6" 3-Jaw Hydraulic
Maximum Swing: 21.6"
Maximum Cutting Diameter: 11"
Maximum Cutting Length: 12.1"
Maximum Bar Capacity: 1.625"
X-Axis Travel: 15.12"
Z-Axis Travel: 13"
Spindle Nose / Spindle Bore / Bar Capacity: A2-5" / 2.4" / 2"
Spindle Speeds: 6,000 RPM
Spindle Motor: 15 HP
Live Tooling Speed / Live Tooling Motor: 4,500 RPM / 5 HP

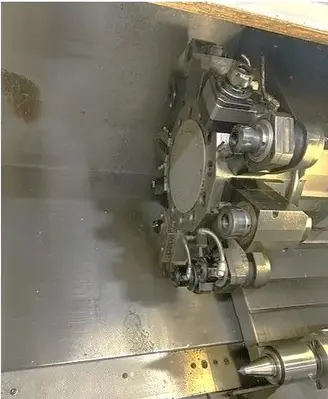

Number of Turret Positions: 12 Station Turret
Rapid Traverse Rates X / Z: 1181 IPM / 1299 IPM
Machine Dimensions: 78" x 65" x 70" machine only
Machine Weight: 8,597 lbs.
