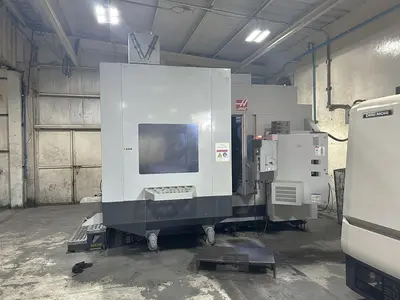

USED 2019 HAAS EC-1600ZT

4th Axis Drive & Wiring

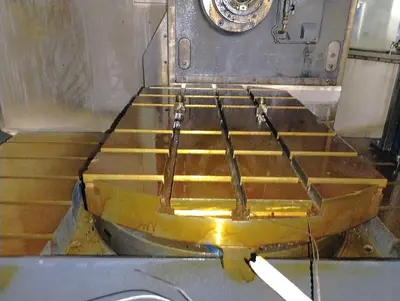

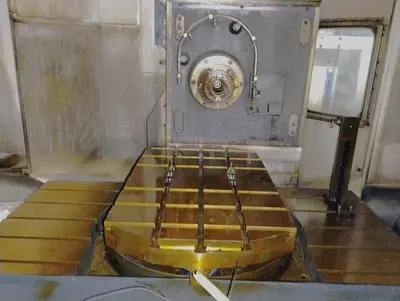

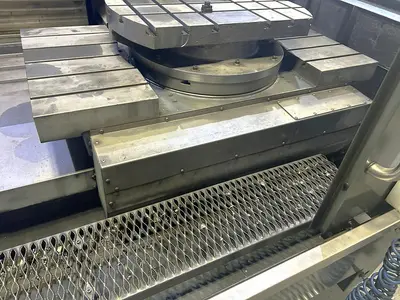

Full 4th Built-in 30" Rotary Platter
Extended Z-Axis Travel
Coolant Through the Spindle
Wireless Intuitive Probing System
Hand Held Pendant Control
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Visual Part Programming System
30 Station Tool Changer
Rigid Tapping
CAT 50 Taper Geared Head Spindle
Dual Auger Style Chip Conveyor System
Media Display
Compensation Tables
1GB Program Storage
15" Color LCD Monitor
Wireless Networking
USB Port Interface
RS 232 Port Interface
Memory Lock Key Switch

**Cycle Start Hours 6,071**
**Feed Cutting Hours 5,323**

**Price new as equipped at roughly $466,475**

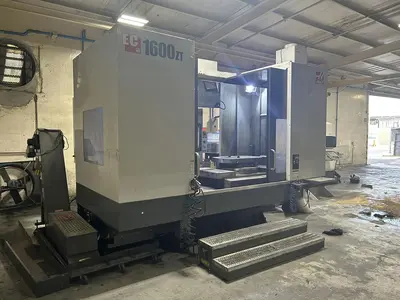

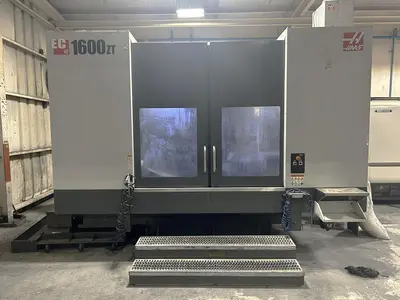

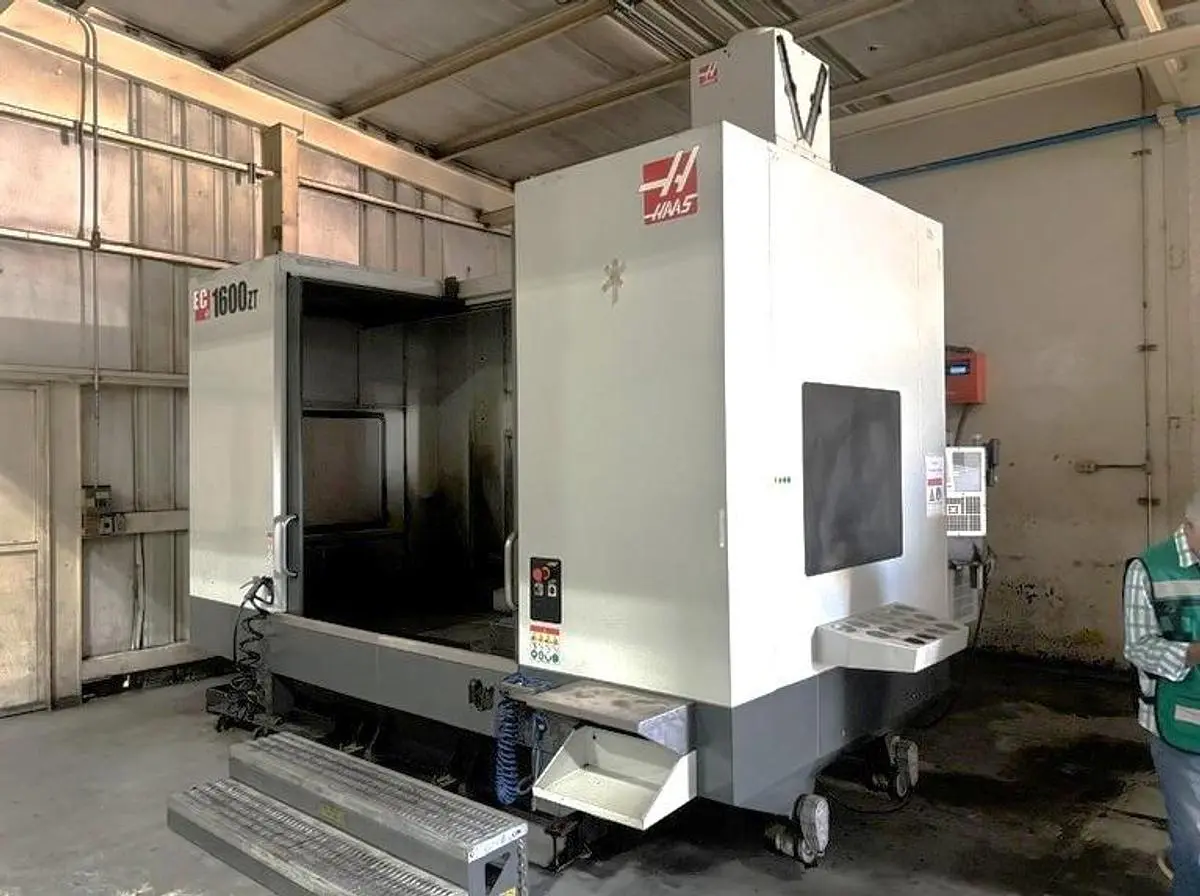

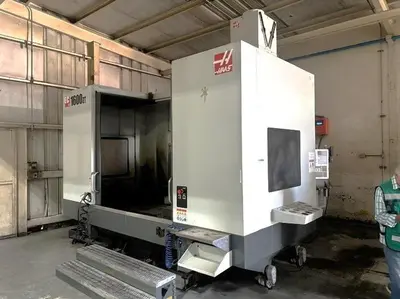

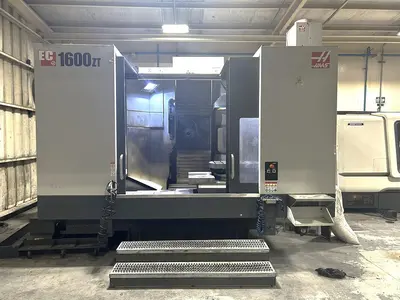

The 2019 Haas EC-1600ZT is a robust CNC horizontal machining center equipped with several advanced features. Notably, it includes an extended Z-axis travel of 40 inches and a capable integrated 4th axis platter, enhancing its versatility for complex machining tasks. The machine supports a large workpiece with a table size of 64" x 36" and can handle a maximum table load of 10,000 lbs.

Powering the machining operations is a 30 HP spindle motor with a 2-speed geared head, capable of reaching speeds up to 7,500 RPM. This model boasts a 30-position tool changer, providing efficient tool management and reducing downtime. Rapid traverse rates are quoted at 540 inches per minute, allowing for swift transitions between machining tasks. Additionally, the inclusion of Through-Spindle Coolant (TSC) and Renishaw probing enhances precision and workflow efficiency.

With a significant weight of 35,000 lbs and dimensions of 192" x 166" x 136", the EC-1600ZT is a substantial piece of equipment suited for heavy-duty machining tasks. Operated via the Haas NextGen Control, this machine is built for reliability and precision in demanding industrial applications.

Machine Control: Haas NextGen Control
Table Size: 64" x 36"
Maximum Table Load: 10,000 lbs
B-Axis Table Rotation: Full 4th Axis
X-axis travel: 64"
Y-Axis Travel: 50"
Z-Axis Travel: 40"
Spindle Taper: CAT 50
Spindle Speed: 7,500 RPM
Spindle Motor: 30 HP 2-Speed Geared Head
Tool Magazine Capacity: 30 Position Tool Changer
Rapid Traverse Rates: 540 IPM
Maximum Tool Diameter / Length / Weight: 10" / 20" / 30 lbs
Machine Dimensions LxWxH: 192" x 166" x 136"
Machine Weight: 35,000 lbs
