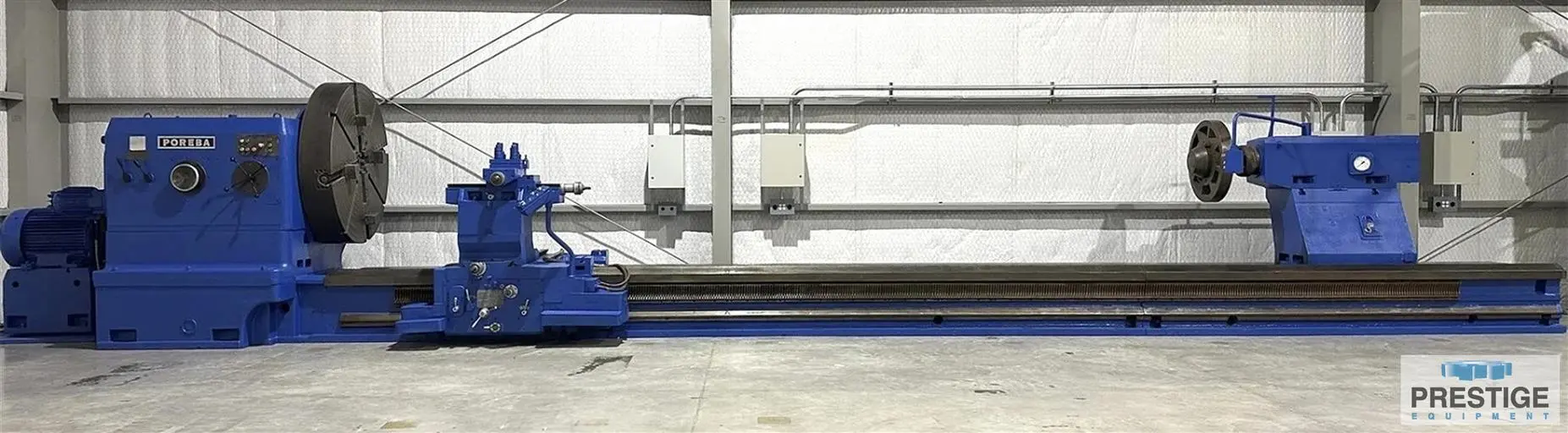

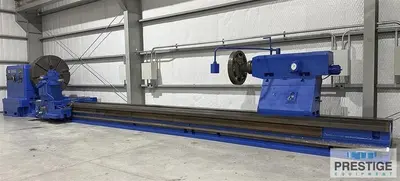

USED 1977 POREBA TCG-160/10M RAISED

SPECIFICATIONS:
Maximum Swing Over Bedways: 92"
Maximum Swing Over Carriage: 78"
Distance Between Centers: 393.7"
Spindle Speeds: 0.8-160 RPM
Spindle Speeds, Number: 24
Spindle Speed Ranges: 3
Spindle Bore: 4.13"
Spindle Torque, Maximum: 63,000 Nm
Width of Bed: 59.05"
Weight Capacity Between Centers: 66,000 Lbs
Weight Capacity with One Steady Rest: 77,000 Lbs
Weight Capacity with Two Steady Rest: 88,000 Lbs

Equipped With:
63" 4-Jaw Independent Chuck
Operator Controls On Carriage
Inch/Metric Threading
6-Way Power Rapid Traverse
Power Compound
Power Tailstock and Quill
Hardened & Ground Replaceable Bedways
Hardened and Ground Gears & Spline Shafts
Heavy Duty Meehanite Casting
100 HP Main Drive 440 Volt

Note:
This lathe has been Raised.

Features:
63" 4-Jaw Independent Chuck
Inch/Metric Threading
66,000 Lbs Unsupported Weight Capacity
100 HP Main Motor
