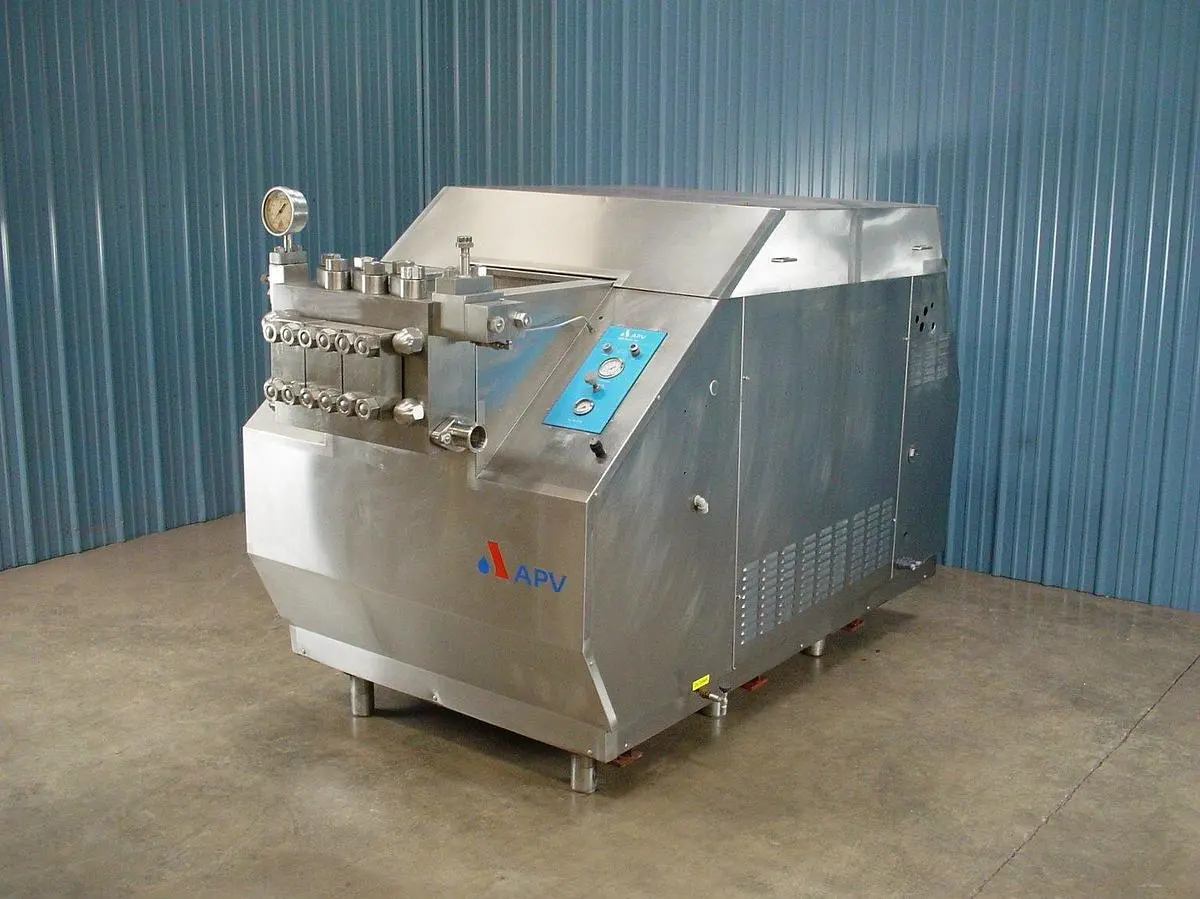

USED 1994 APV GAULIN MODEL MS45 5TBS

APV Gaulin Model MS45 5TBS stainless steel clad high-pressure homogenizer configured with a two-stage homogenizing valve assembly (HVA). Unit features 2-1/8" diameter plungers and a 5,000 PSI tapered seat ball valve cylinder, designed for continuous emulsification, dispersion, and particle size reduction of liquid products. Operating capacity ranges from a minimum of approximately 1,000 GPH up to a maximum of approximately 2,270 GPH, depending on product characteristics and operating pressure. Built for sanitary processing environments, this homogenizer is suited for demanding food, beverage, dairy, and industrial liquid applications requiring consistent particle size reduction and stable emulsions.

Offered Reconditioned

Stock Number: 5991689
Manufacturer: APV Gaulin
Model: Model MS45 5TBS
Year: 1994
Serial Number: 79412607
Capacity: 2,270 GPH (Maximum)
Type: High-Pressure Homogenizer
Plunger Diameter: 2-1/8"
Valve Type: Tapered seat ball valve cylinder
Maximum Pressure: 5,000 PSI
Capacity (Maximum): 2,270 GPH
Basis: FOB
