USED AMFEC 610

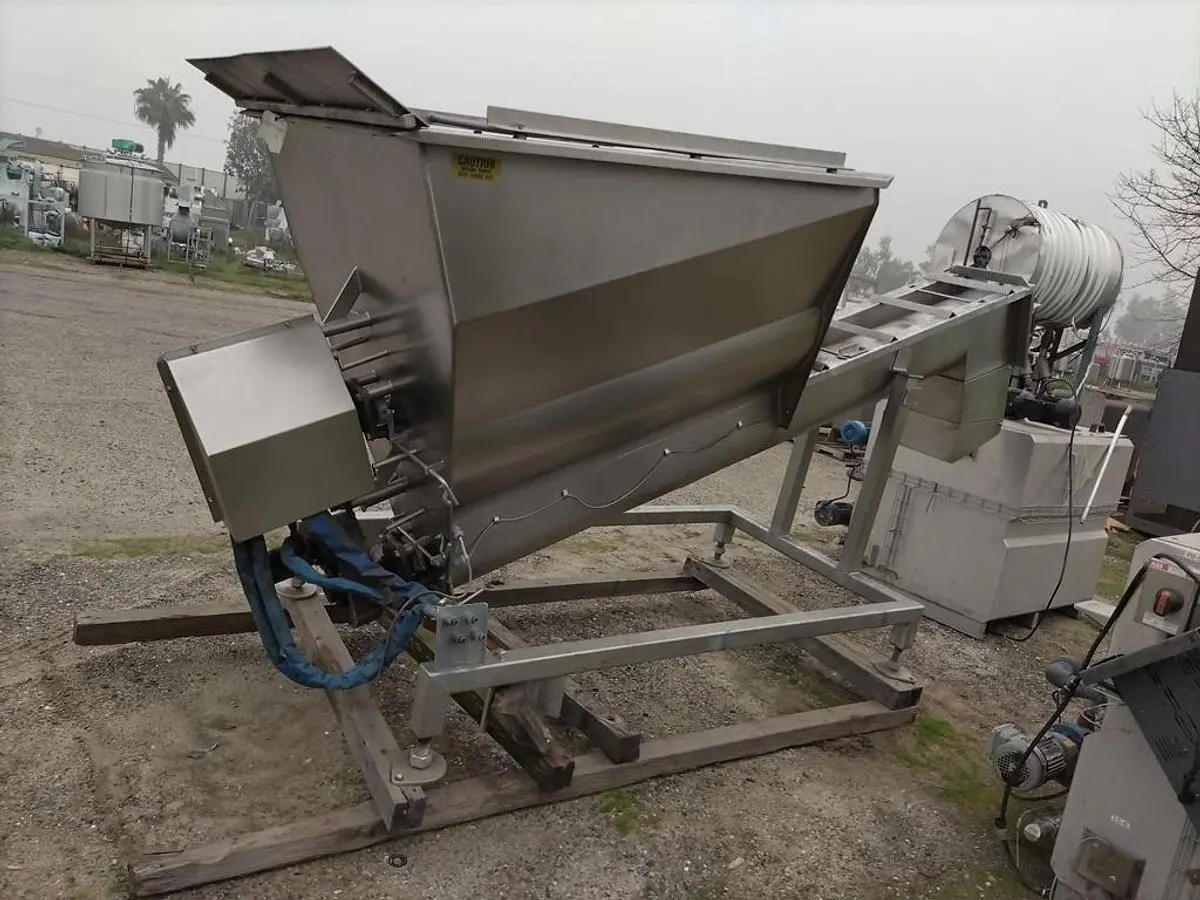

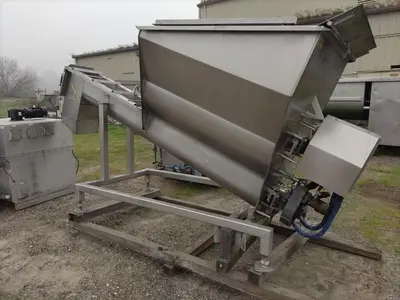

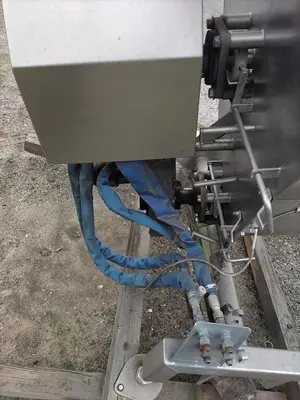

AMFEC Model 610 tainless steel receiving bin with an approximate capacity of 85–90 cu ft, designed for controlled intake and discharge of bulk materials. Unit is equipped with an internal ribbon agitator and paddle-style flow assist. Hopper includes a rectangular trough measuring approximately 13" x 13", with overall hopper dimensions of approximately 47" W x 5' L x 5' deep at the high end and 47" deep at the low end. The ribbon agitator is constructed with a 3" diameter shaft and 1/4" thick x 3-1/2" wide ribbon flights on an 11" pitch, with (2) internal paddles measuring approximately 1/4" thick x 13" L x 15" W. Material discharges through a 13" x 14" outlet into an inclined stainless steel auger featuring a 12" diameter screw mounted on a 3" shaft, elevating product to an approximate discharge height of 54". Unit is mounted on a rigid frame with adjustable leveling feet and is designed as a receiving and surge bin with flow-assist and metered discharge.

Stock Number: 5991688
Manufacturer: AMFEC
Model: 610
Serial Number: 9611100
Cubic Feet: 85 cu ft (Estimate)
Materials of Construction: Stainless Steel
Hopper Dimensions: Approx. 47" W x 5' L x 5' deep
Trough Dimensions: Approx. 13" x 13"
Auger Diameter: 12"
Auger Shaft Diameter: 3"
Discharge Height: Approx. 54"
Basis: FOB
