USED 1992 CRESS C122012DK

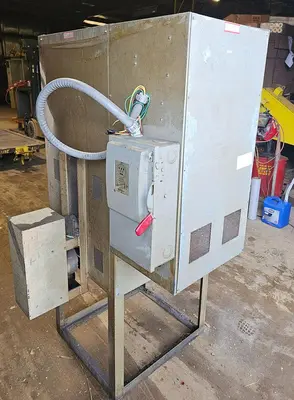

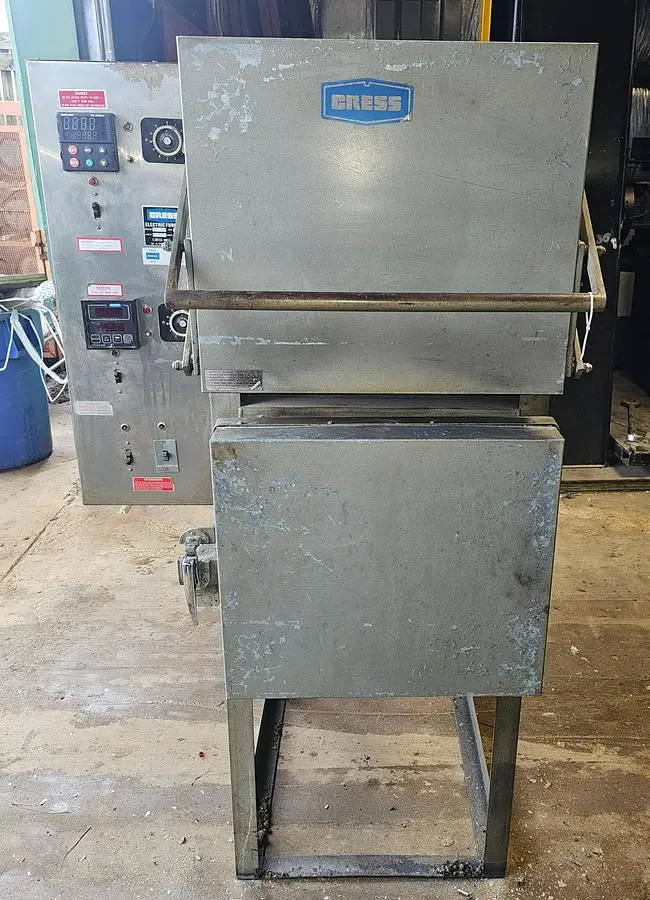

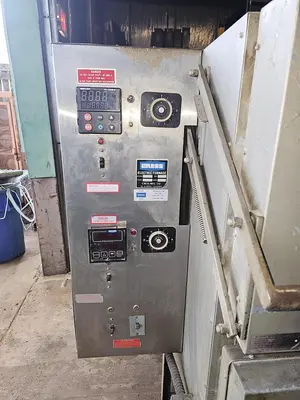

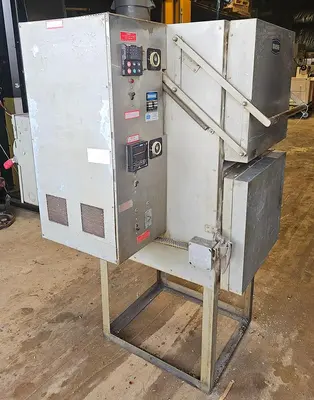

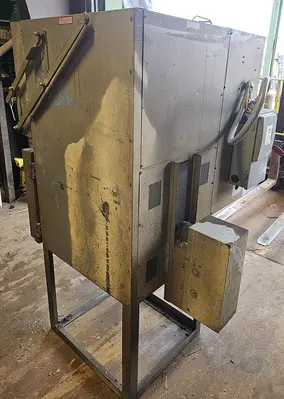

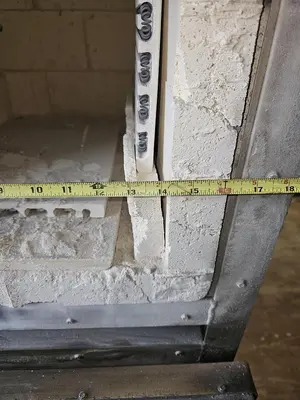

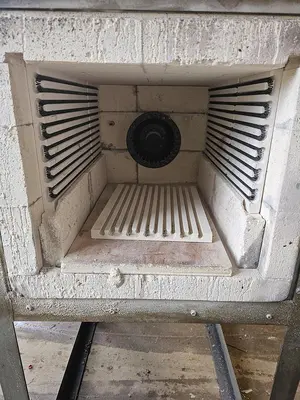

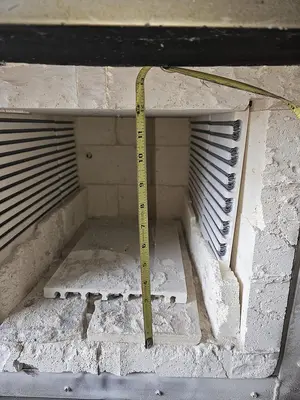

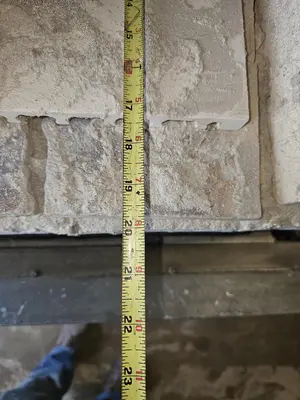

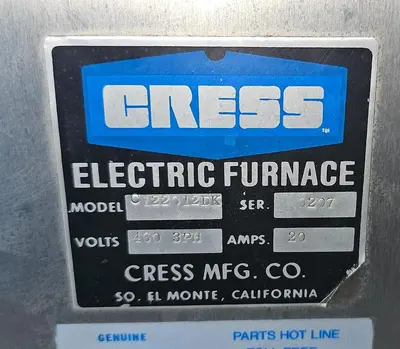

1992 Cress C122012DK High-Temp Dual-Chamber Furnace2500°F Hardening | 1250°F Draw | 460V 3-Phase | S/N 9207Available for immediate acquisition is this Cress C122012DK, a professional-grade dual-chamber electric furnace. This "DK" model is uniquely upgraded for ultra-high temperature operations, reaching 2500°F—well above the standard 2250°F found on base models. This makes it an essential asset for shops hardening high-speed steels (M-series) and other advanced alloys.Technical Specifications Model: C122012DK (Dual Chamber High-Temp)Year of Manufacture: 1992Serial Number: 9207Power: 460V, 3-Phase, 60 Hz | 20 AmpsChamber Dimensions (Upper & Lower): 12" W x 14" H x 20" DUpper Chamber (Hardening): Rated for 2500°F Max Intermittent.Lower Chamber (Draw): Rated for 1250°F Max; features a stainless steel recirculation fan for ±10°F temperature uniformity.Key Features & AdvantagesDual-Zone Efficiency: Perform hardening in the upper chamber and tempering in the lower chamber simultaneously, drastically reducing turnaround time for tool-and-die projects.Premium Insulation: Built with 4-1/2" of high-quality insulating firebrick backed by 2" of 1800°F block insulation for rapid heat-up and maximum energy retention.Advanced "DK" Spec: Unlike standard 220V hobbyist units, this 460V 3-phase machine is built for continuous industrial duty and high-torque thermal cycles.Precision Controls: Equipped with digital microprocessor-based controllers and solid-state relays for chatter-free, precise temperature maintenance.Safety Integrated: Dual door-actuated safety switches automatically disconnect power to the heating elements and fan motor when the doors are opened.Operator Focused: Counter-balanced upper door opens up and away from the operator, keeping the "hot side" of the door directed away from the face and arms.

Max Temperature: 2500*F
S/N: 9207
Amps: 20
