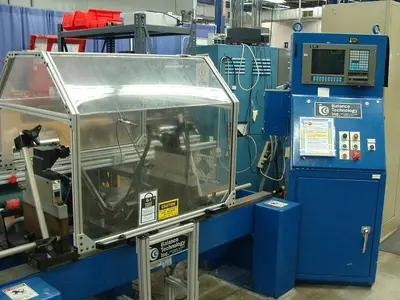

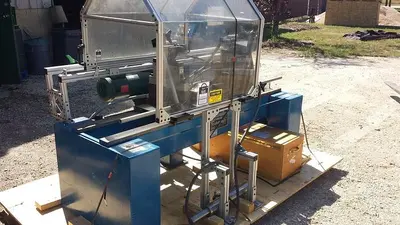

USED 1998 BALANCE TECHNOLOGY INC. H-250

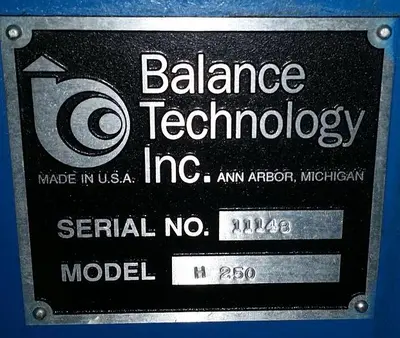

BTI Model H-250 Horizontal Hard-Bearing BalancerModel: H-250 | Serial Number: 11148 | Year: 1998Industrial Precision & ReliabilityThe BTI H-250 is a benchtop, cradle-style balancer engineered for numerically controlled manual balancing. As a hard-bearing machine, it measures the centrifugal forces transmitted to the pedestals rather than displacement, allowing for permanent calibration and significantly reducing setup time between different parts. This system is ideal for high-volume production or diverse repair shop workloads requiring rapid, accurate results.Technical SpecificationsYear of Manufacture: 1998Weight Capacity: Up to 250 lbs (113 kg)Maximum Part Size: 16" between bearings; 10" maximum diameterBalancing Speed: Variable range from 300 to 3,600 RPMSensitivity: High-precision displacement sensitivity of 0.00001"Drive System: 1.56 lb-ft torque motor featuring automatic braking for cycle efficiencyPower Requirements: 115/230 VAC, 1-Phase, 60HzAdvanced Functionality & FeaturesComprehensive Testing Suite: Includes built-in software for Repeatability Tests and Gage R&R screens to display maximum spread and calculate averages automatically.Statistical Analysis: Allows operators to select right/left plane or force/couple unbalance measurements for detailed analysis via histograms and X-Bar/R-Bar charts.Safety & Compliance: Comes equipped with a full plexiglass safety shield to protect operators during high-speed rotation.Data Management: Features an RS-232C interface for seamless data transfer and a logged data menu for copying databases to disk.Dealer Note"This 1998 BTI H-250 (S/N 11148) is a complete system including the original balancing standard, workpiece shaft support stands, and all available manuals. Its hard-bearing design makes it a versatile 'workhorse' that doesn't require the constant re-calibration of soft-bearing alternatives. Whether you are balancing electric motor armatures, fans, or pump impellers, this unit provides the industrial durability BTI is known for."
