USED 1986 ELECTRA 121315
Overview
Description

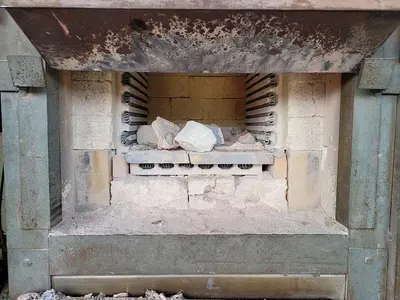

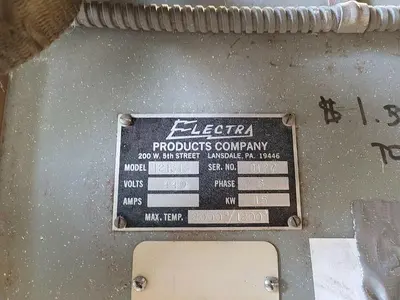

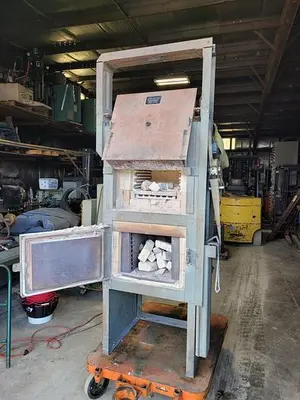

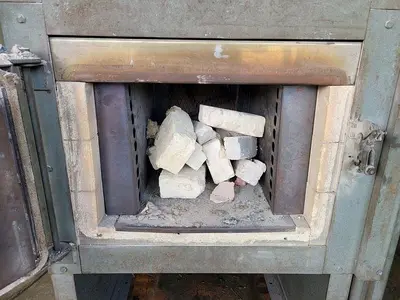

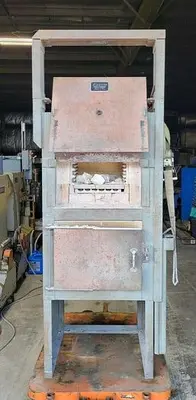

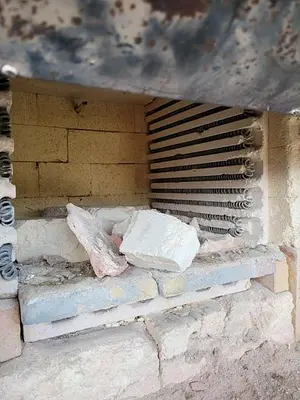

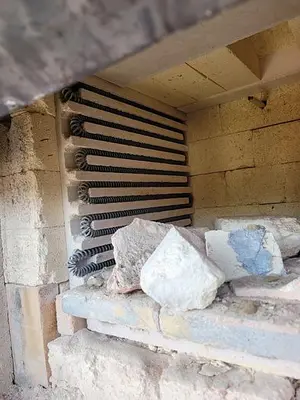

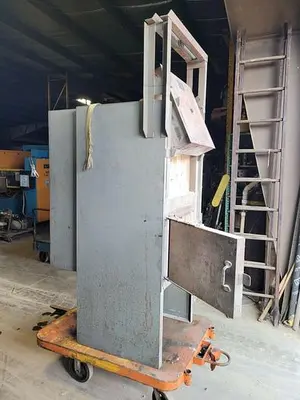

Electra #121315 Dual-Chamber Heat Treat & Draw Furnace15 kW | 2000°F Hardening | 1200°F Draw | S/N 1177Available for acquisition is a heavy-duty Electra #121315 dual-chamber electric furnace. This "over-under" configuration is the industry standard for precision tool-and-die work, featuring a high-heat upper chamber for hardening and a recirculating lower chamber for precise tempering (drawing).Technical SpecificationsYear of Manufacture: 1986Serial Number: 1177Configuration: Dual-Chamber "Piggyback" DesignPower: 15 kW Total | 440V/460V | 3-PhaseUpper Chamber (Hardening): * Max Temp: 2000°FDimensions: 12" W x 14.5" H x 16" DLower Chamber (Draw): * Max Temp: 1200°FDimensions: 13" W x 13" H x 18" DFeatures: Internal recirculation fan for superior temperature uniformity.Condition Report & Value NoteOverall Status: The unit is mechanically sound and was in working condition prior to a recent transit incident.Refractory Work Required: The main upper furnace door requires re-bricking. This was caused by a counter-weight chain failure during transport. The interior chamber brick remains in [Good] condition.Equity Opportunity: This unit is priced to account for the necessary door repair (estimated $800–$1,200 in materials). Production-ready units of this model consistently trade between $7,950 and $9,500.Key FeaturesSpace-Saving Footprint: Two independent controlled chambers in the floor space of one.Independent Controls: Dual digital temperature controllers allow for simultaneous hardening and tempering cycles.Safety Integrated: Equipped with door-actuated safety interlock switches to cut power to heating elements when opened.Industrial Durability: Rugged 1/8" steel casing and low-watt density metallic resistance heating elements for long-service life.
Specifications

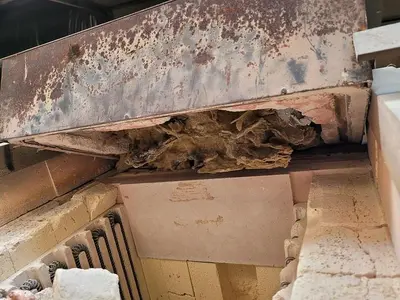

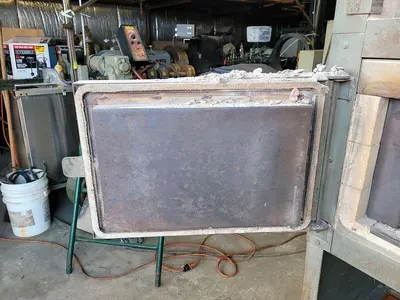

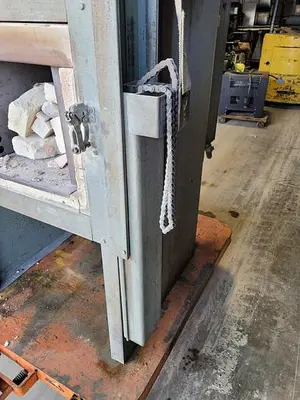

Seller notes: “Used -- in working condition BUT Main furnace door needs to be rebricked due to upper door ... Read moreabout the seller notes“Used -- in working condition BUT Main furnace door needs to be rebricked due to upper door counter-weight chain breaking during transit & causing damage to said door brick.” Read Lessabout the seller notes
Modified item: No
Custom bundle: No
Equipment type: Heat Treat Furnace
* Configuration: Dual-Chamber "Piggyback" Design
* Upper Chamber (Hardening): * Max Temp
