USED 2015 ALMCO 2SF-48DRA

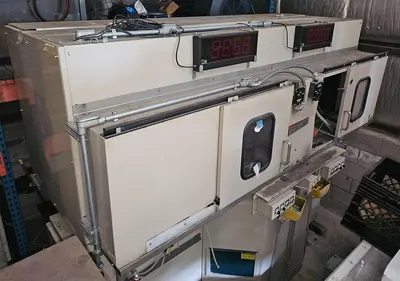

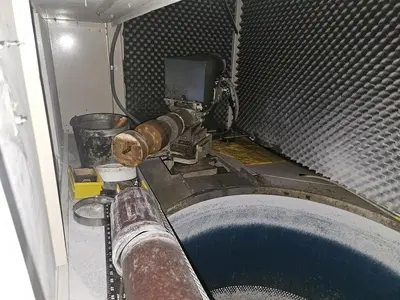

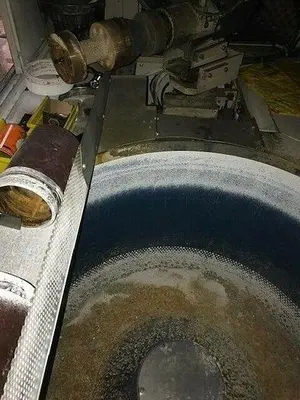

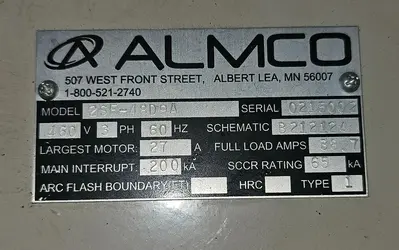

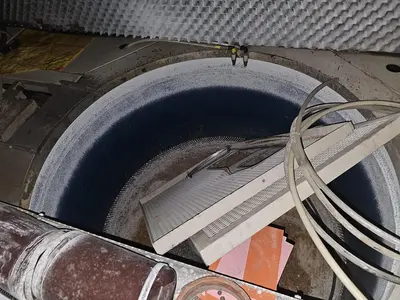

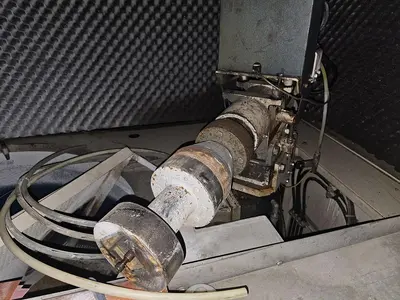

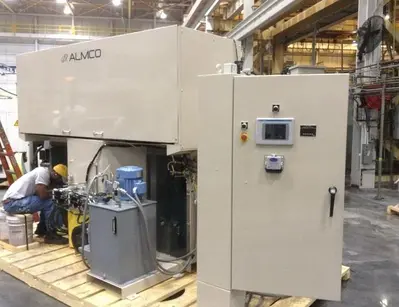

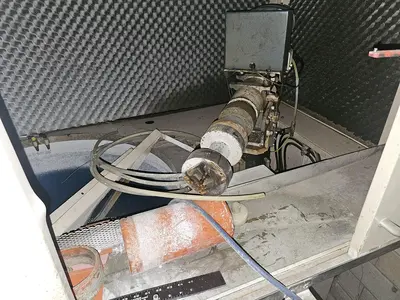

2015 Almco 2SF-48DRA Dual Spindle Finishing SystemHigh-Speed Precision Deburring | Programmable Rotary Actuators | S/N 0215002The Almco 2SF-48DRA is a premier industrial solution for rapid, high-precision deburring and surface finishing. Unlike traditional vibratory bowls that tumble parts together, this Dual Spindle system secures each part individually, eliminating part-on-part impingement and ensuring 100% surface consistency.Equipped with the "DRA" (Dual Spindle, Rotary Actuator) package, this 2015 model is specifically designed for integration with robotic production lines or high-volume manual operations. The spindles pivot precisely into the rapidly moving media stream, providing targeted finishing for complex geometries such as aerospace gears, automotive shafts, and medical implants.Technical SpecificationsModel: 2SF-48DRA (Dual Spindle / Rotary Actuator)Year of Manufacture: 2015 (Serial Number: 0215002)Tub Diameter: 48" Rotating Process TubCapacity: Two (2) independent programmable work-holding spindlesMax Part Diameter: Up to 16"Spindle Speed: Variable 0–20 RPMTub Speed: 300–900 Surface Feet per Minute (SFM)Hydraulic System: Includes Continental Hydraulic Power Unit for spindle actuationElectrical: 460V / 3-Phase / 60Hz (UL 508A Certified Controls)Dimensions: Approx. 120" W x 75" D x 88" H (with enclosure)Key Advantages & FeaturesAutomated Productivity: The Rotary Actuator feature allows the machine to precisely position spindles for robotic loading/unloading, significantly reducing labor costs.Aggressive Cycle Times: By combining tub rotation with spindle movement, this system can achieve in 60 seconds what standard vibratory tumblers take hours to finish.Targeted Finishing: The "DRA" pivoting action allows the abrasive media to penetrate blind holes, internal threads, and intricate teeth that are unreachable in bulk finishing.Zero Impingement: Since parts are held on spindles, there is no risk of parts banging into one another—critical for high-value aerospace or medical components with strict tolerance requirements.High Durability: Features Almco’s signature premium polyurethane-lined tub and a heavy-duty steel frame designed for 24/7 industrial use.

Custom bundle: No
Item type: Deburring Machine
Modified item: No
