USED 2008 GFMESSTECHNIK MIKROCAD 1.8 X 2.4

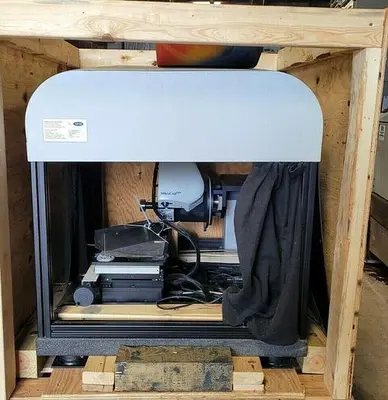

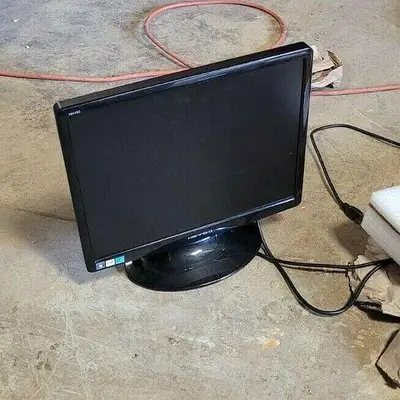

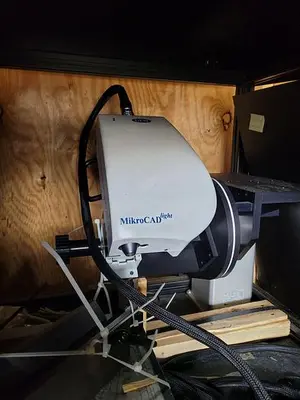

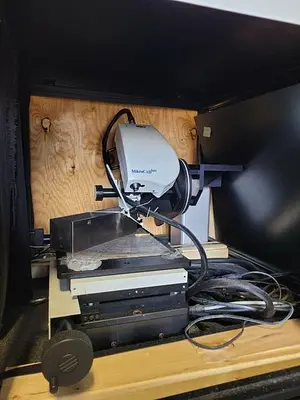

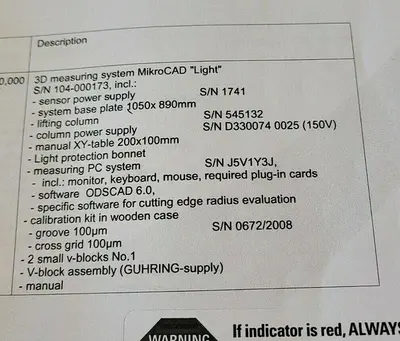

GFMesstechnik MikroCAD 3D Light Scanner (2008)Model: MikroCAD 2.4 x 1.8 | Type: 3D-Messsystem | S/N: 104-000173High-Resolution Micro-MetrologyThe MikroCAD 3D utilizes advanced digital phase-measuring fringe projection (DLP technology) to capture several million data points in seconds. This 2008 model is a specialized tool for quantifying micro-geometries where traditional contact probes fail, making it the industry standard for cutting tool edge inspection, surface roughness, and wear analysis.Technical SpecificationsField of View (FOV): 2.4 mm x 1.8 mm.Technology: Structured light stripe projection (Gray code / Phase-shifting).Resolution: Capable of sub-micron (0.1 µm) vertical resolution for extreme detail.Acquisition Speed: Captures full 3D point clouds in under 10 seconds.Electrical: 115V, Single Phase.Year of Manufacture: 2008.Complete System ComponentsScanner Head: Precision optical unit with high-brightness LED light projection.Integrated CPU: Pre-loaded with the proprietary MikroCAD 3D scanning and analysis suite.Display: Includes a dedicated monitor for real-time visualization of scans.Software Capabilities: Supports 3D surface topology analysis, edge radius measurement (5µm to 100µm), and data export to industry-standard formats.Dealer Note"This MikroCAD system (Year 2008) is a rare find as a complete package. Because it includes the original calibrated computer and software, it avoids the common (and expensive) hurdle of sourcing proprietary drivers for legacy hardware. It is specifically optimized for measuring the tiny, critical geometries of indexable inserts and round tools, providing high-end optical metrology at a fraction of the cost of new systems."
