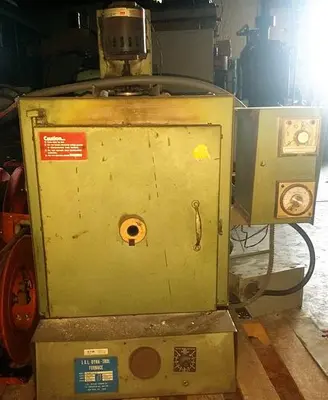

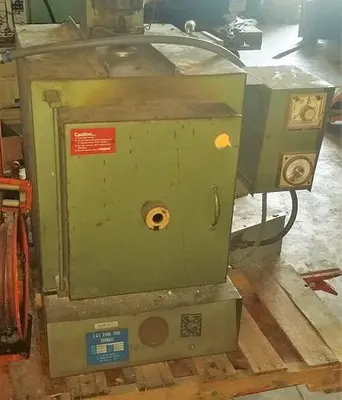

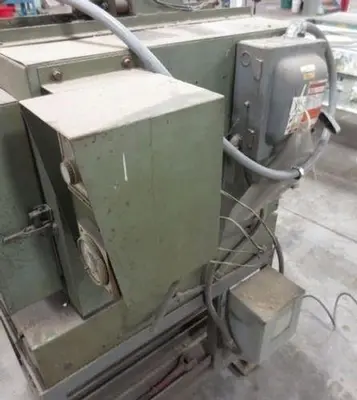

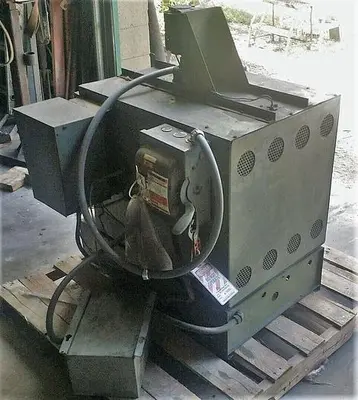

USED 1981 L&L DYNATROL P918H-C24C

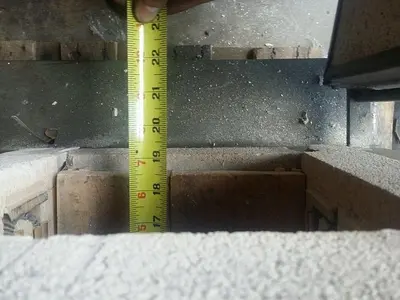

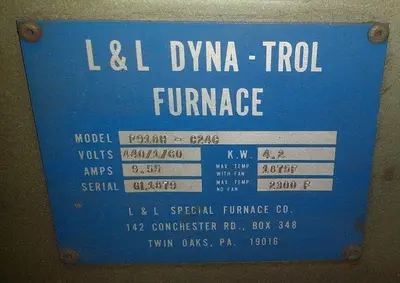

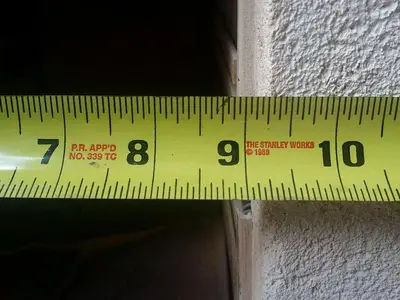

L&L Dynatrol P918H-C24C Industrial Furnace2300°F Hardening | 1875°F Convection Draw | 440V 1-Ph | S/N GL1879Available for immediate acquisition is this L&L Dynatrol P918H-C24C, a complete heat-treat solution in a compact footprint. This unit is uniquely equipped with an integrated recirculation fan, allowing it to function as both a high-heat hardening furnace and a high-uniformity tempering/drawing oven. Manufactured in 1981, this "Heavy Iron" era furnace is engineered for the rigors of tool-and-die and industrial metallurgical applications.Technical SpecificationsModel: P918H-C24CSerial Number: GL1879 (Manufactured 1981)Max Temperature (Hardening): 2300°F (1260°C)Max Temperature (Convection Draw): 1875°F (1024°C)Chamber Dimensions: 9" Wide x 10.75" High x 18.5" DeepElectrical: 440V | Single Phase (1-Ph) | 60 HzAirflow: Forced-air convection fan for superior thermal uniformity at low-to-mid ranges.Door Style: Counterweighted vertical lift (Safety-focused design).Key Performance FeaturesDual-Mode Capability: The integrated convection fan eliminates the need for two separate machines. Use the high-heat mode for hardening tool steels and the fan-assisted mode for precise, uniform drawing and tempering.Legendary L&L Construction: Features a heavy-duty steel cabinet with multi-layered high-temp insulation and high-quality firebrick lining for exceptional heat retention and durability.Space-Saving Footprint: Ideal for professional toolrooms or labs that require industrial-grade power without taking up excessive floor space.Operator Safety: The vertical lift door keeps the "hot face" of the furnace insulation directed away from the operator at all times during loading and unloading.Microprocessor Ready: Designed to work with digital PID controllers for tight temperature tolerance and repeatable process cycles.

Custom bundle: No
Modified item: No
